Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
3-12 Connecting the Router to the Internet
M-10153-01

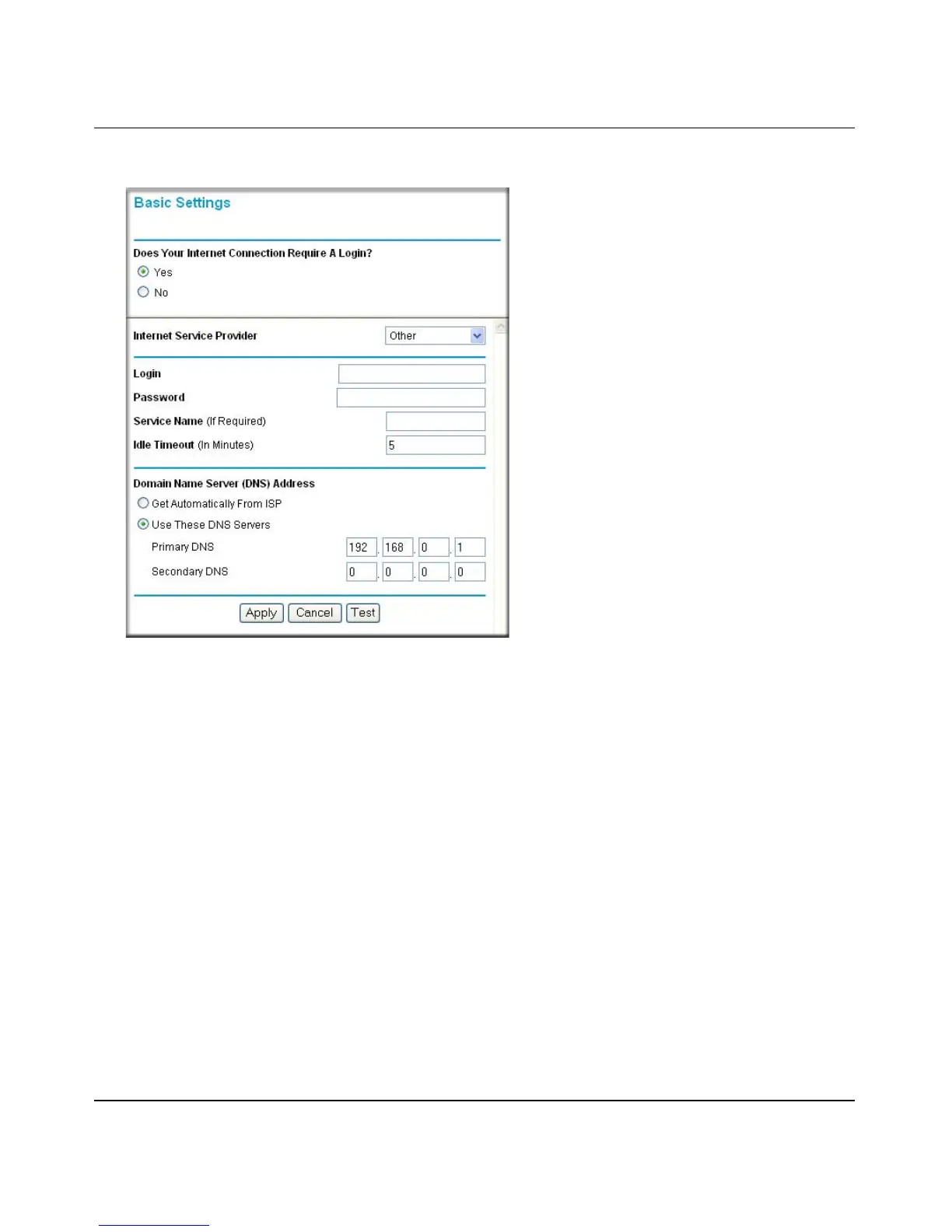

Figure 3-8: Other (PPPoE) menu
To configure your Internet service connection for Other (PPPoE), fill in the following fields:
• Enter the Login and Password as provided by your ISP. These fields are case sensitive.
• To change the login timeout, enter a new value in minutes. This determines how long the
router keeps the Internet connection active after there is no Internet activity from the LAN.
Entering a timeout value of zero means never log out.
• If you know that your ISP does not automatically transmit DNS addresses to the router during
login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS
Server. If a Secondary DNS Server address is available, enter it also.
Note: If you enter DNS addresses, restart your computers so that these settings take effect.
• Click Apply to save your settings.
• Click Test to verify that your Internet connection works. If the NETGEAR Web site does not
appear within one minute, refer to Chapter 8, “Troubleshooting”.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
