NETGEAR WGU624 User Manual

Reference Manual for the Double 108 Mbps Wireless Firewall Router WGU624
Wireless Configuration 4-5
M-10153-01

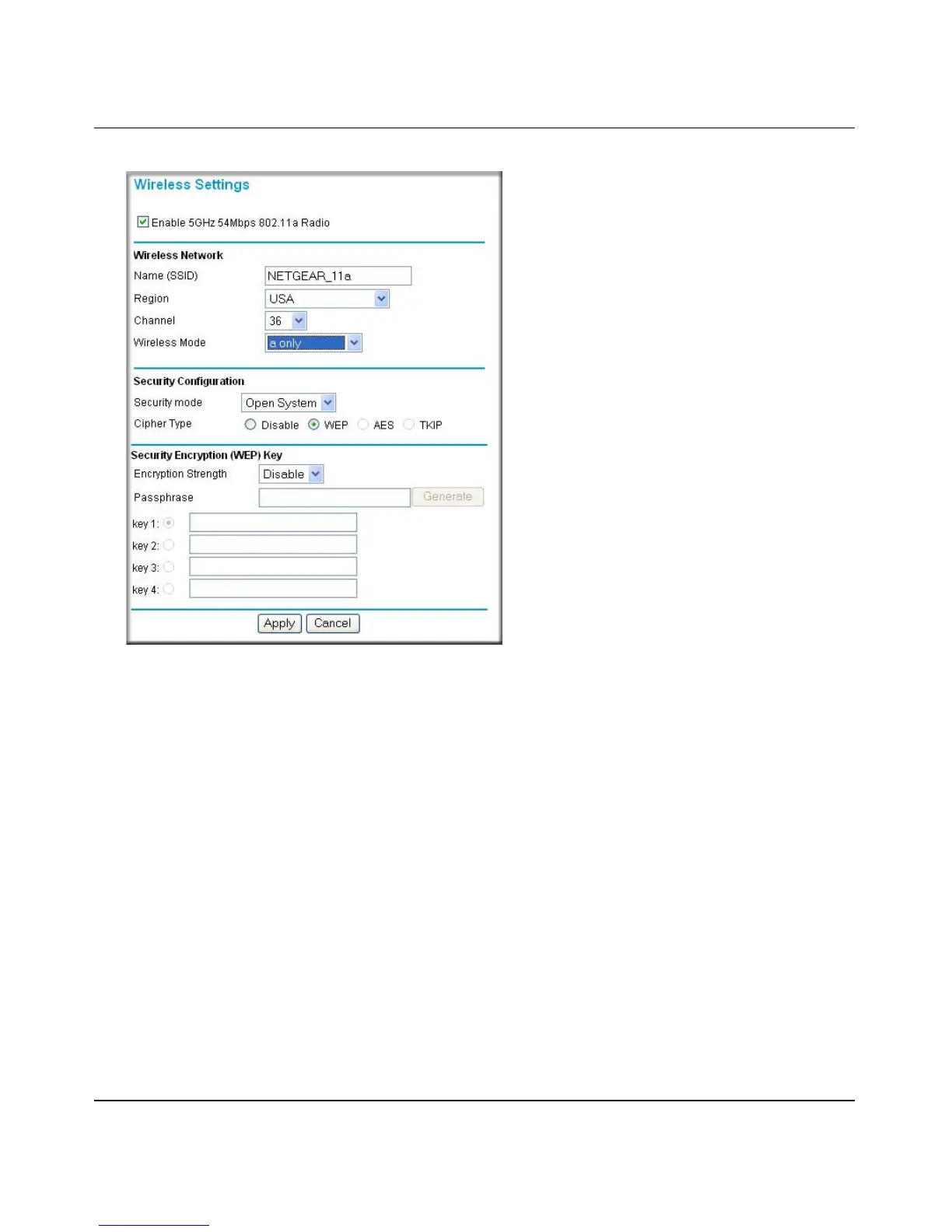

Figure 4-2: Wireless 802.11a Settings menu
The following options are available for the 802.11a configuration:
Name (SSID). The SSID is also known as the wireless network name. Enter a value of up to 32
alphanumeric characters. In a setting where there is more than one wireless network, different
wireless network names provide a means for separating the traffic. Any device you want to
participate in a particular wireless network must use this SSID for that network. The WGU624
default SSID is: NETGEAR_11a.
Region. This field identifies the region where the WGU624 can be used. It may not be legal to
operate the wireless features of the wireless router in a region other than one of those identified in
this field.
Channel. This field determines which operating frequency will be used. It should not be necessary
to change the wireless channel unless you notice interference problems with another nearby access
point. For more information on the wireless channel frequencies please refer to “Wireless
Channels” on page D-7.

NETGEAR WGU624 Specifications

Power

power adapter voltage	5V
power adapter current	2.8 A

Networking and Connectivity

network standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11a
ports	Five10/100 (1 Internet, & 4 LAN) ports
operating frequencies	2.4 GHz and 5.0 GHz

Weight and Dimensions

dimensions	6.9 x 1.1 x 4.7 in (175.3 x 27.94 x 119.4 mm)
weight	.7 lbs (.3 kg)
max range (indoor)	400 ft
