Table 4-2. Router Statistics Fields
Field Description
WAN, LAN, or WLAN The statistics for the WAN (Internet), LAN (local), and wireless LAN (WLAN)
ports. For each port, the screen displays the following:
• Status. The link status of the port.
• TxPkts. The number of packets transmitted since reset or manual clear.
• RxPkts. The number of packets received since reset or manual clear.
• Collisions. The number of collisions since reset or manual clear.
• Tx B/s. The current line utilization—percentage of current bandwidth used.
• Rx B/s. The average line utilization.
Up Time The time elapsed since the last power cycle or reset.
ADSL Link Downstream
or Upstream
The statistics for the upstream and downstream ADSL link. These statistics will be
of interest to your technical support representative if you are having problems
obtaining or maintaining a connection.
Connection Speed Typically, the downstream speed is faster than the upstream speed.
Line Attenuation The line attenuation increases the further you are physically located from your
ISP’s facilities.
Noise Margin The signal-to-noise ratio and is a measure of the quality of the signal on the line.
Poll Interval The interval at which the statistics are updated in this window. Click Stop to
freeze the display.
Wireless-N 150 ADSL2+ Modem Router DGN1000 User Manual
4-8 Managing Your Network
v1.1, January 2010
Showing the Connection Status
In the Router Status screen, click the Connection Status button to display a screen similar to the
one in the following figure:

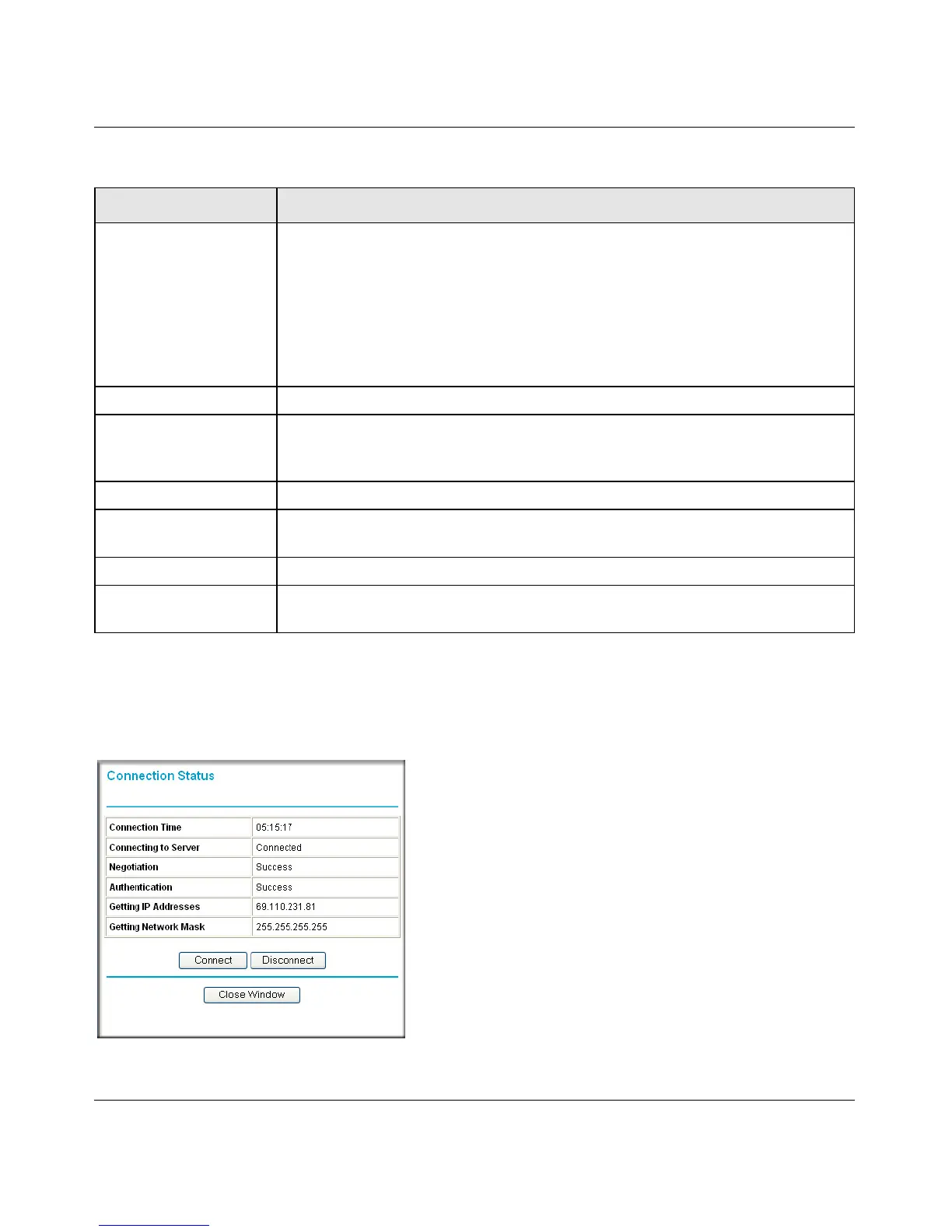

Figure 4-7
