NETGEAR WN802T User Manual

NETGEAR Wireless-N Access Point WN802T v2 Reference Manual
Management 4-13
v1.0, September 2008
2. Make the required changes or selections to the Wireless LAN Parameters section, based on the
field descriptions outlined earlier.
3. Click Apply for your changes to take effect.
Configuring the RADIUS Server Settings
RADIUS (Remote Authentication Dial In User Service) is a protocol for managing
Authentication, Authorization and Accounting (AAA) of multiple users in a network. A RADIUS
server stores a database of user information, and can validate a user at the request of a gateway
device in the network when a user requests access to network resources. The wireless access point
can relay login information from wireless clients to an external RADIUS server for AAA services.
In an environment with many users, using a RADIUS server allows centralized control for
individual users, providing better network security than using a single preshared key for all users.
The RADIUS Server Settings fields are described in Table 4-3.
To configure the RADIUS Server Settings:
1. Select Security under the main Configuration tab, then select Advanced from the side menu.
The Radius Server Settings screen displays, as in Figure 4-10.
2. Enter the following RADIUS Server settings:

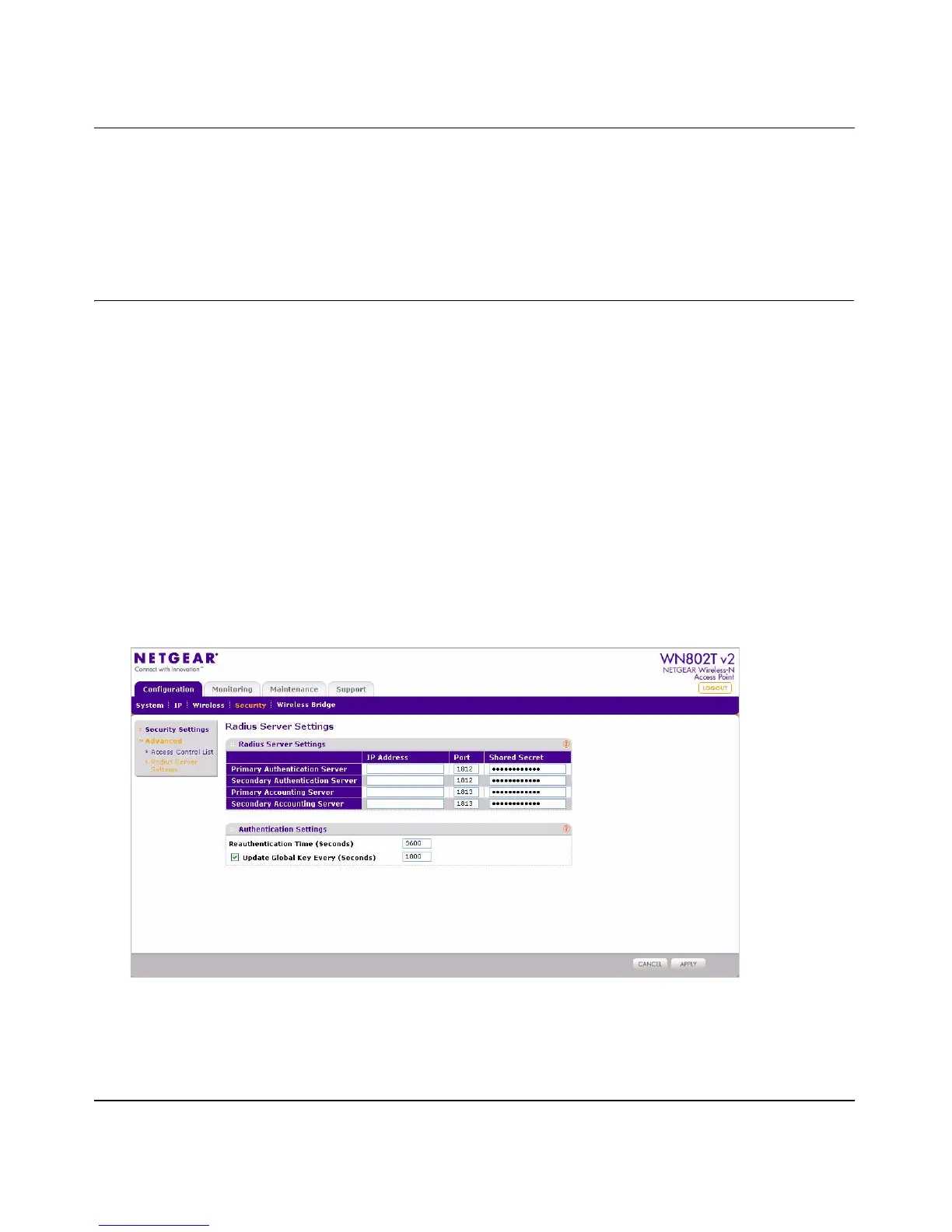

Figure 4-10 RADIUS server settings

NETGEAR WN802T Specifications

General

Maximum data transfer rate	300 Mbit/s
MAC address filtering	Yes
Minimum system requirements	-Internet Explorer 6.0; -4 GHz 802.11n / 2.4 GHz 802.11 b/ g;
Compatible operating systems	Microsoft Windows 98, Me, 2000, XP, Mac OS, UNIX, / Linux

Weight and Dimensions

Weight	560 g
Dimensions (WxDxH)	225.5 x 172 x 39 mm
