VMC 1100 User Manual
Chapter 3: Jumpers and Connectors

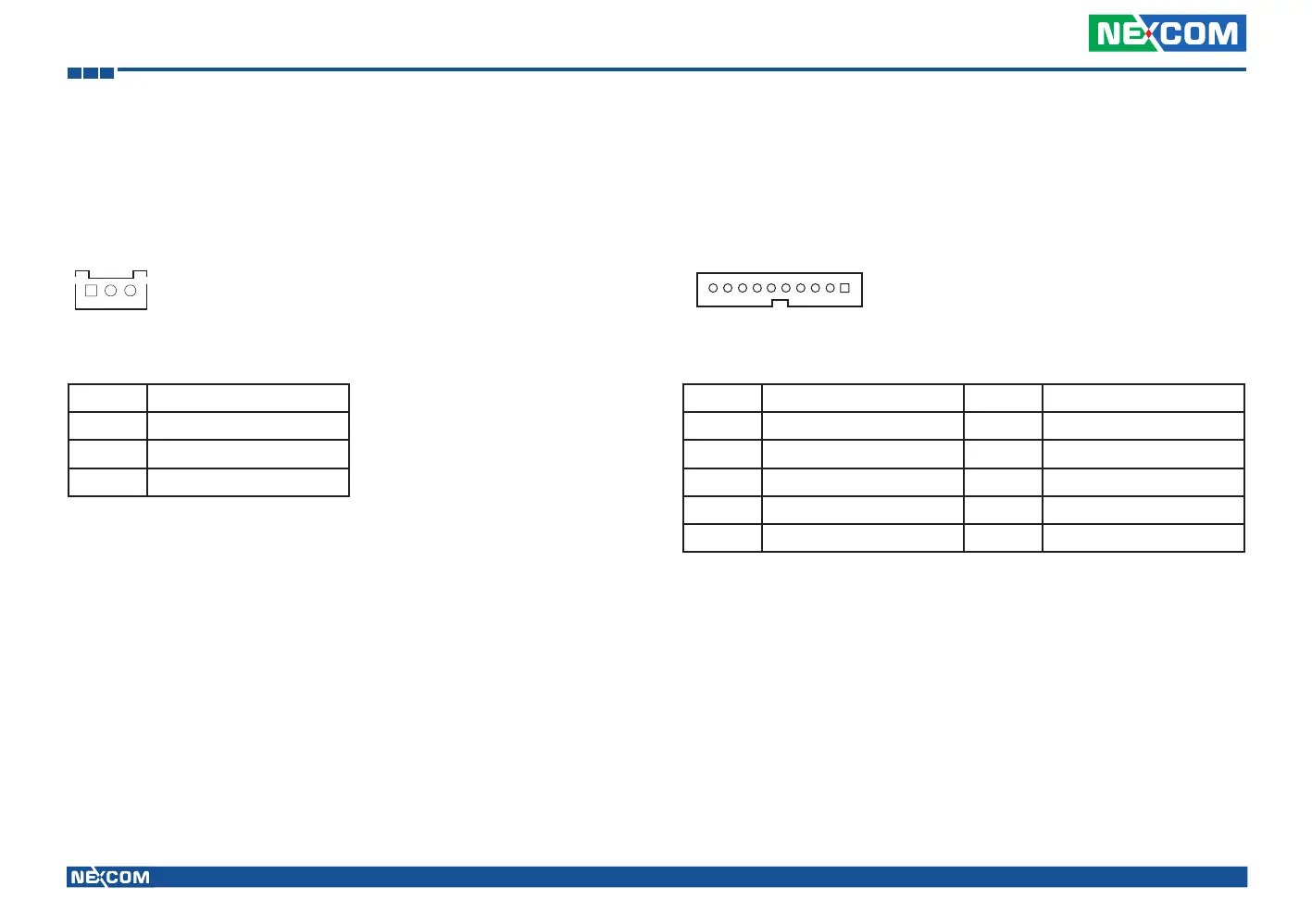

EC Debug COM Connector
Connector size: 1x3 3-pin header, 1.0mm pitch
Connector location: J6
Pin Definition
1 RX
2 GND
3 TX
1 3
Pin Definition Pin Definition
1 GND 2 PCIRST#
3 33M_CLK 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 VCC3 10 VCC3
Port 80 Debug Connector
Connector size: 1x10 10-pin header, 1.0mm pitch
Connector location: J8
10 1
