VMC 1100 User Manual
Chapter 3: Jumpers and Connectors

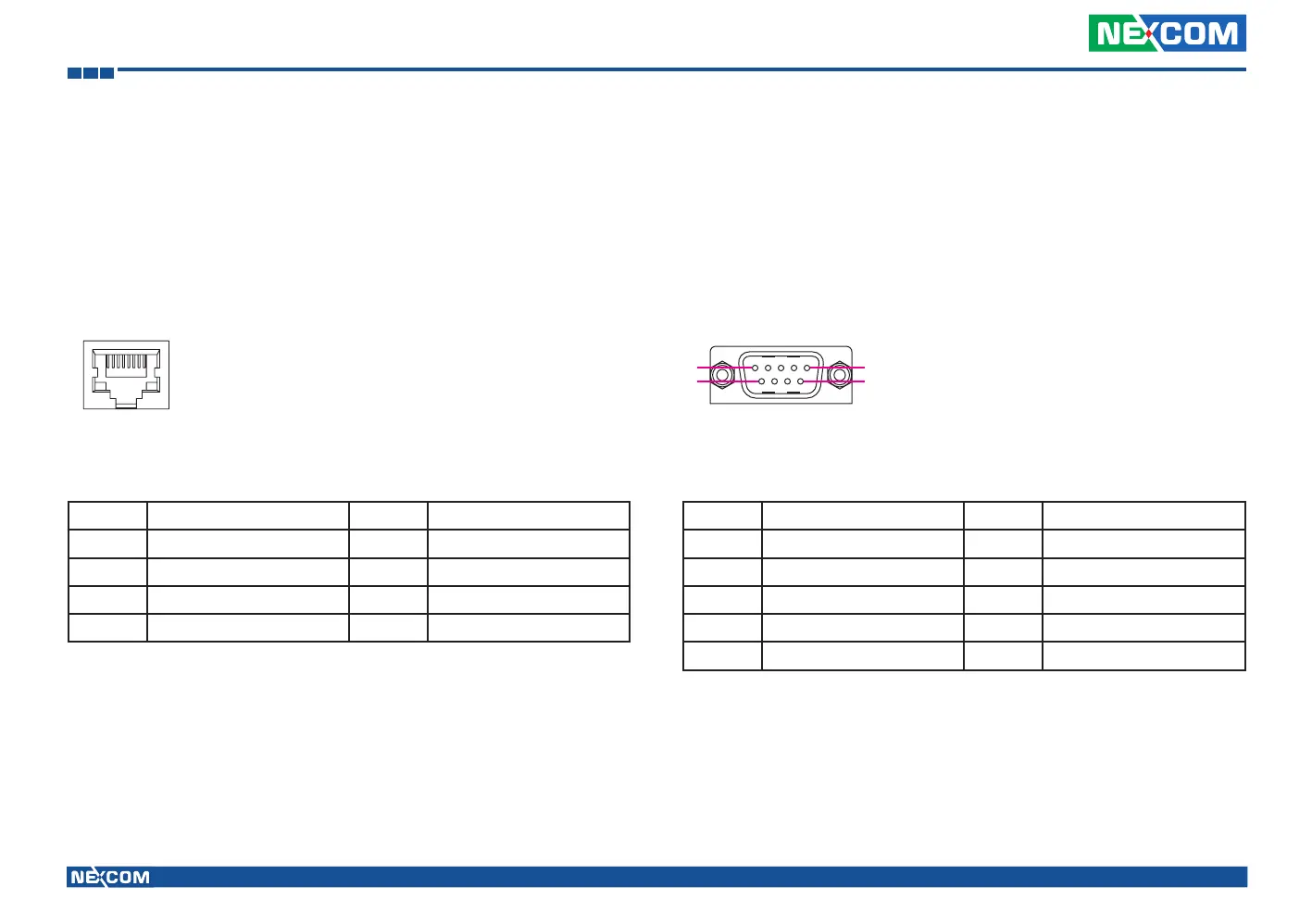

External Connectors
RS232 Connector
Connector size: RJ45 port
Connector location: CON1
Pin Definition Pin Definition
1 COM1-PWR 2 RS232_RXD
3 RS232_TXD 4 RS232_DTR
5 GND 6 RS232_DSR
7 RS232_RTS 8 RS232_CTS
VMC 1100 RS485/CAN Connector
Connector size: DB-9 port, 9-pin D-Sub
Connector location: CN1
Pin Definition Pin Definition
1 GND 2 COM_RX_485TX+
3 RS-485TX- 4 COM_TX
5 GND 6 CAN1-H
7 CAN1-L 8 CAN2-H
9 CAN2-L
81
1 5
96
