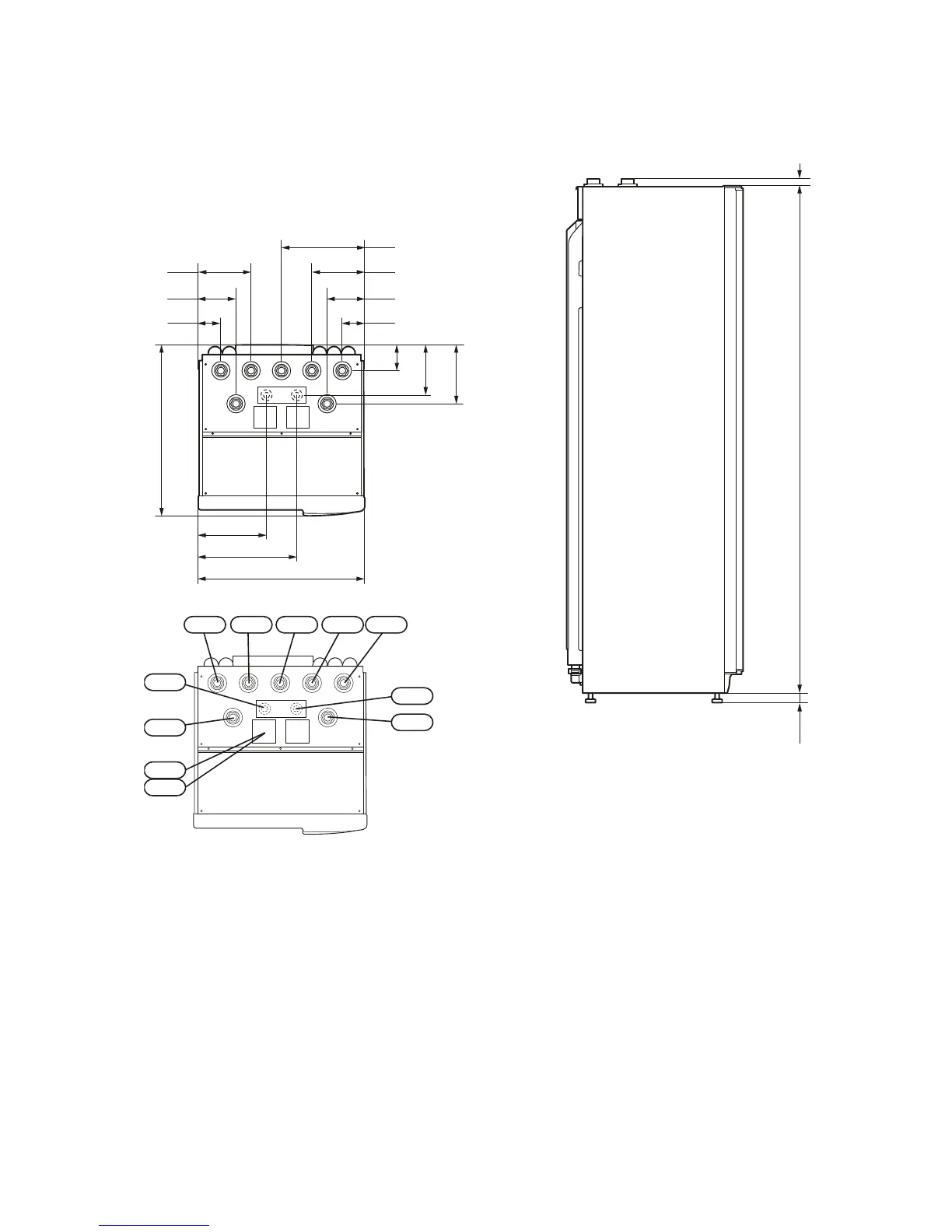

Dimensions and pipe connec-
tions
600
355
245
615
95
185
215
80
135
190
80
135
190
300
XL1
XL30XL2
XL18
XL3XL4 XL9
XL8
XL19
PF1
PF3
20
178030-50
Pipe connections
Connection, heating medium flow line G20 int.XL1
Connection, heating medium return line G20 int.XL2
Connection, cold water G20 int.XL3
Connection, hot water G20 int.XL4
Connection, docking in heating medium G20 int.XL8
Connection, docking out heating medium G20
int.
XL9
Connection, docking in high temp Ø22 mmXL18
Connection, docking out high temp Ø22 mmXL19
Connection, expansion vessel G20 int.XL30
NIBE™ VVM 310Chapter 4 | Pipe connections12
