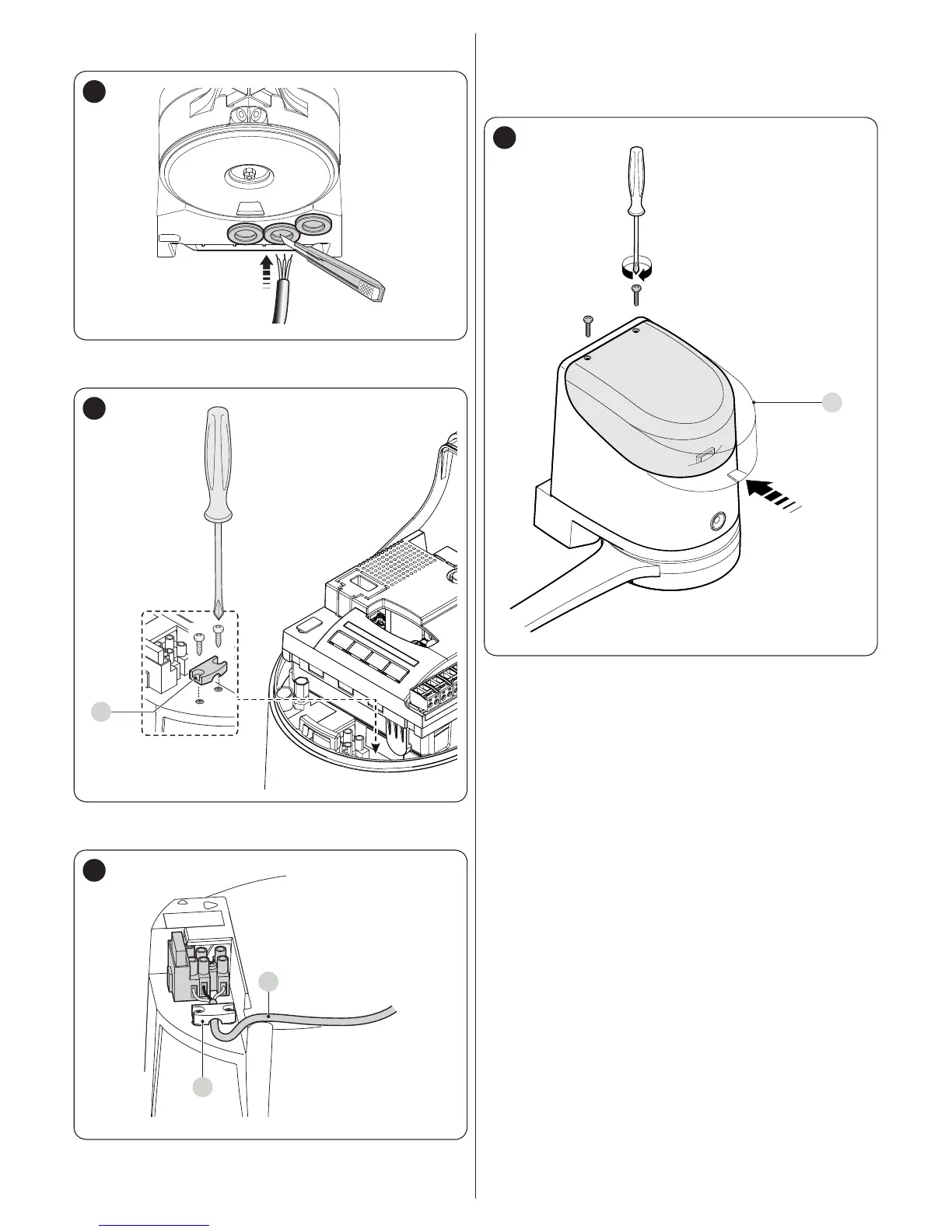

2. pass the power cable and the other electrical cables
through the hole on the lower part of the gearmotor
23
3. rst connect the motor’s power cable with the control unit
HO7124: loosen the cable clamp (B)
B
24
4. connect the power cable (C) and lock it in place with the
cable clamp (B)
C
B
25
5. use the same procedure to connect the power cable to
the motor without the control unit HO7224
6. connect the cables of any supplementary devices, by re-
ferring to “Figure 27” and to the “Photocells” paragraph
7. close the covers of the gearmotor.
