ENGLISH – 3
– The manufacturer declines all liability for damages to
property, objects or people resulting from failure to
observe the assembly instructions. In such cases, the
warranty for material defects shall not apply.
– The weighted sound pressure level of the emission A is
lower than 70 dB(A).
– Cleaning and maintenance reserved for the user must
not be carried out by unsupervised children.
– Before working on the system (maintenance, cleaning),
always disconnect the product from the mains power
supply.
– Inspect the system frequently, in particular the cables,
springs and supports to detect any imbalances and
signs of wear or damage. Do not use the product if it
needs to be repaired or adjusted, because defective
installation or incorrect balancing of the automation can
lead to injuries.
– The packing materials of the product must be disposed
of in compliance with local regulations.
– Keep persons away from the gate when it is manoeu-
vred using the control elements.
– When operating the gate, keep an eye on the automat-
ed mechanism and keep all bystanders at a safe dis-
tance until the movement has been completed.
– Do not operate the product if anyone is working near-
by; disconnect its power supply before permitting such
work to be done.
– If the power cable is damaged, it must be replaced by
the manufacturer or by an appointed servicing compa-
ny or similarly qualied person in order to prevent any
form of risk.
1.2 INSTALLATION WARNINGS
– Prior to installing the drive motor, check that all me-
chanical components are in good working order and
properly balanced, and that the automation can be ma-
noeuvred correctly.
– If the gate being automated has a pedestrian gate, the
system must be equipped with a control device that in-
hibits the motor’s operation when the pedestrian gate
is open.
– Make sure that the control elements are kept far from
moving parts but nonetheless directly within sight. Un-
less a selector is used, the control elements must be
installed at least 1.5 m above the ground and must not
be accessible.
– If the opening movement is controlled by a re-sensing
system, make sure that any windows larger than 200
mm are closed using the control elements.
– Prevent and avoid any form of entrapment between the
moving and xed parts during the manoeuvres.
– Permanently afx the label concerning the manual ma-
noeuvre near its actuating element.
– After installing the drive motor, make sure that the
mechanism, protective system and all manual manoeu-
vres function properly.
PRODUCT DESCRIPTION AND
INTENDED USE
2
2 PRODUCT DESCRIPTION AND INTENDED USE
HOPP is a series of gearmotors with articulated arm and ex-
ternal assembly, which can be used to automate residential or
industrial swing gates or doors. They are equipped with a sturdy
anti-shear aluminium arm and are ideal for intensive use.
The main part of the automation consists of one or more electro-
mechanical gearmotors (depending on the number of leaves to
be automated), each equipped with a direct-current motor and
a gear reducer with spur gears.
The HO7124 gearmotor is equipped with a control unit that man-
ages its operation.
The control unit is congured for being connected to the various
devices belonging to the Opera System, Bluebus system and
the Solemyo solar power system.
The control unit can also house a back-up battery (model PS124,
optional accessory) which, in case of a blackout, allows the au-
tomation to carry out certain manoeuvres.In the event of power
outage, it is still possible to move the gate leaf by unlocking the
gearmotor with the appropriate key (see the “Manually unlock-
ing and locking the gearmotor” paragraph).
The automation allows for installing various accessories to in-
crease its functions and improve safety.
a
Any use of the product other than the intended use
described is not allowed!
2.1 LIST OF CONSTITUENT PARTS

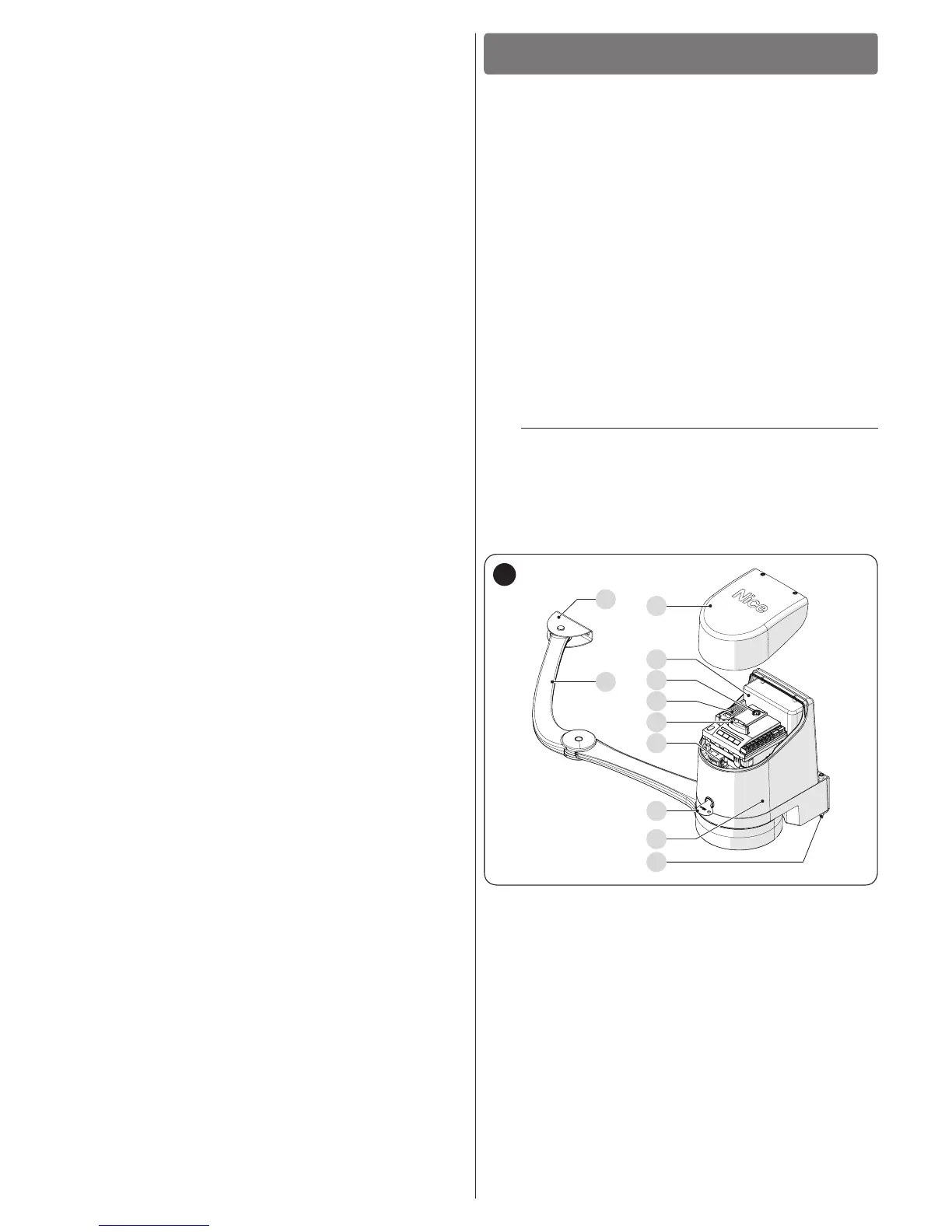

“Figure 1” shows the main parts making up the HO7124 gear-
motor.
A
B
C
D
E
F
G
H
