ENGLISH – 25
9.3 CONNECTING AND INSTALLING THE BACK-
UP BATTERY
f
The electrical connection of the battery to the con-
trol unit must be made only after completing all the
installation and programming stages, as the battery
is an emergency power supply.

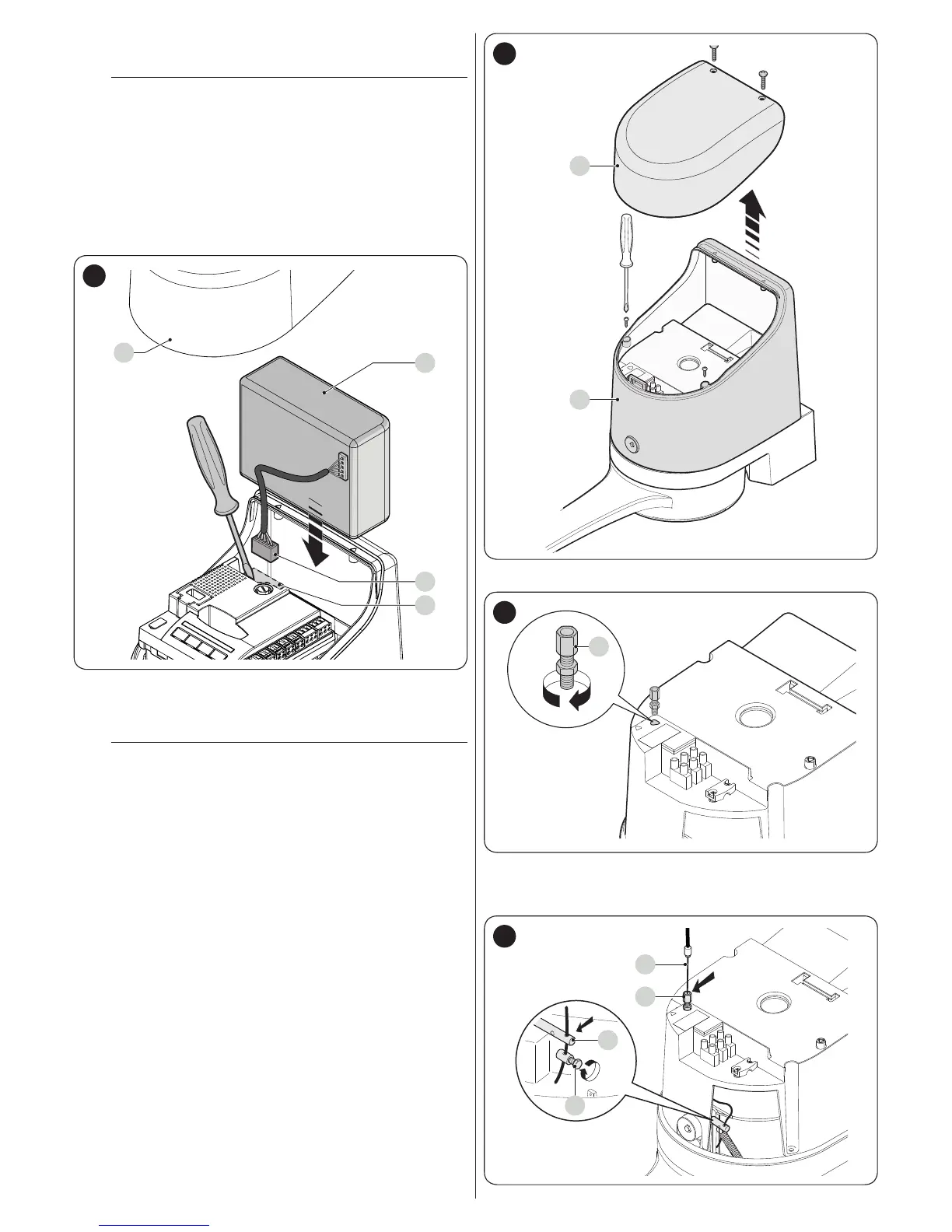

To install and connect the battery:
1. remove the cover (A)
2. slide the battery (B) into its housing
3. remove the plastic protection (C) with the aid of a screw-
driver
4. insert the relative connector (D) on the control unit.
A
B
D
C
45
9.4 CONNECTING THE EXTERNAL UNLOCKING
SYSTEM KIO
a
Kio must be connected to the gearmotor that drives
the leaf that starts moving rst (when the gate is
closed).
For the connection, proceed as follows:
1. remove the cover (A) and the plastic casing (B)
A
B
46
2. insert the pin (C) through the unlocking shaft hole
C
47
3. insert the steel cable (D) rst through the screw (C), then
through the appropriate hole (E) and through the pin (F)
4. lock the cable in place by tightening the pin (F)
E
F
D
C
48
