3.5 INSTALLING THE GEARMOTOR
a
Incorrect installation may cause serious physical
injury to the person working on the system or to its
future users.
Before starting to assemble the automation, com-
plete the preliminary checks described in the “Pre-
installation checks” and “Product usage limits”
paragraphs.

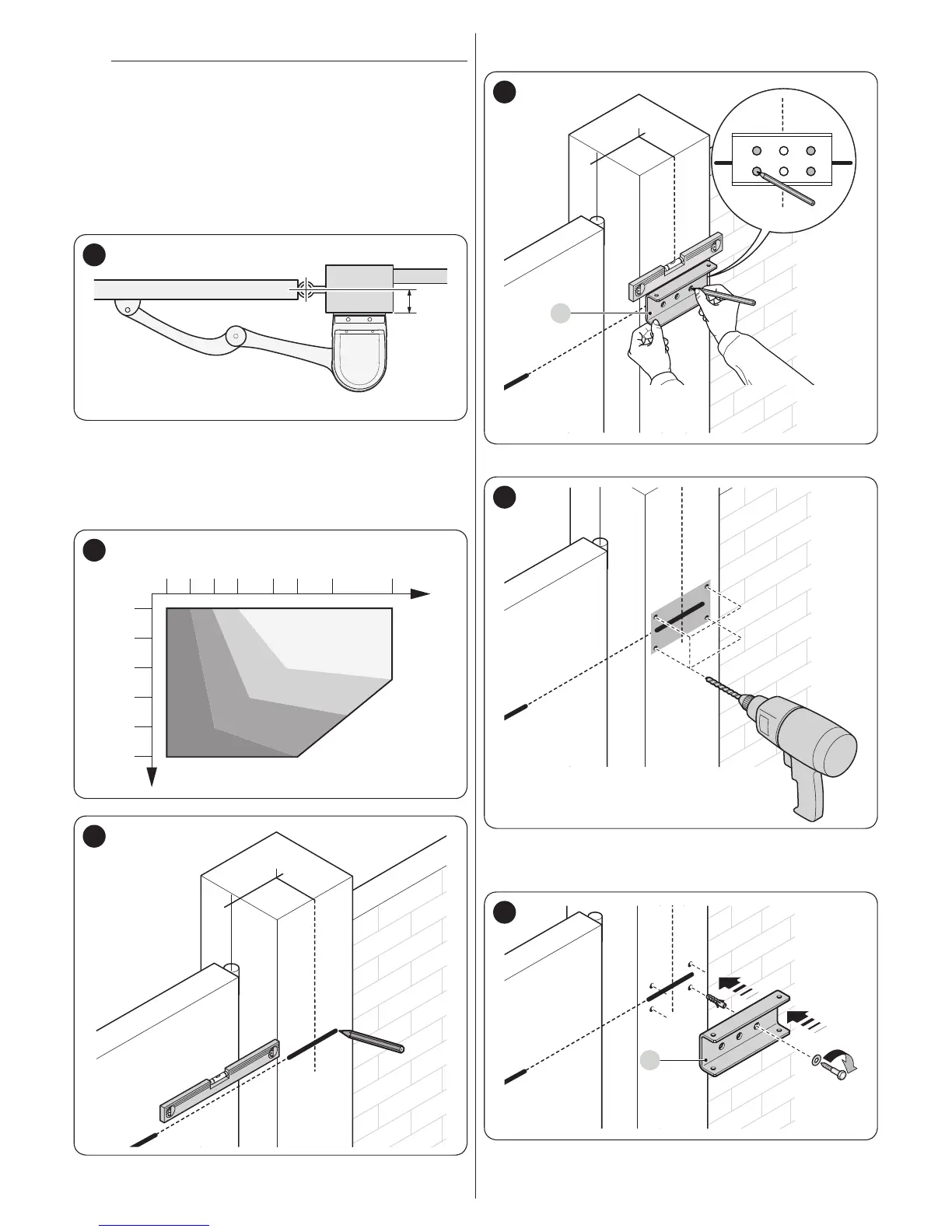

To install HOPP:
1. measure the distance (A)
A
7
2. move the leaf to the desired maximum opening position
and check the resulting opening angle
3. with the value of distance (A) and the opening angle
found, using the graph to determine the distance (B). For
example: if (A) is 100 mm and the desired angle is equal
to 100°, distance (B) will measure roughly 180 mm
90°-95°
95°-100°
100°-105°
150
200
250
8
B
9
4. use the xing bracket (C), in the horizontal position, as a
template to determine the position of the four xing holes
B
C
10
5. drill the bracket in the marked positions
11
6. attach the xing bracket (C) of the gearmotor to the wall
using adequate wall plugs, screws and washers (not sup-
plied)
x 4
C
12
