8 – ENGLISH

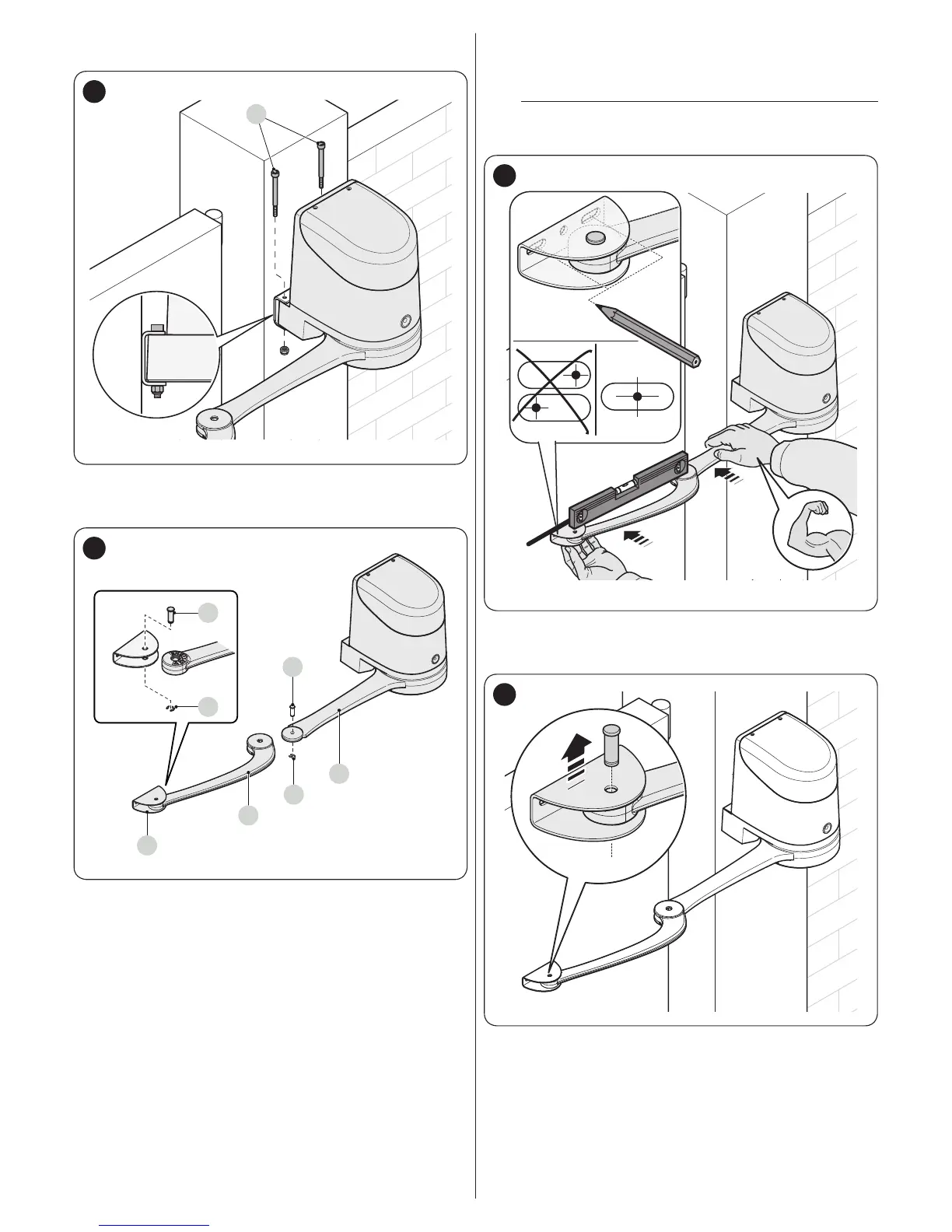

7. attach the gearmotor to the bracket using the two screws
M4,8x13 (D) provided
D
13
8. attach the curved arm (E) to the straight arm (F) using the
pin (G) and retaining ring (H). likewise, attach the xing
bracket for the gate leaf (I) to the curved arm (E)
F
H
E
G
G
H
14
9. unlock the gearmotor manually (see paragraph “Manually
unlocking and locking the gearmotor“)
10. decide where to attach the bracket to the gate leaf, by
extending the gearmotor arms as far as possible
m
It is important to position the bracket at the farthest
point with respect to the position of the gearmotor.
OK
OK
15
11. drill the leaf
12. separate the xing bracket from the curved arm by remov-
ing the retaining ring and the relative pin
16
