8 – English
m - slide the gate by hand and, using the pinion as a refer-
ence, secure the other sections of the rack

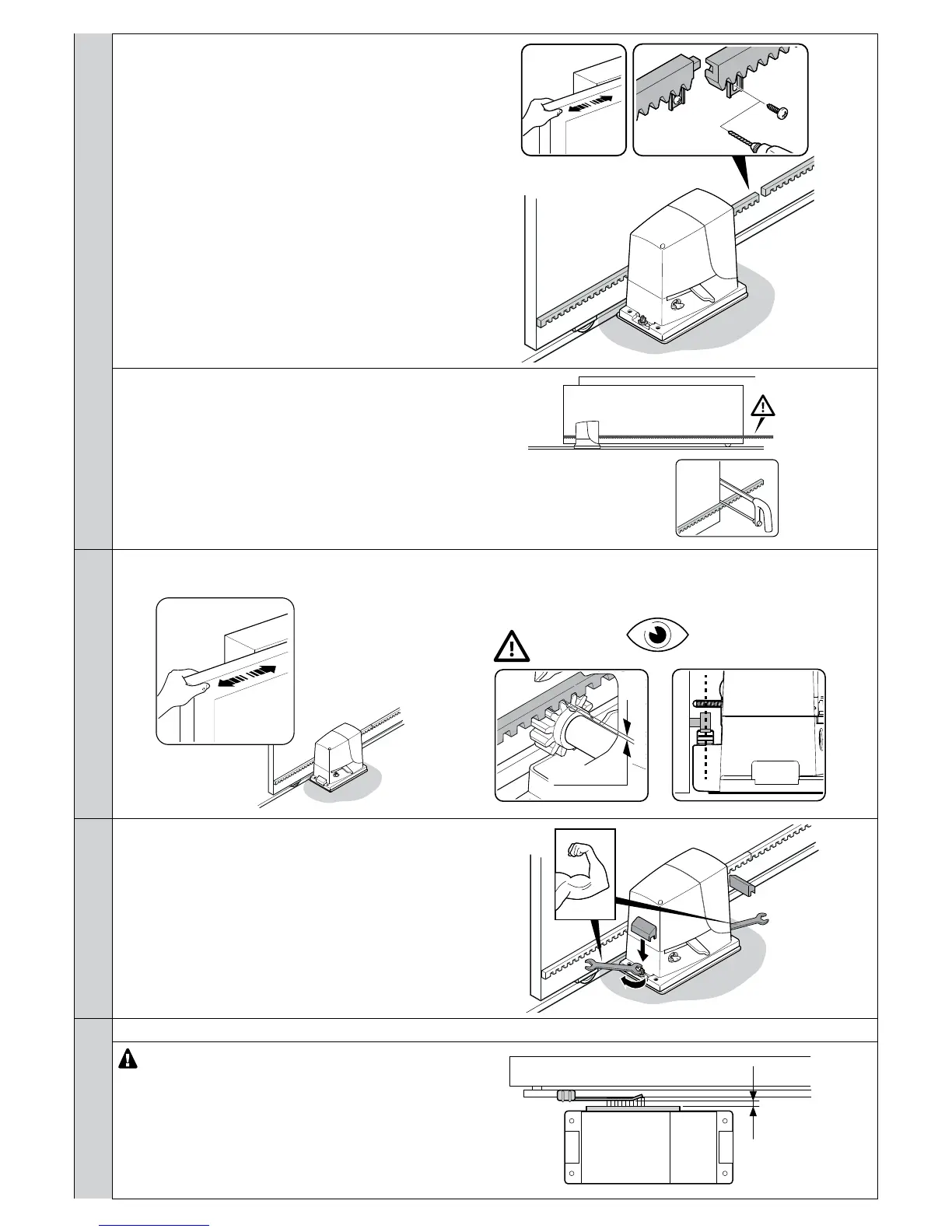

06. Slide the gate open and closed by hand to check that the rack is properly aligned with the pinion.
N.B.: make sure that there is a gap of 1–2 mm between the rack and pinion for the entire length of the gate
1÷2 mm
07. Strongly tighten the nuts for xing the gearmotor to the
foundation plate and cover the nuts with the relevant caps
08. Secure the OPEN and CLOSE limit switch bracket: perform the same operations for both limit switches
For the RB600P and RB1000P versions with induc-
tive proximity limit switch, the optimal distance of the
bracket is between 3 and 8 mm
3–8 mm
