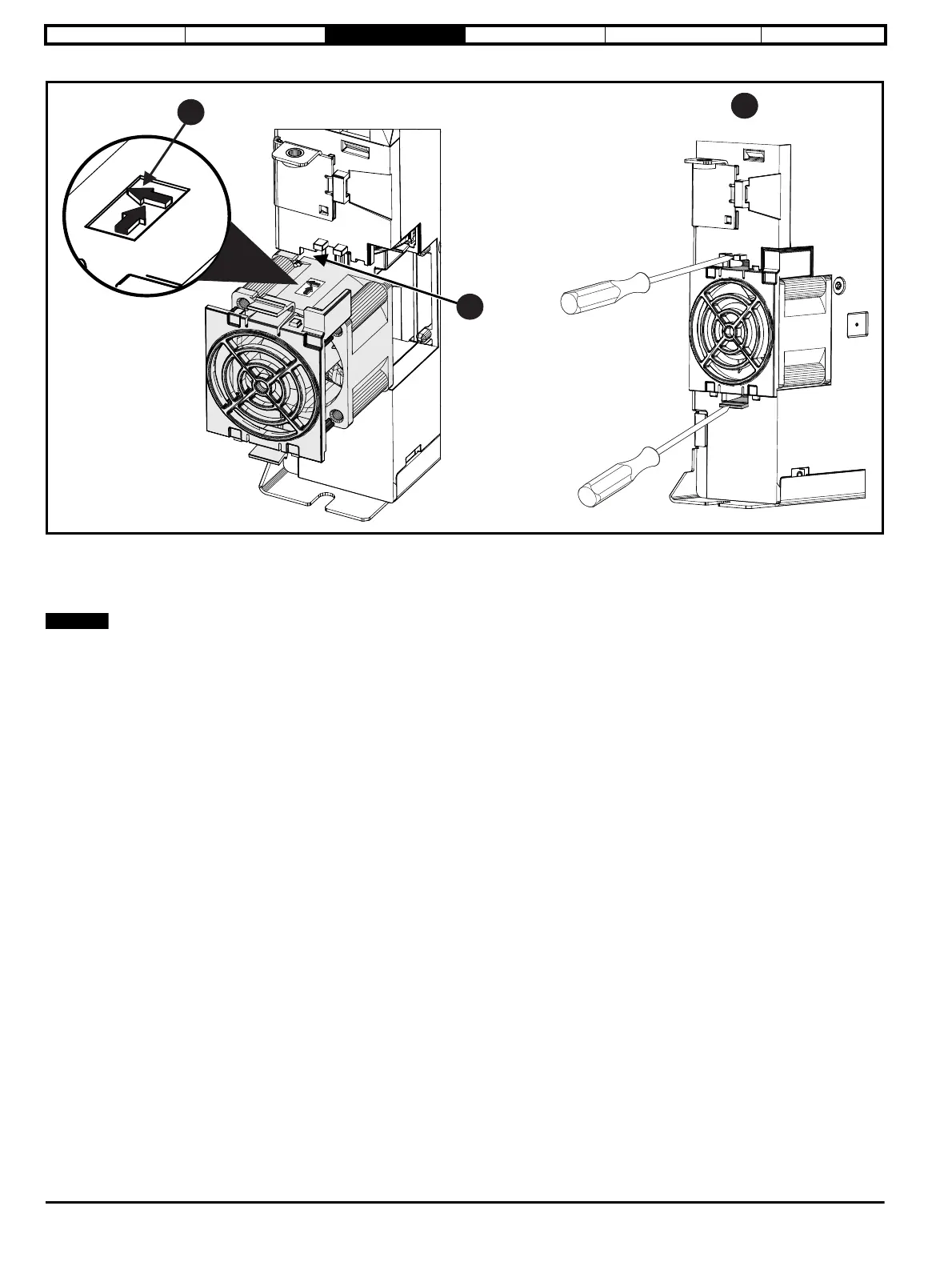

Figure 3-29 Re-fitting frame 1 and 2 cooling fan assembly
1. To ensure the fan is correctly orientated the airflow direction markings (on the fan) must be positioned as shown in Figure 3-29.
2. Position the fan supply cable so that it sits in the recess between the top of the fan assembly and the plastic housing of the drive.
3. Use a flat bladed tool to fully re-engage the clips into location by pushing on the end of the clips.
Ensure clips are fully engaged in order to prevent air leakage.
