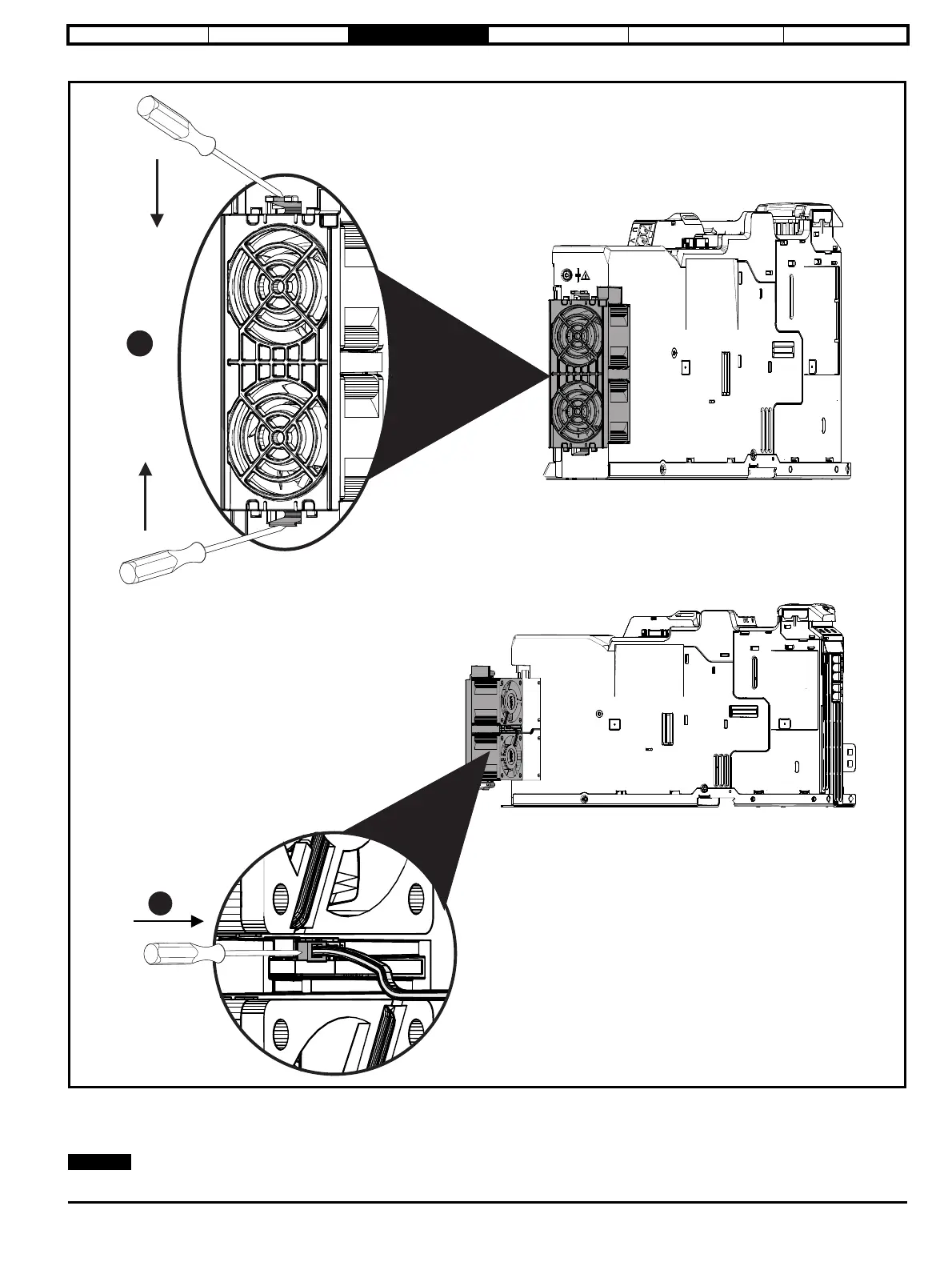

Figure 3-30 Removal of frame size 3 cooling fan
1. Using a flat bladed tool, press the two tabs inwards to release the fan from the drive frame.
2. Partly withdraw the fan assembly and prise out the two way fan plug from the connector. This should not be performed by pulling on the fan supply
cable. Fully withdraw the fans from the housing.
Accumulations of dust on the drive or fan assembly should be removed by vacuuming.
