- Ｄ 0 ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

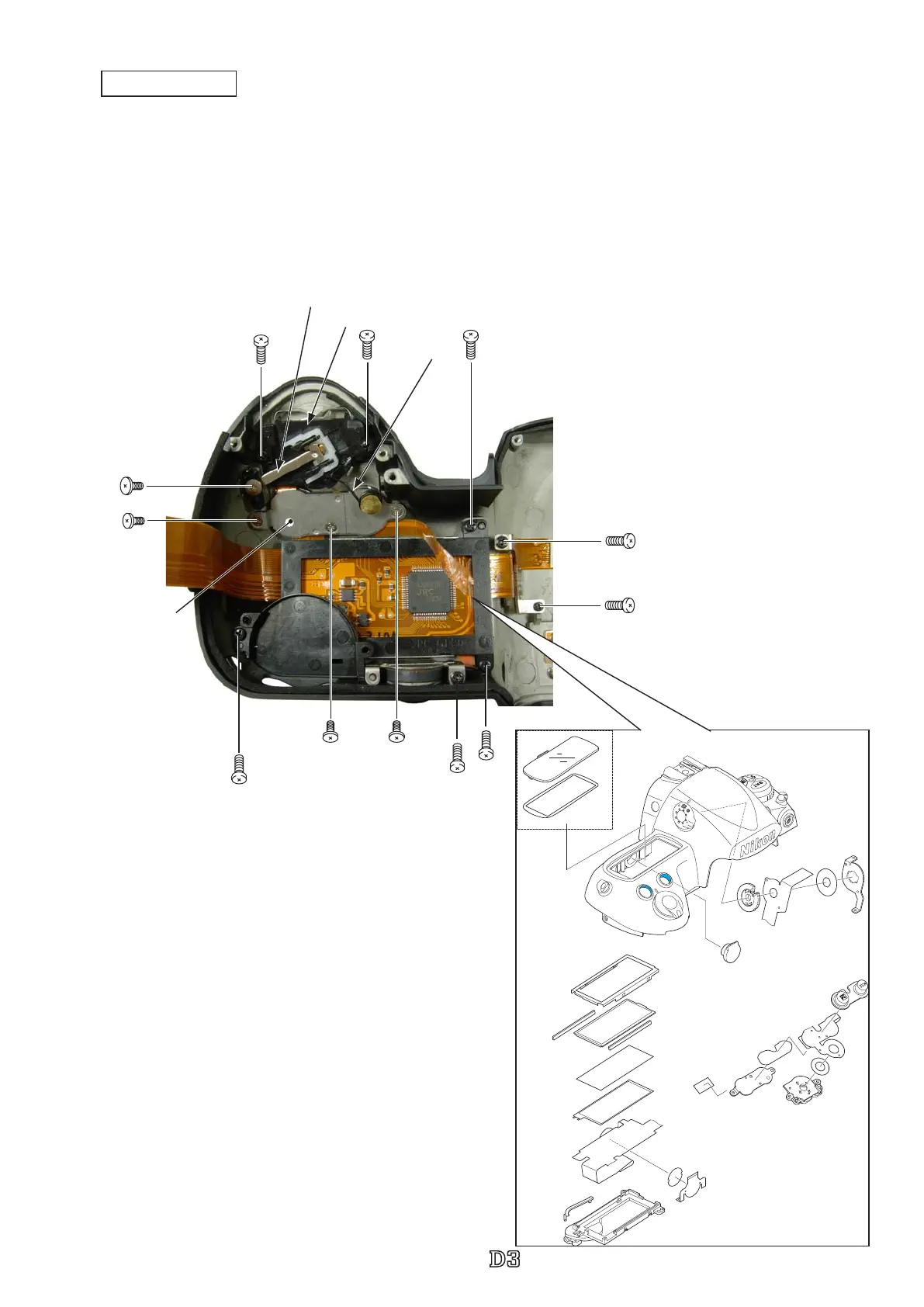

Remove the spring (#750).
・
Take out the screw (#1575), and remove the release-SW unit (#B740).
・
Take out the two screws (#1569), and remove the power-SW mold unit (#B747).
・
Take out the three screws (#1554), and remove the button base (#B731).
・
Take out the two screws (#1564), and remove the FPC xed plate (#790).
・
Take out the three screws (#1569), and remove the top LCD section (#703 mold).
Release-SW unit (#B740)
#1569×2
#1569×3
#1575
#1564×2
Spring#750
Button base
(#B731)
#1554×3
Power-SW mold unit (#B747)
#790
#791
#B785
#797
#702
#B701
#704
#706×2
#5085
#705
#5086
#5002
#798
#796
#764
#703
TA-0026
#B731
#B747
#744
#753
#730
Top LCD section
Top LCD section
To Next Page
