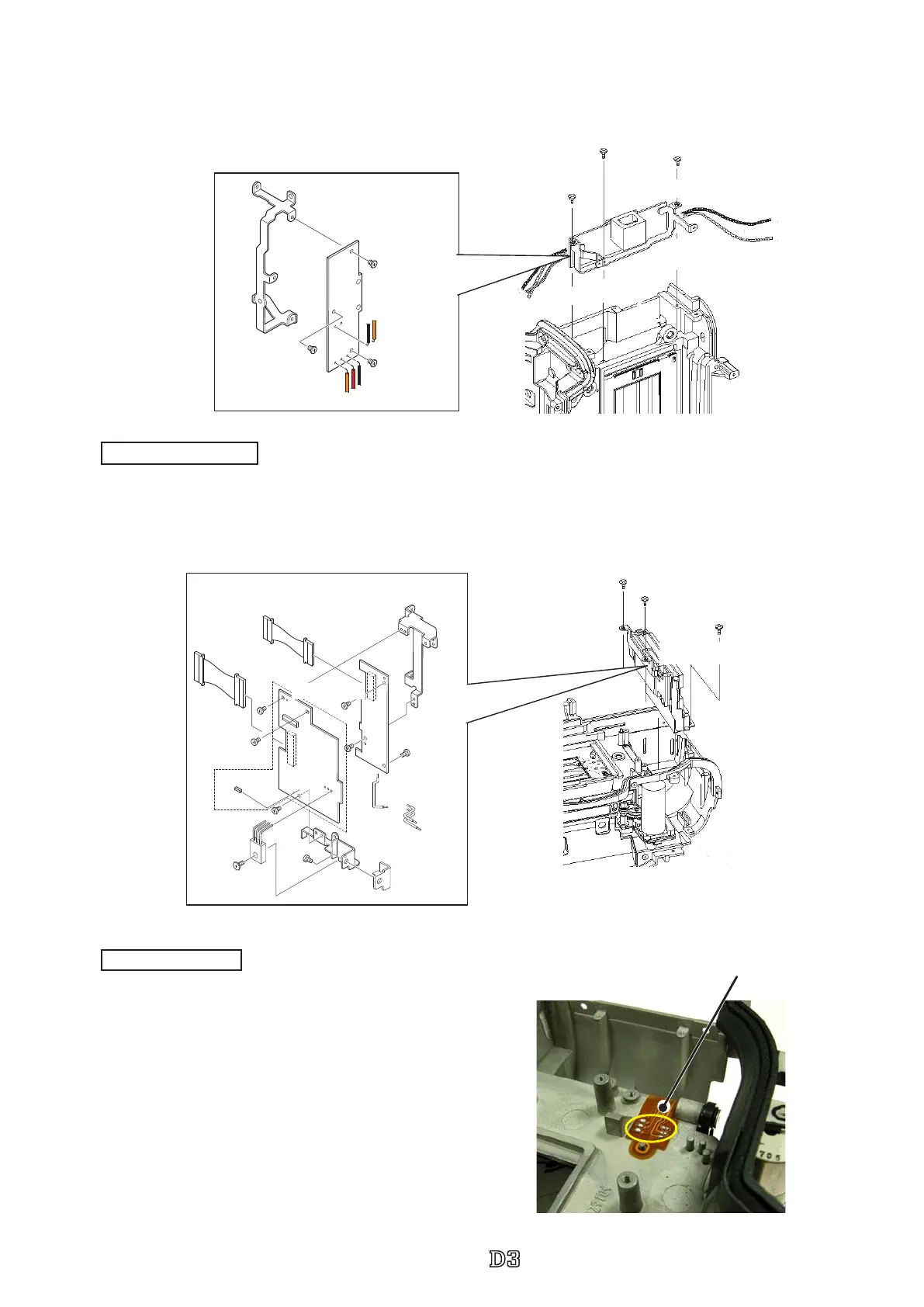

Take out the screw (#1532) and the two screws (#1523).
・
Remove the DC-IN PCB section.
・
Take out one screw (#1532) and two screws (#1523).
・
Remove the DC/DC PCB section.
・
Remove the six soldering bridges.
・
Remove the FPC by releasing from the boss.
DC/DC PCB section
Charge base unit
#1532
#1523×2
DC/IN PCB section
#1530×3
#396
DC/IN PCB section
DC-IN PCB
#5024
#1523×2
#1532
DC/DC PCB section
DC/DC PCB section
#1530
#6020
#6021
#6001
#6002
#5020
#1540
#5115
#69
#5019
#1530×3
#68
#1530×2
#565
FU01
#6048
FPC
INC
