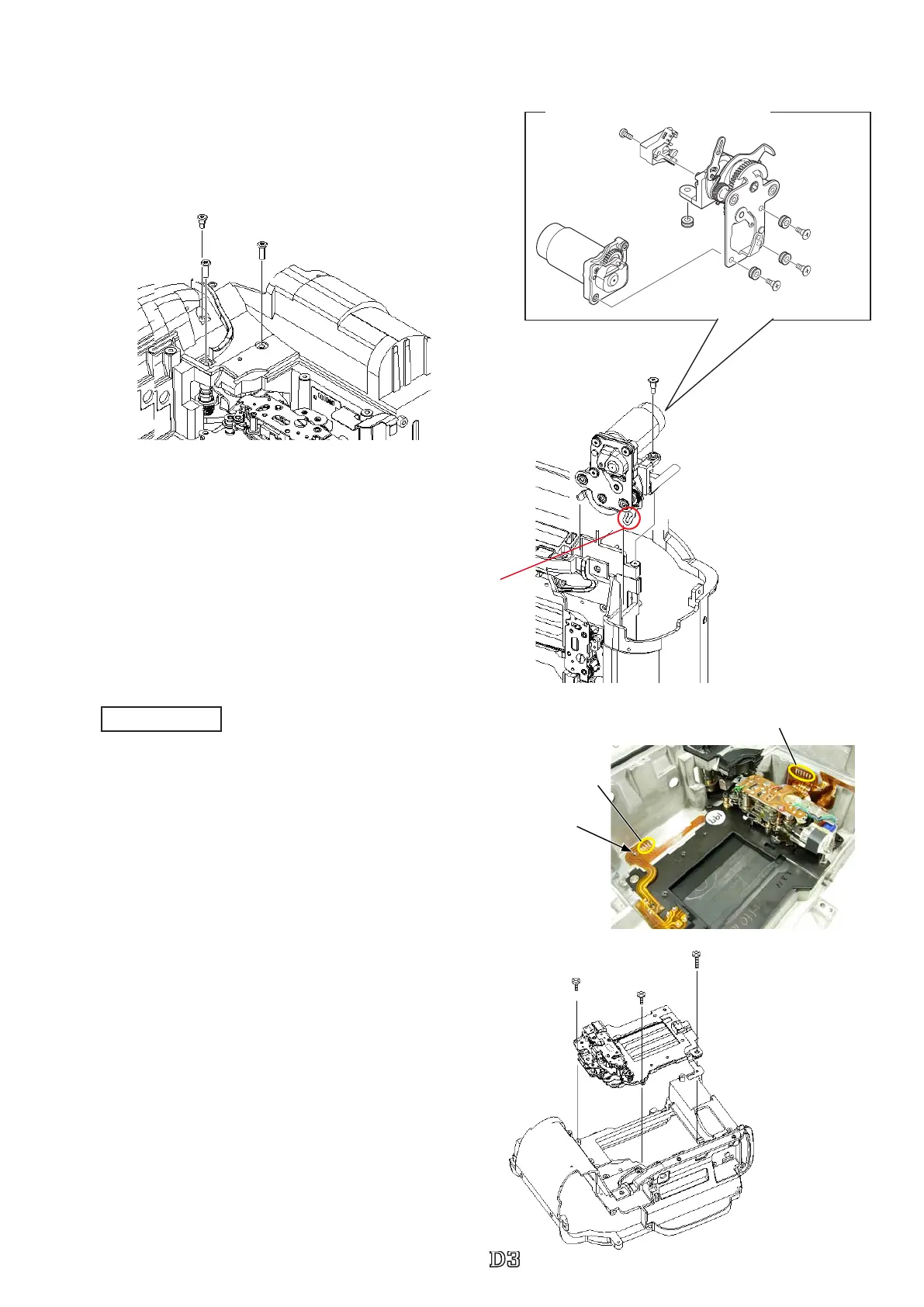

Remove the charge lever section by disengaging
from the convex portion of the shutter.
#
#B
#
#B0
#0 × 
# × 
Charge base-plate unit #B10620
#1710
#1709×2
・
Take out one screw (#1710) and two screws (#1709).
・
Take out the screw (#1706).
・
Remove the charge base-plate unit (#B10620).
・
Remove the six and four soldering bridges each.
#1509×2
#1505
#B12001
Soldering bridge ×4
Shutter unit
・
Take out the two screws (#1509) and one screw (#1505).
・
Remove the shutter unit (#B12001).
Soldering bridge ×6
Boss
INC
