Nikon D3 VBA18001 - I;L Base-Plate Section

- Ｄ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

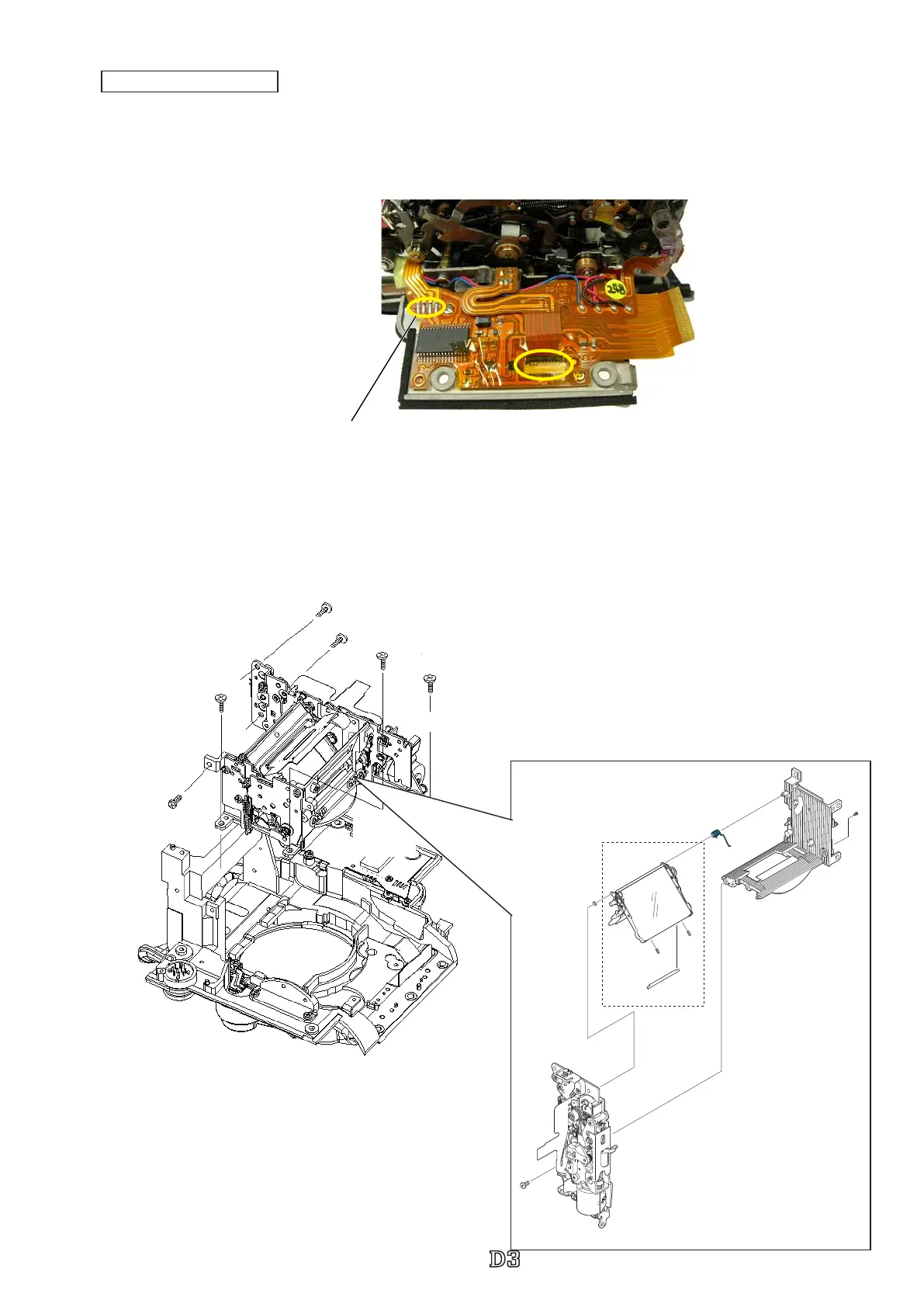

Remove the four soldering bridges.
・
Disconnect the FPC from the connector.
・
Take out the two screws (#1542).
・
Take out the four screws (#1533).
・
Remove the I/L base-plate section.
#1542×2
#1533×4
I/L base-plate section
Soldering bridge ×4
I/L base-plate section
#B10231
#262
#217×2
#205
#B10071
#1510
#221
#B20204
#47
I/L base-plate section
INC
