Nikon D3 VBA18001 - Main PCB Unit; Metering FPC Unit

- Ａ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

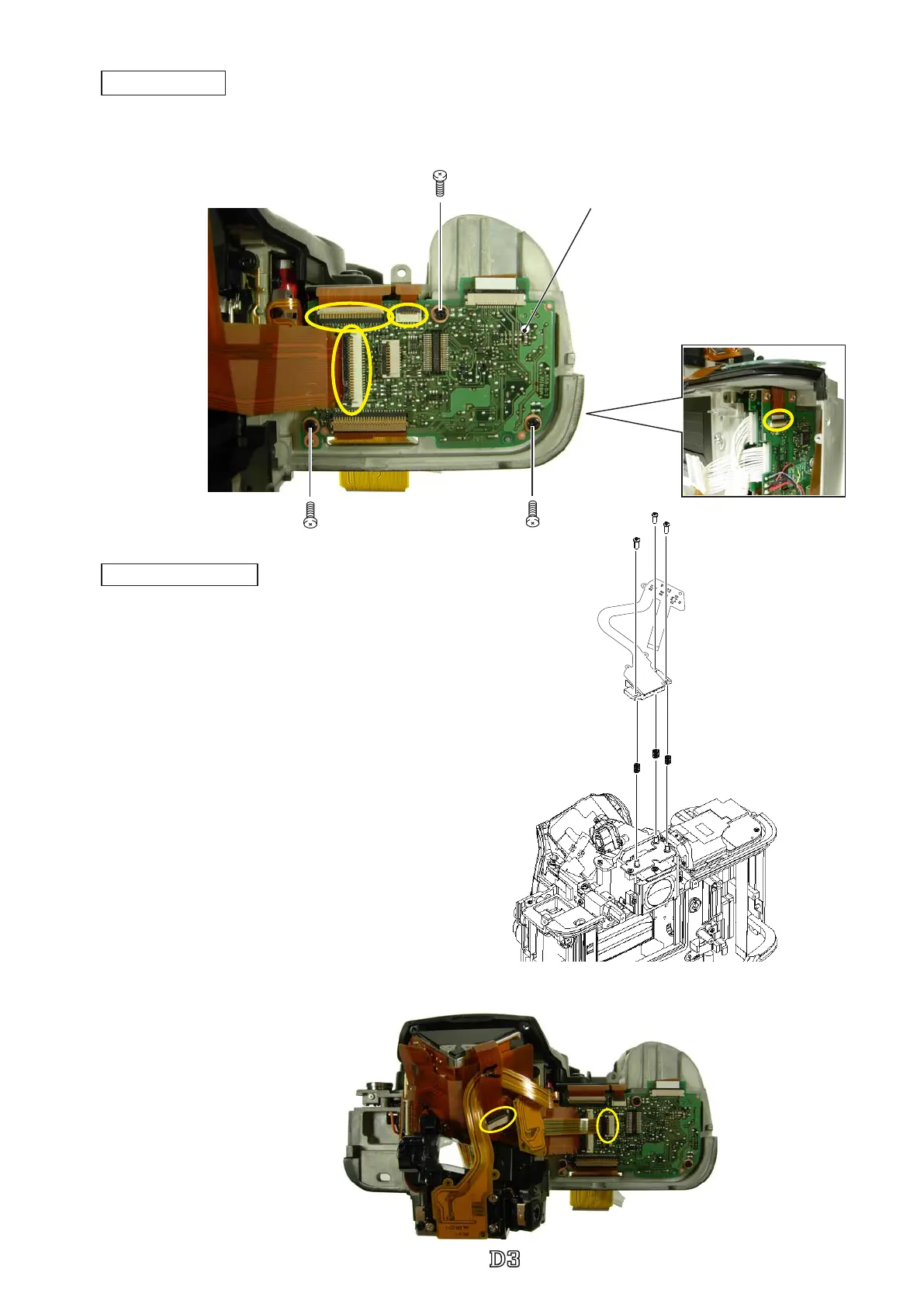

Put three springs (#1134).
・
Mount the Metering FPC unit (#B25005).
・
Turn the three screws (#1133) all the way softly to the end,
and give them three counterclockwise turns.
#1133×3
#1134×3
#B25005
Metering FPC unit
・
Arrange the Metering FPC (#B25005) as below.
・
Connect the two FPCs to each connector.
・
Mount the main PCB (#5001).
・
Tighten three screws (#1532).
・
Connect the four FPCs to each connector.
Main PCB unit
#1532×3
Main PCB #5001
