Nikon D3 VBA18001 - Bottom Cover Section; Battery Cover Unit \ Others

- Ａ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・
Connect the FPC to the connector.
・
Set the bottom cover unit.
・
Tighten three screws (#1512) and three screws (#1516).

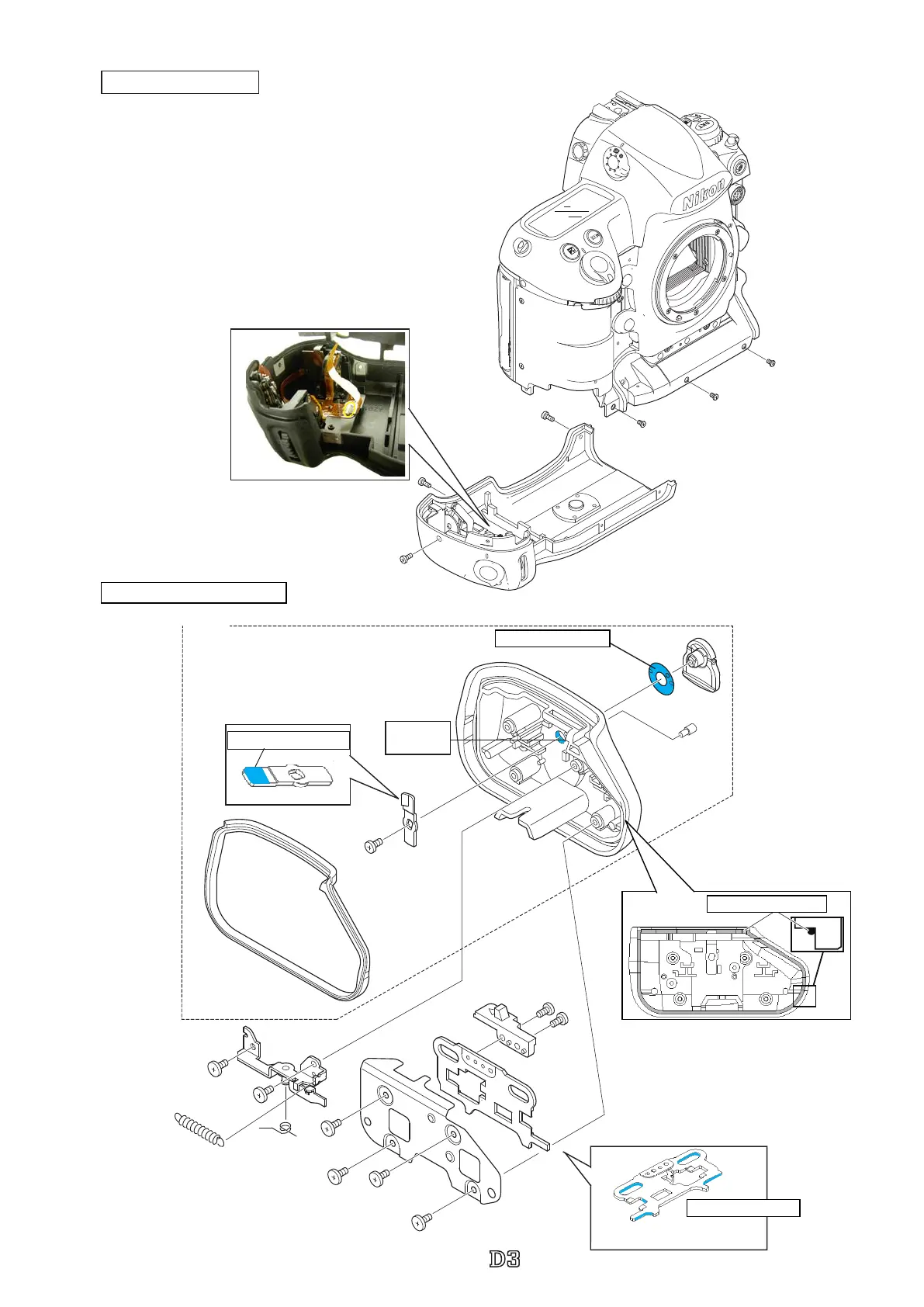

Bottom cover section
Battery cover unit\ others
Grease: G-92KA
#B806
#808
#810
#804
#809
#811
#805
#815
#830
#1600×2
#1549×4
#B282
#814
#813
#1533×2
#B804
Grease:
G-92KA
Grease:CFD409Z
※
Dipping
Apply to the overall inside
surfaces of the holes.
Adhesive: Super X
※
Be careful of the connection-
FPC when connecting.
#1516×3
#1512×3
Grease:CFD409Z
