Top LCD section
・

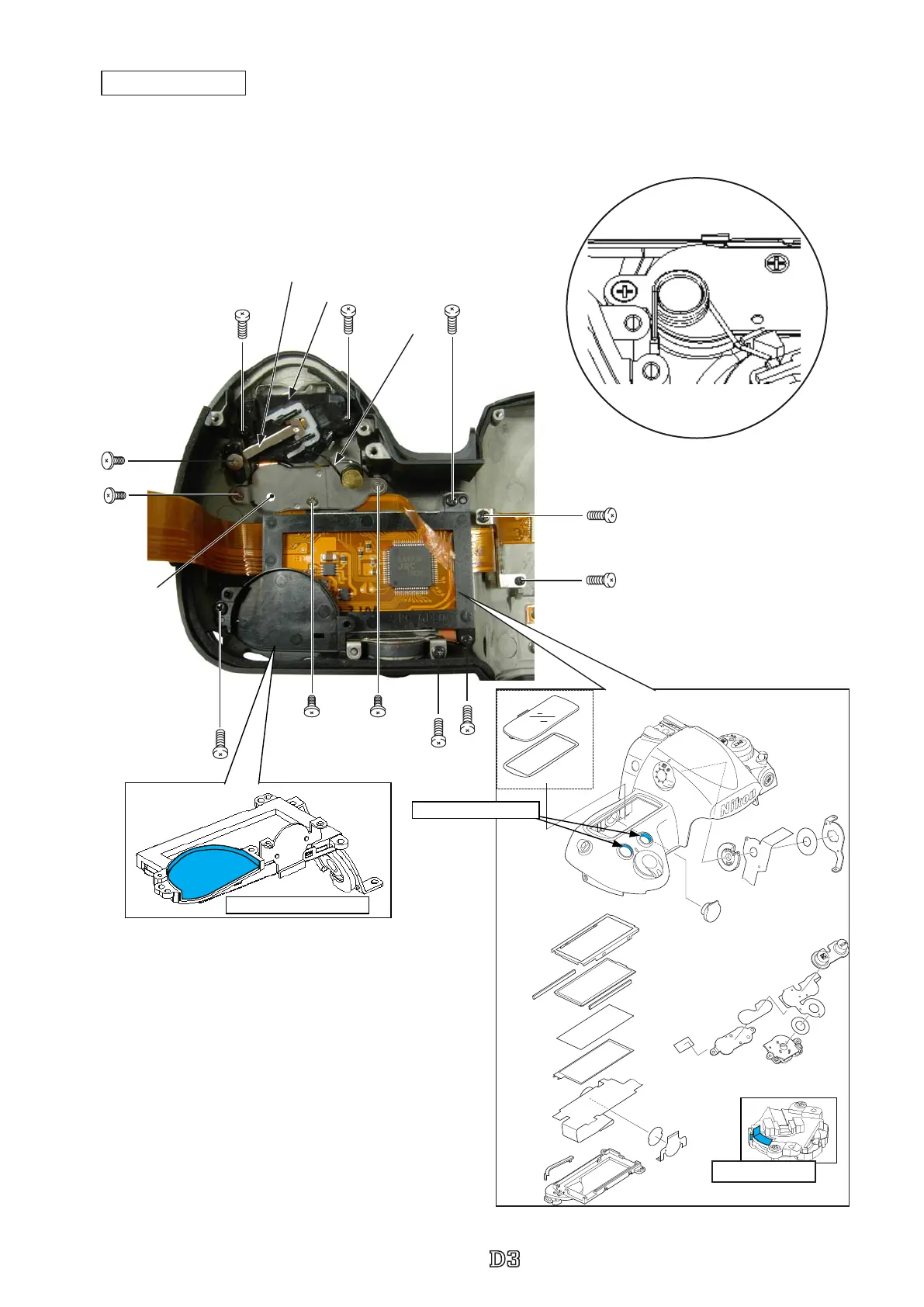

Mount the Top LCD section (#703 mold) and tighten three screws (#1569) and one screw (#1564).
・
Assemble the FPC xed plate (#790), and tighten two screws (#1564).
・
Mount the button base (#B731), and tighten three screws (#1554).
・
Mount the power SW mold unit (#B747), and tighten two screws (#1569).
・
Mount the release SW unit (#B740), and tighten the screw (#1575).
・
Attach the spring (#750).
Position for hooking
spring (#750)
Top LCD section
Release SW unit (#B740)
#1569×2
#1569×3
#1575
#1564×2
Spring (#750)
Button base
plate
#B731
#1554×3
Power SW mold unit (#B747)
#1564
#790
#791
#B785
#797
#702
#B701
#704
#706×2
#5085
#705
#5086
#5002
#798
#796
#764
#703
TA-0026
(6×12)
#B731
#B747
#744
#753
#730
Grease: CFD-409Z
Oil barrier:NKS-401H
Grease:G-92KA
INC
