Nikon D3 VBA18001 - 5 Front Body; P-BOX Section

- Ｄ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

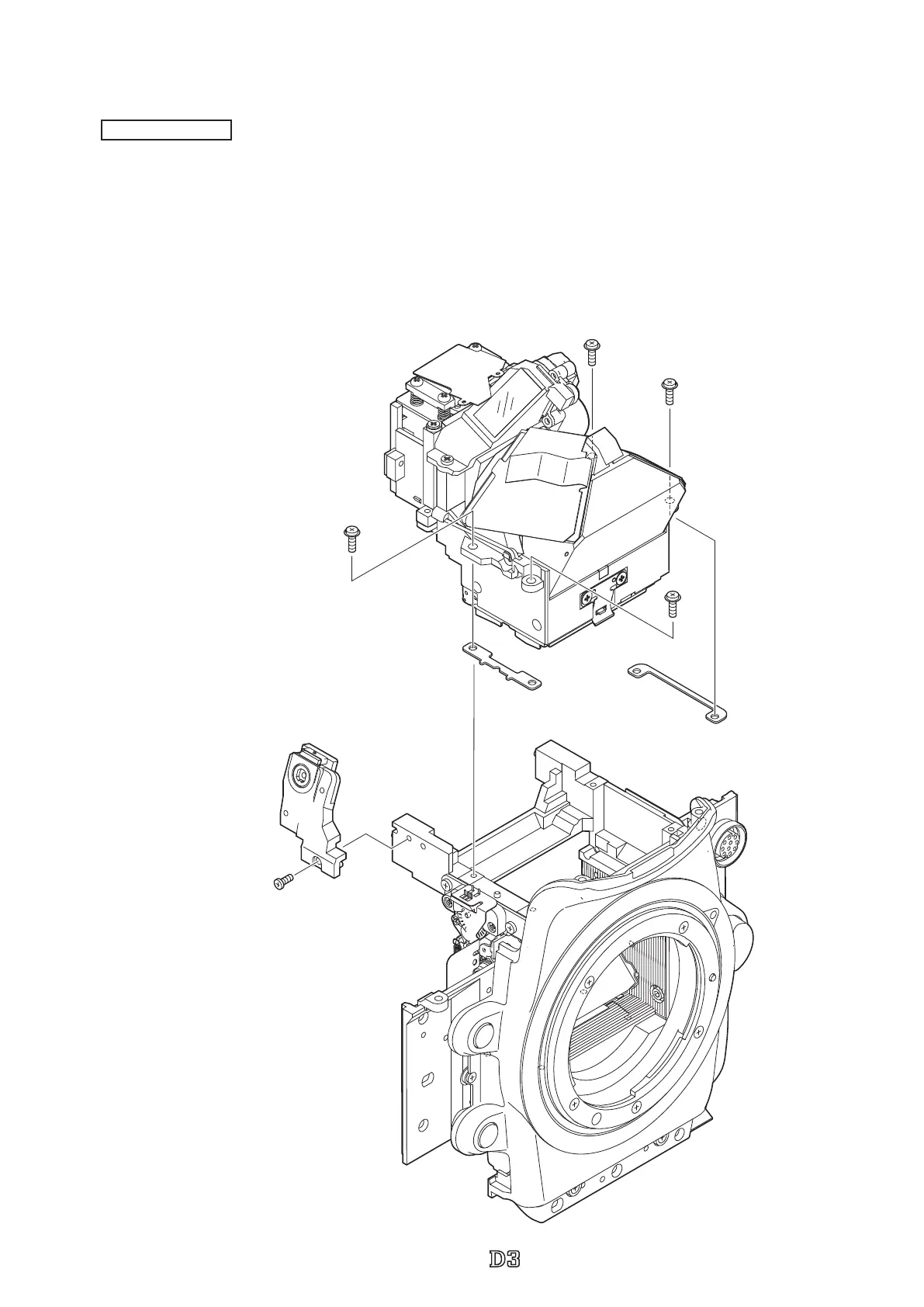

Take out the screw (#1189).
・
Remove the diopter adjustment unit (#B1122).
・
Take out the four screws (#1188).
・
Remove the P-BOX section.
・
Remove the washers (#1180 and #1181).
5. Front Body
P-BOX section
P-BOX section
#1188×4
#1180
#1181
#1189
#B1122
INC
