Nikon D3 VBA18001 User Manual

- Ａ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
1180A 1K603-125
washer
T=0.05
1180B 1K603-126
washer
T=0.06
1180C 1K603-127
washer
T=0.07
1180D 1K603-128
washer
T=0.08
1180F 1K603-129
washer
T=0.2
1180G 1K603-130
washer
T=0.3
1180H 1K603-131
washer
T=0.4
1180J 1K603-132
washer
T=0.5
1180K 1K603-133
washer
T=0.6
1180L 1K603-134
washer
T=0.7
1181A 1K603-135
washer
T=0.05
1181B 1K603-136
washer
T=0.06
1181C 1K603-137
washer
T=0.07
1181D 1K603-138
washer
T=0.08
1181F 1K603-139
washer
T=0.2
1181G 1K603-140
washer
T=0.3
1181H 1K603-141
washer
T=0.4
1181J 1K603-142
washer
T=0.5
1181K 1K603-143
washer
T=0.6
1181L 1K603-144
washer
T=0.7
J18010
#1180A-D, F-H, J-L
#1181A-D, F-H, J-L
±2.5 scale markings
＋－
・
Replace the nder screen with the innity focus adjustment screen (J63099), and use the reference lens (J18010)
then read the value. In case it is out of standard, increase or decrease washers for adjustments.
Caution: For the replacement, put [J63099] with the silver spacers upward, which are attached on both sides.
Standard: ±0.025mm
("mm" scales in "0.01mm" increments)

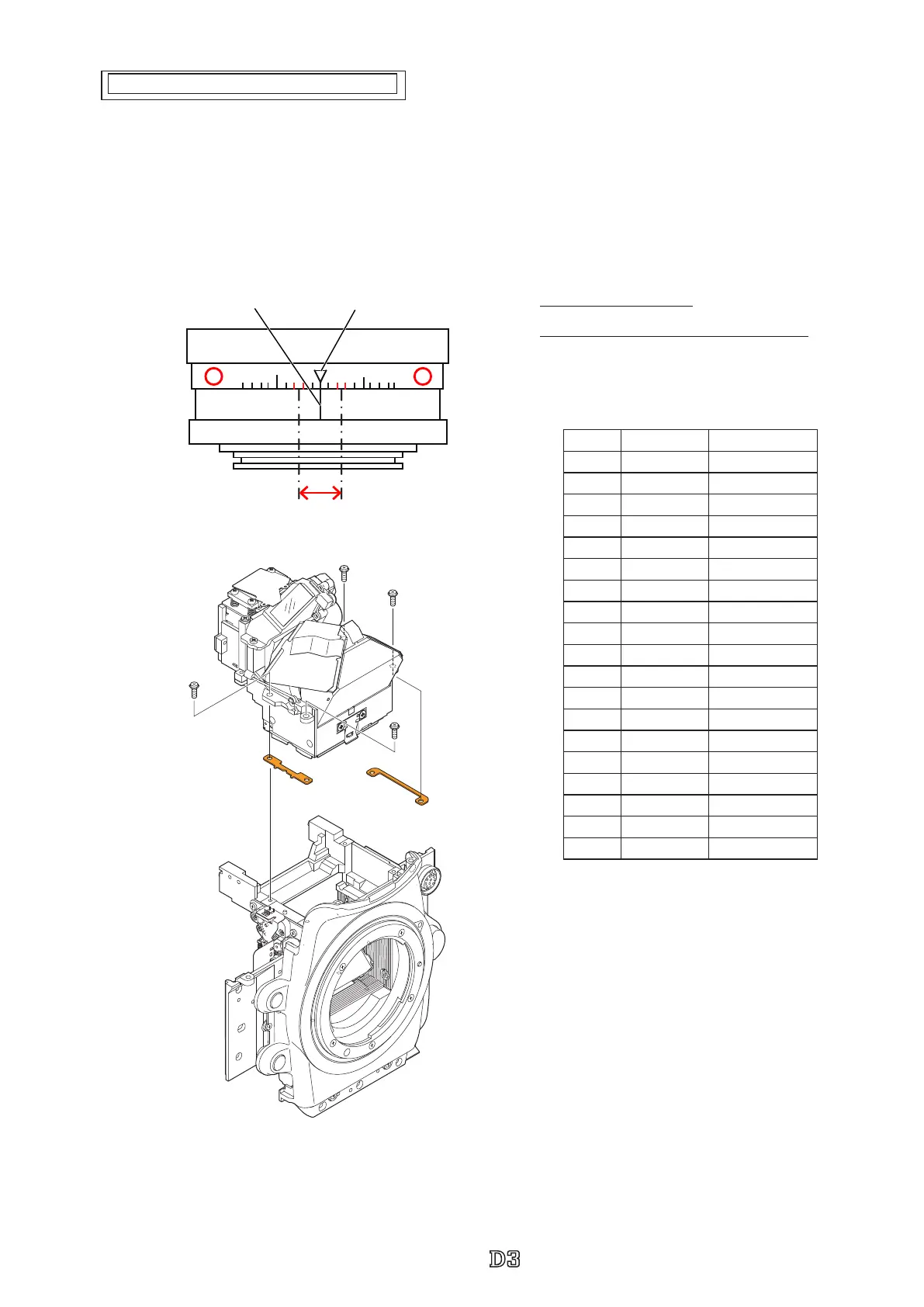

∞ Innity focus inspection & adjustment
Reference line "0" position
INC
