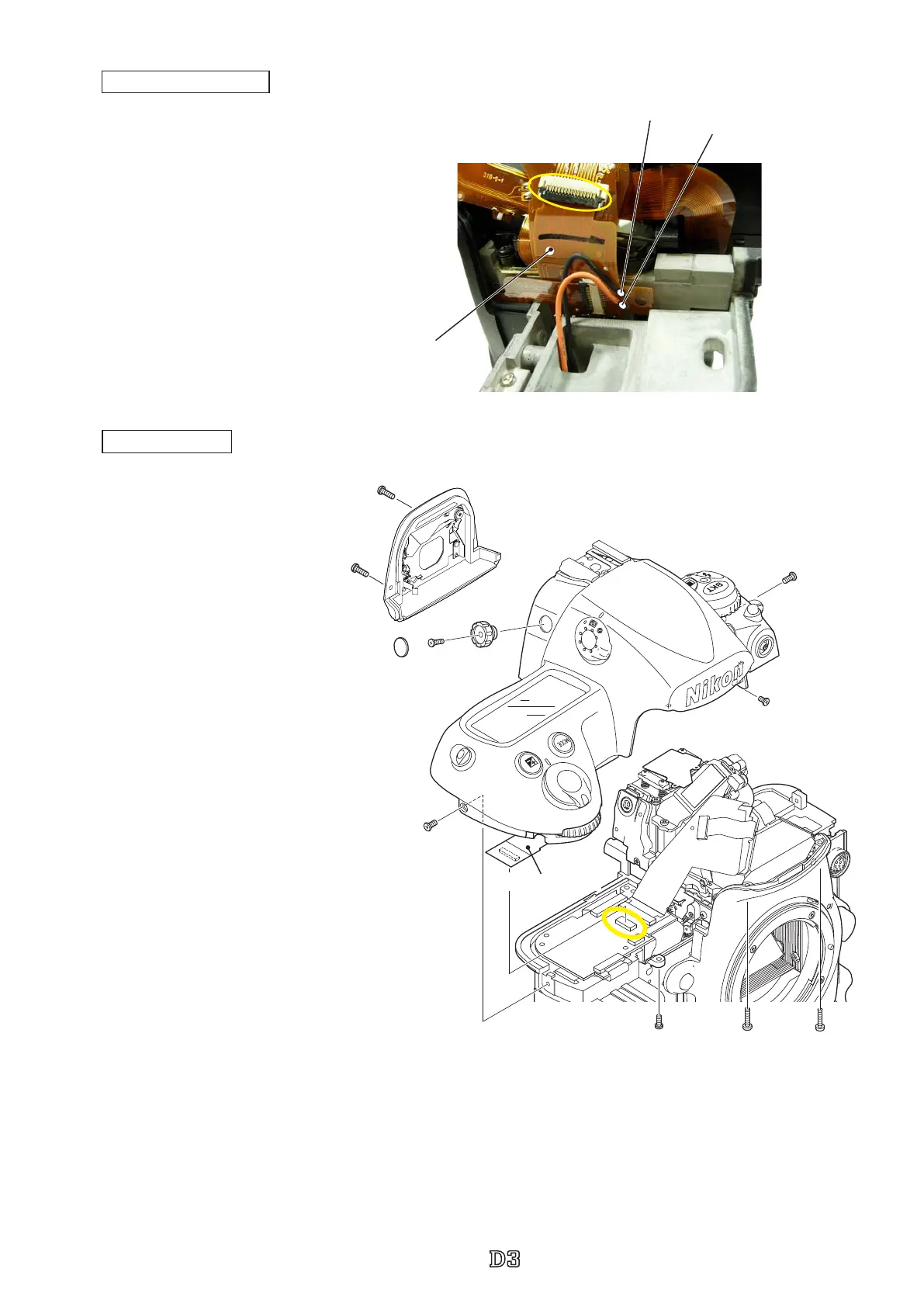

Connect the connection-FPC to the connector.
・
Solder the two wires (that are connected from
DC/IN).
Black:DC/IN
Orange:DC/IN
Connection-FPC unit
Connection-FPC
・
Mount the eyepiece block unit
(#B1137).
・
Connect the top cover FPC to the
connector.
・
Tighten each screw (#1543,
#1538, #1519, and #1510), two
screws (#1518), and two screws
(#1137).
・
Put the diopter adjustment knob
(#1121).
・
Tighten the screw (#1568).
・
Attach the diopter adjustment
knob cover (#1130).
Top cover section
#1130
#1568
#1519
#1510
#1543
#1538
#1518×2
#1137×2
Eyepiece block unit (#B1137)
#1121
Top cover FPC
