VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito

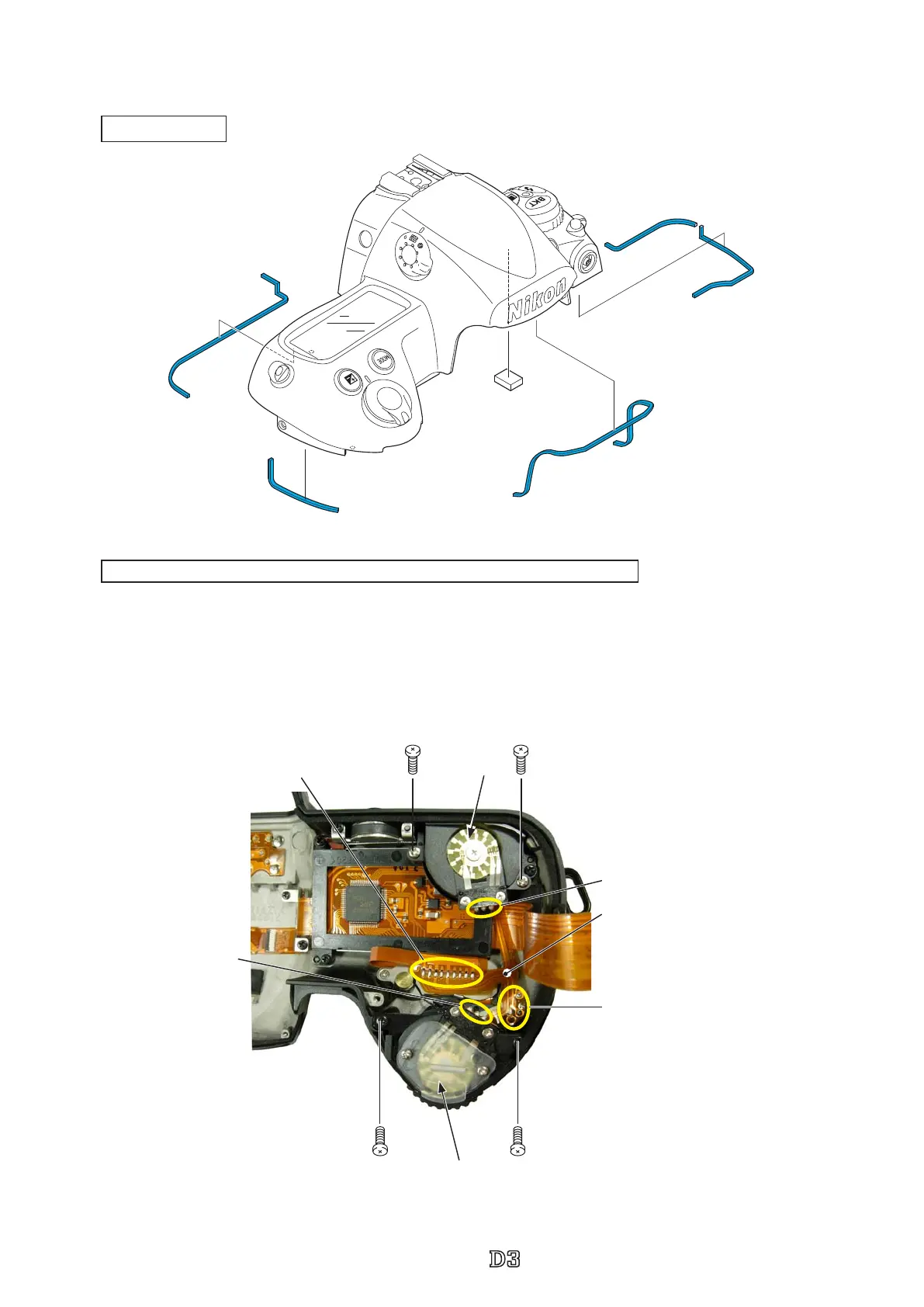

Remove the three soldering bridges each at three places, and nine soldering bridges.
Remove the release-SW FPC (#5044).
Take out the two screws (#1569), and remove the sub-command dial unit (#B725).
Take out the two screws (#1558), and remove the main command dial unit (#B726).
#981
#982
#983
#1195
#984
#985
Release-SW FPC
/
Main command dial unit /
Sub-command dial unit
Sponge/Rubber
Release-SW FPC (#5044)
Main
command
dial unit
(#B726)
Sub-command dial unit
(#
B725)
#1558×2
#1569×2
Soldering bridge×3
Soldering bridge×3
Soldering bridge×9
Soldering bridge×3
2.Top Cover
