Caution
：
When "Separate Penta-Prism box from Front body" is performed, be sure to make this adjustment.
Procedure
①
Make a temporary assembly of the bottom cover.
②
Insert the battery into the camera, and set the exposure mode to "P".
③ Turn the power SW to OFF, and remove the battery.
④
Remove the FPC of the top cover, then remove the top cover from the body.
Caution: At this moment, if the FPC of the top cover is removed with the battery being inserted, the power
transistor, etc, of the DC/DC2 may be burned out.
⑤

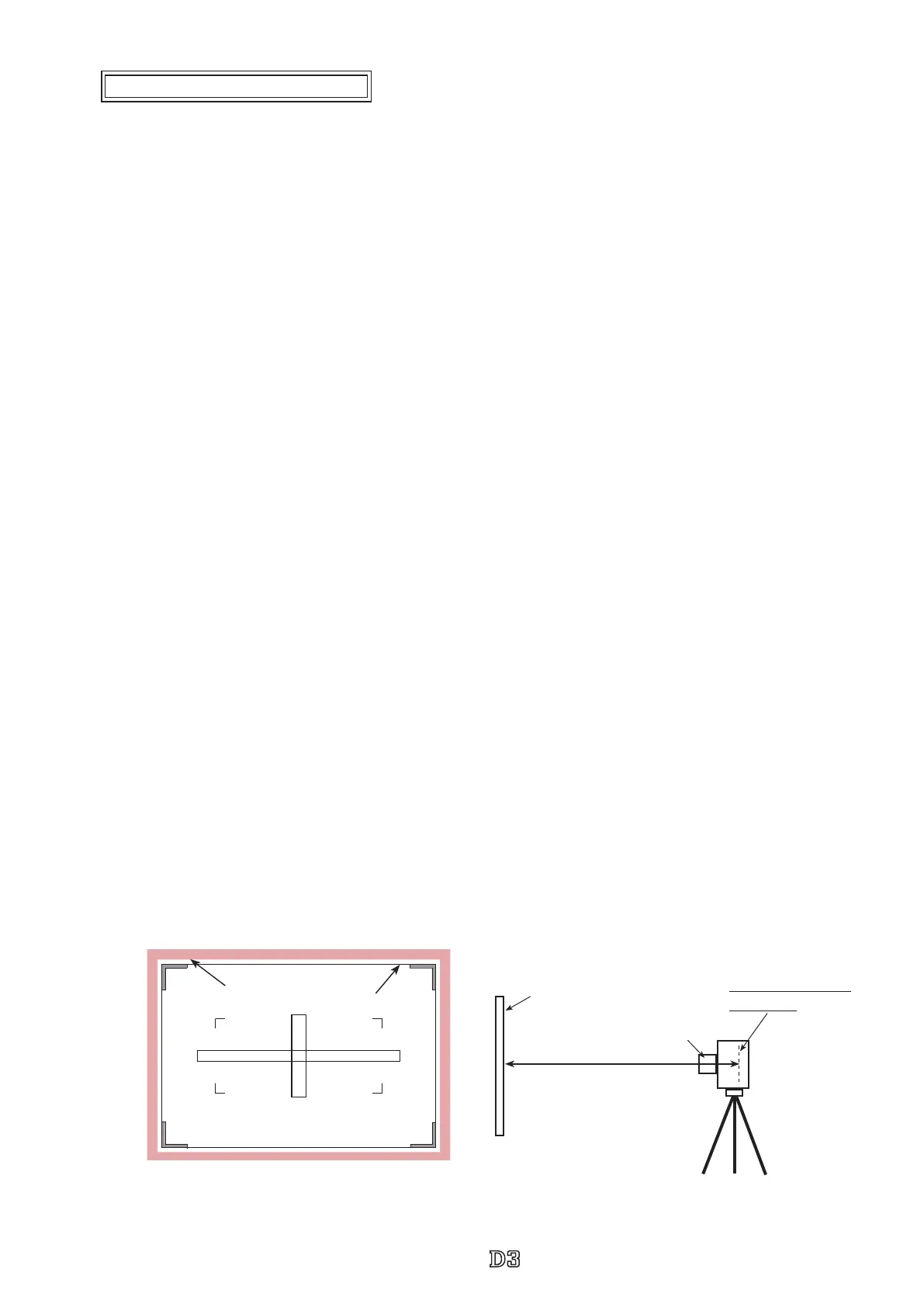

Attach the parallax/SI chart for D3 (J63102) on the wall, etc.
⑥
Insert the CF card and battery into the camera, and mount the lens (AF 50/1.4D).
⑦
Position the camera body 70 cm-distance away from the parallax-inspection chart for D3 (J63102) by using
the tripod, etc.
⑧
Set the optical axis of lens to come in the center of the chart.
⑨
Take a shot of the chart by vertical-shooting shutter button, and display it on the TFT monitor to ne adjust
the camera position so that all four sides of the 98 % chart frame can appear on the monitor.
⑩
Look through the viewnder. In order to meet the standard, the clearance between the 100 % frame and 98
% frame of all four sides must be seen.
【
Out-of-standard case
】
⑪
Remove the battery.
⑫
Remove the two FPCs. Loosen the four screws of the prism box, then move the prism box so that the four
sides in the viewing eld of the nder come in between the 100
％
chart frame and 98
％
chart frame.
⑬
Tighten the loosened four screws.
⑭
Check the angle of view of the viewnder.
⑮
Connect the removed FPC. Insert the battery into the camera, and take a shot of the chart again by the
vertical-shooting release button. Conrm that the camera body does not move.
⑯ If it moves, make the adjustment from the procedure of ⑧
.
70cm
Parallax / SI chart for D3
（
J63102
）
AF50/1.4D
Mounting surface of
Image-PCB
100
％
frame (red)
98
％
frame (black)
Parallax / SI chart for D3
（
J63102
）
Parallax inspection and adjustment
