- Ｄ 25 ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

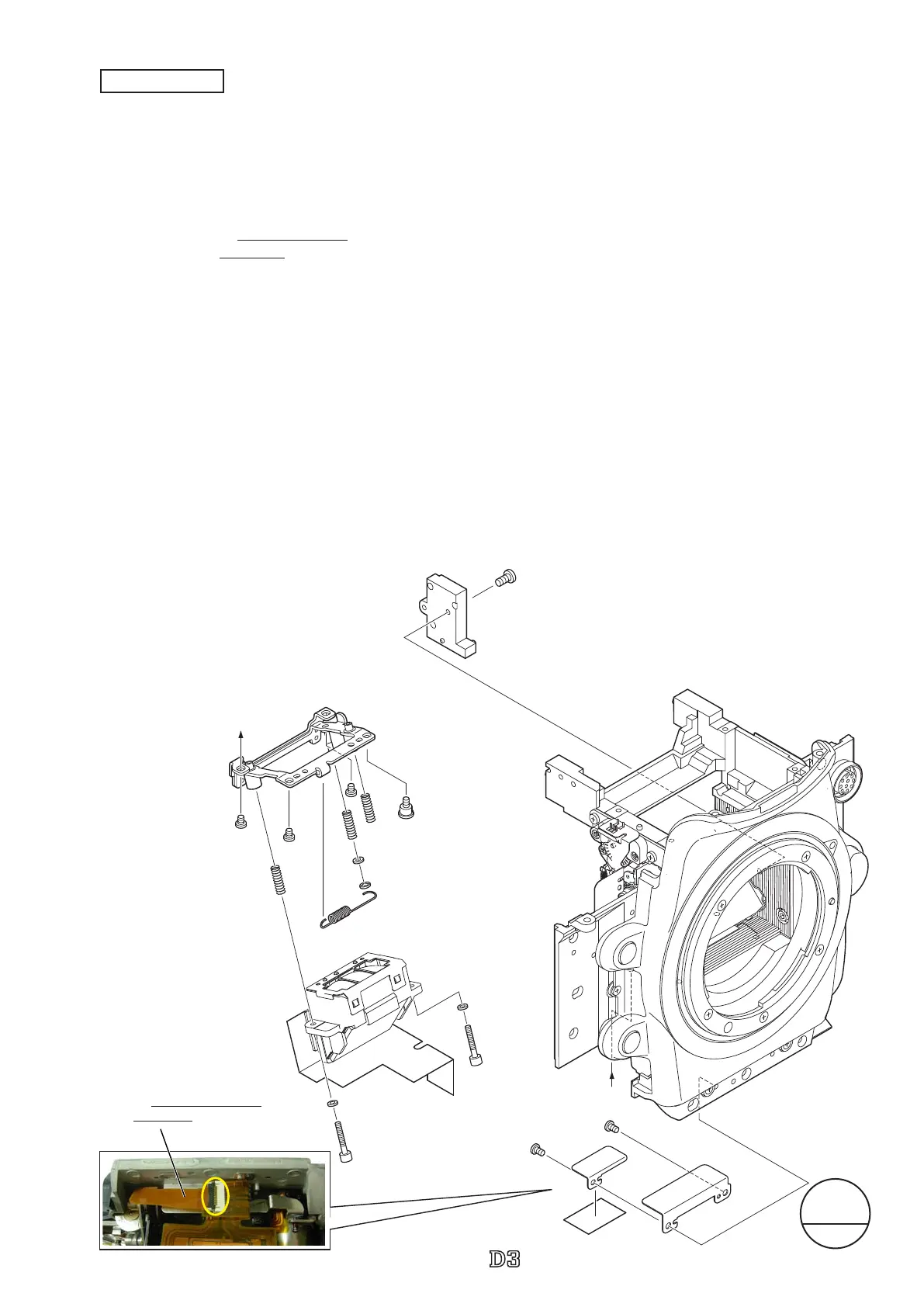

Take out the screw (#1532).
・
Remove the mold (#281).
・
Take out the screw (#1588).
・
Remove the plate (#282).
・
Disconnect the TTL FPC from the connector.
・
Take out the screw (#1588).
・
Remove the plate (#283).
・
Remove the E-ring (#298).
・
Remove the [#294].
・
Take out the two screws (#295).
・
Remove the two washers (#300).
・
Remove the AF sensor unit (#B3004).
・
Remove the two springs (#296) and one spring (#293).
・
Remove the spring (#304).
・
Take out one screw (#303) and three screws (#1526).
・
Remove the AF sensor base plate (#B10297).
AF sensor unit
A
A
#1532
#281
#303
#1526×3
#296×2
#304
#298
#294
#293
#B3004
#300×2
#295×2
#282
#284
#283
#1588×2
#B10297
TTL FPC
△
(Revision) Front body FPC
△
(Revision) Front body FPC
Ｍ
サービス
計画課
Dec.28.2007
Changed page
△× 2
INC
