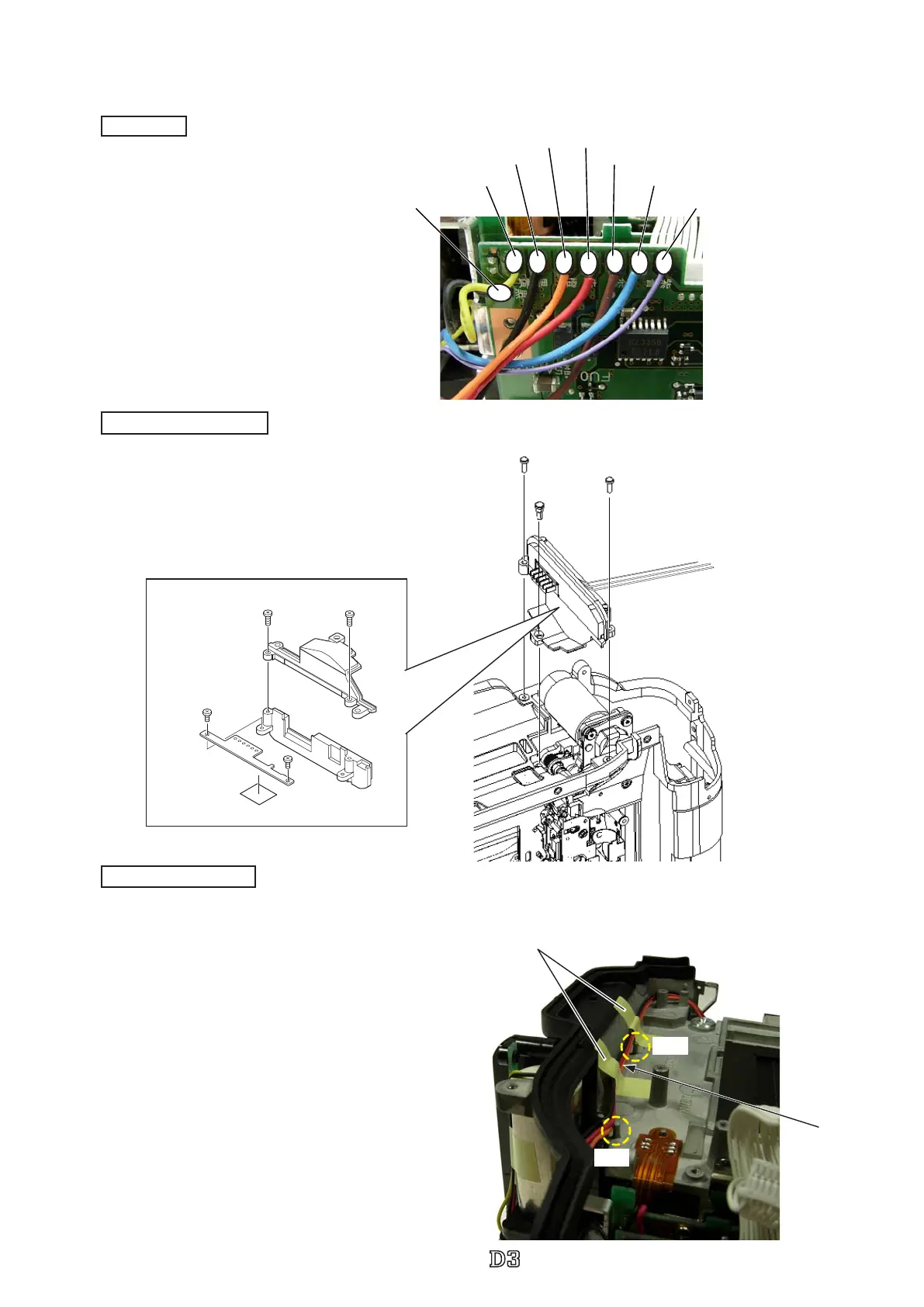

4. Rear Body
・
Unsolder the eight
wires that are
connected as shown
in the right picture.
・
Take out the two screws (#1538) and one screw (#928).
・
Remove the battery contact base-unit section.
#1538×2
Battery contact section
#928
・
Peel off the two pieces of the tape (TA-0005).
・
Remove the wire by releasing from the boss.
#1568×2
#1565×2
TA-0005
#801
#803
#B5053
Battery contact section
DC/DC 2
Battery contact unit
DC-IN PCB section
Black: Charge base-plate unit
Black:DC/IN PCB section
Red:DC/IN PCB section
Blue: Battery contact base-unit sectionYellow: Charge base-plate unit
Orange:DC/IN PCB section
Brown: Battery contact base-unit section
Violet: Battery contact
base-unit section
Wire
TA-0005×2
Boss
Boss
INC
