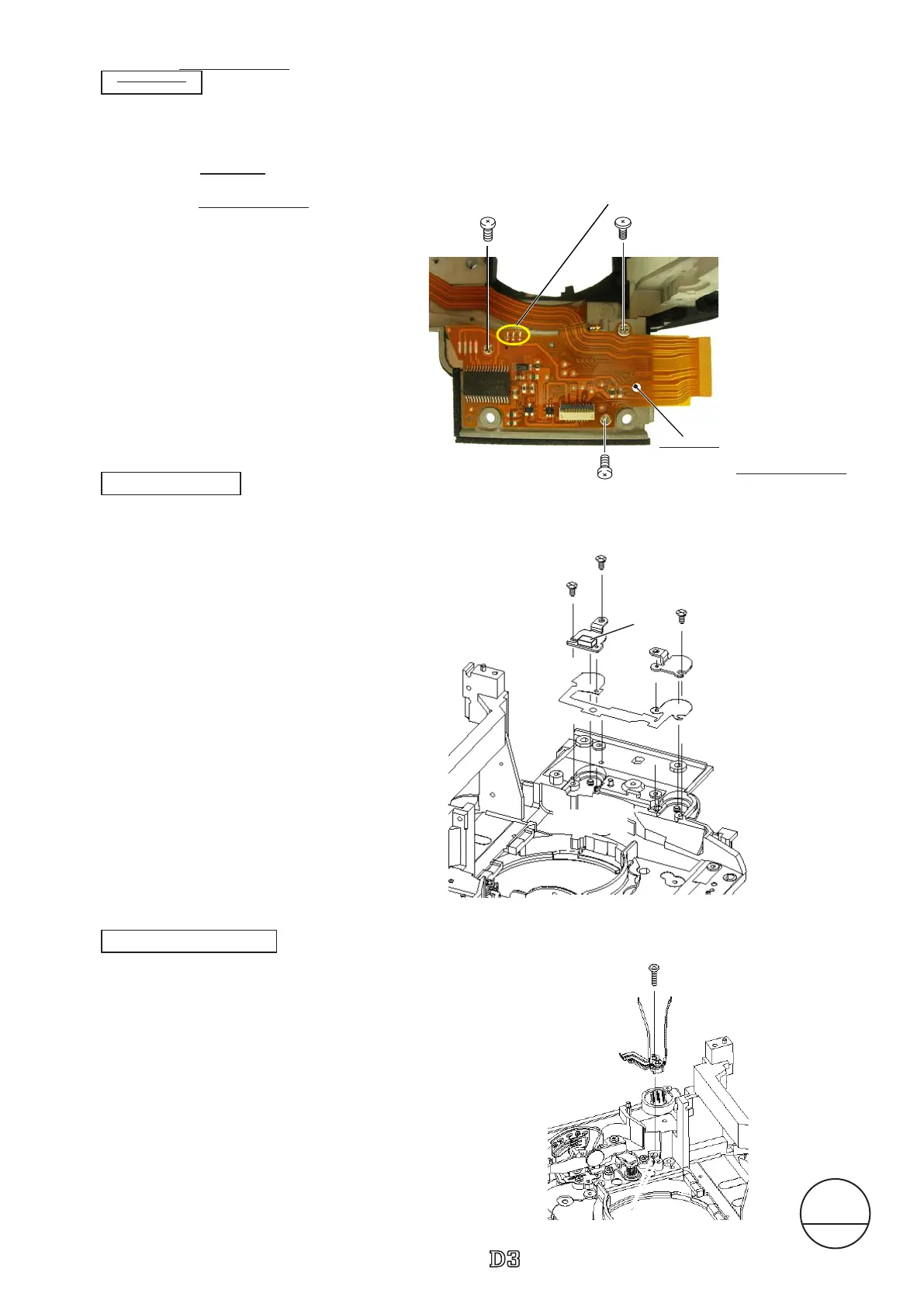

Take out the three screws (#1580).
・
Remove [#99] and [#100].
・
Remove the function FPC (#5013).
・
Take out the screw (#1539).
・
Remove the lens release SW unit (#B10378).
#1539
#B10378
・
Remove the three soldering bridges.
・
Take out the screw (#1601) and two screws (#1508).
・
Remove the TTL FPC (#5009).
TTL FPC
Function FPC
Lens release SW unit
TTL FPC#5009
#1601
#1508×2
Soldering bridge ×3
#1580×3
#99
#100
#5013
#279
△
(Revision) Front body FPC
△
(Revision) Front body FPC
△
(Revision) Front body FPC
Ｍ
サービス
計画課
Dec.28.2007
Changed page
△× 3
INC
