Ｄ
･
-
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・
T

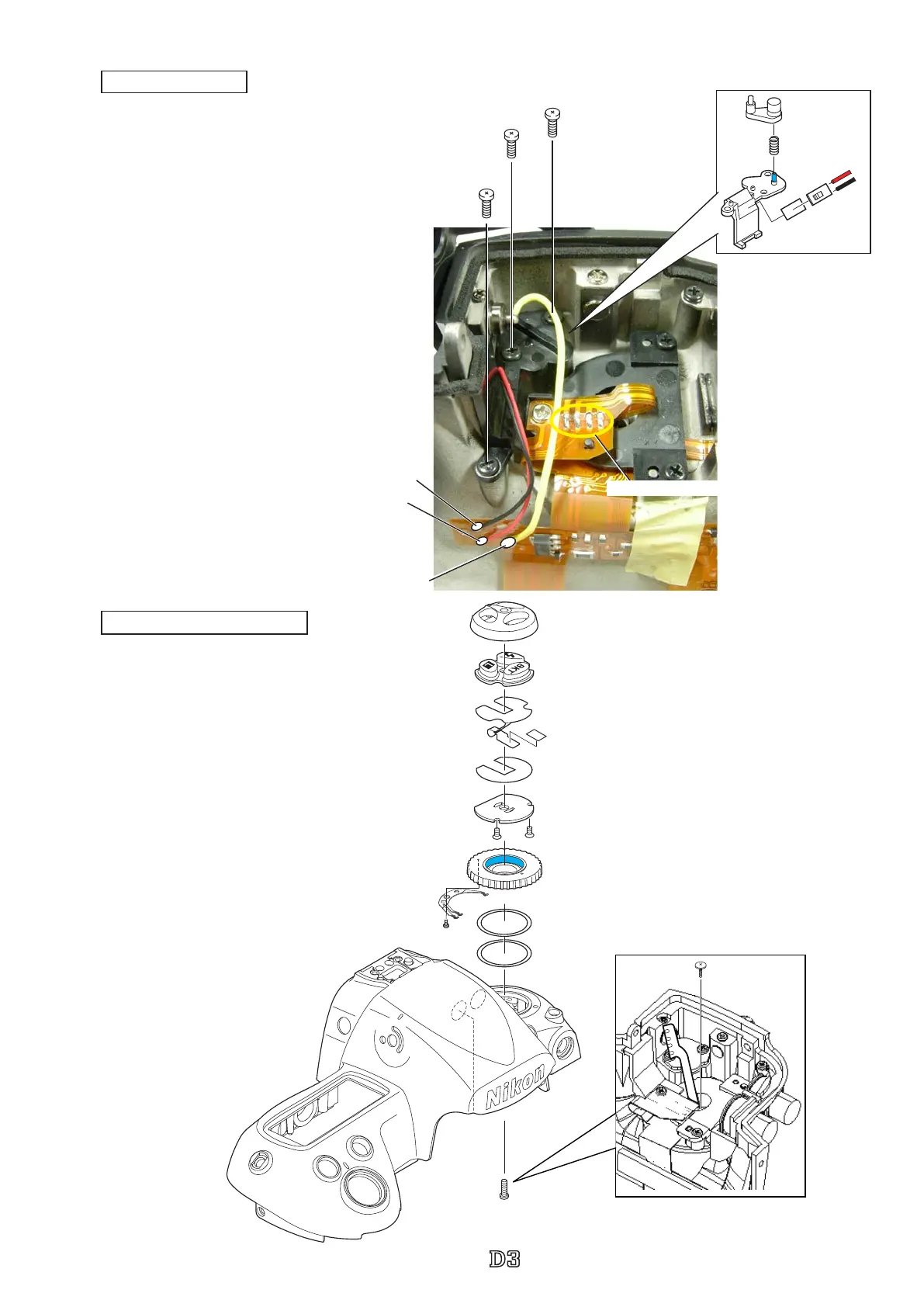

ake out the three screws (#1569), and remove the
self-timer section.
・
Remove the four soldering bridges.
#1569×3
Black: Self-tiemer LED
Y
ellow: Synchro-terminal
Red: Self-timer LED
Self-timer section
Function mode dial section
#502
#501
#5043
#516
#520
#503
#1582×2
#504
#507
#1550
#51
1
#512
#1568
#1568
#508
#509
#5035
#519
#510
Self-timer section
Soldering bridge×4
INC
16
18
Table of Contents
Default Chapter
2
Table of Contents
2
1 External Units and Imaging-Related Pcbs
6
Disassembly
6
External Rubber
6
Battery Cover Unit \ Others / Bottom Cover Section
7
Rear Cover Unit\ I/F Cover
8
Vertical Main-Command Dial\Vertical Sub-Command Dial\Others
8
CF Cover Section\ TFT Monitor\ Others
9
Microphone\ Speaker\ Rear LED\ Others
10
Selector Button Unit \ Selector FPC\ Others
11
Shield Plate \ CF PCB / DG PCB
12
2 Top Cover
14
Top LCD Section
15
Power SW Base Section / Metering Mode Dial Section
16
Mode Dial FPC / Hot Shoe \ Others
18
Eyepiece Cover Section
19
3 Separate Front and Rear Bodies
19
Metering FPC Unit
19
Separation of Front Body from Back Body
21
4 Rear Body
22
DC/DC PCB Section (Replacement of "FU01" of DC/DC 2)
23
Shutter Unit
24
Rear Body
25
5 Front Body
26
P-BOX Section
26
SI Holder\ Penta-Prism Box Unit\ Lower Display Prism\ Others
27
Penta-Prism\ Focusing Screen\ Others
28
Connection-FPC
29
AF Sensor Unit
30
I/L Base-Plate Section
32
Lens Release Button / AF Mode Lever / AF Vertical Lever Unit
34
Apron \ Aperture Coupling Ring Unit \ Bayonet Mount / F-F0 Plate
36
Apron\ Aperture Coupling Ring Unit\ Bayonet Mount
36
AF Vertical Lever Unit / AF Mode Lever / Lens Release Button
43
I/L Base Plate Section
45
AF Driving Base Unit / AF Horizontal Lever Unit
46
Height Adjustment of AF Coupling Shaft /Height Adjustment of Aperture Lever
47
AF Sensor Unit
48
Connection FPC
49
Penta-Prism\ Focusing Screen\ Others
50
SI Holder\ Penta-Prism Box Unit\ Lower Display Prism\ Others
51
P-BOX Section
52
Angle Adjustment of Main Mirror and Sub Mirror
53
Infinity Focus Inspection & Adjustment
54
DC/Dc2
57
Inspection and Adjustment of Body Back
60
Main PCB Unit / Metering FPC Unit
61
Inspection and Adjustment of Camera Body's Accuracy
62
Adjustment of AE CCD Positioning
69
Hot Shoe \ Others / Mode Dial FPC
70
Function Mode Dial Section / Self Timer Section
71
Top LCD Section
73
Eyepiece Cover Section / Temporary Assembly of Top Cover Section
75
Image Sensor Unit / DG-PCB
76
Shield Plate\ CF PCB
77
Rear Cover Unit\ I/F Cover
81
Vertical Main Command Dial\ Vertical Sub Command Dial\ Others
81
Bottom Cover Section / Battery Cover Unit \ Others
82
Parallax Inspection and Adjustment
83
Position Adjustment of si (Super Impose) Unit
84
XY Inspection and Adjustment
86
Connection FPC Unit / Top Cover Section
87
External Rubber
88
Wiring
99
Inspection Standards
123
5
