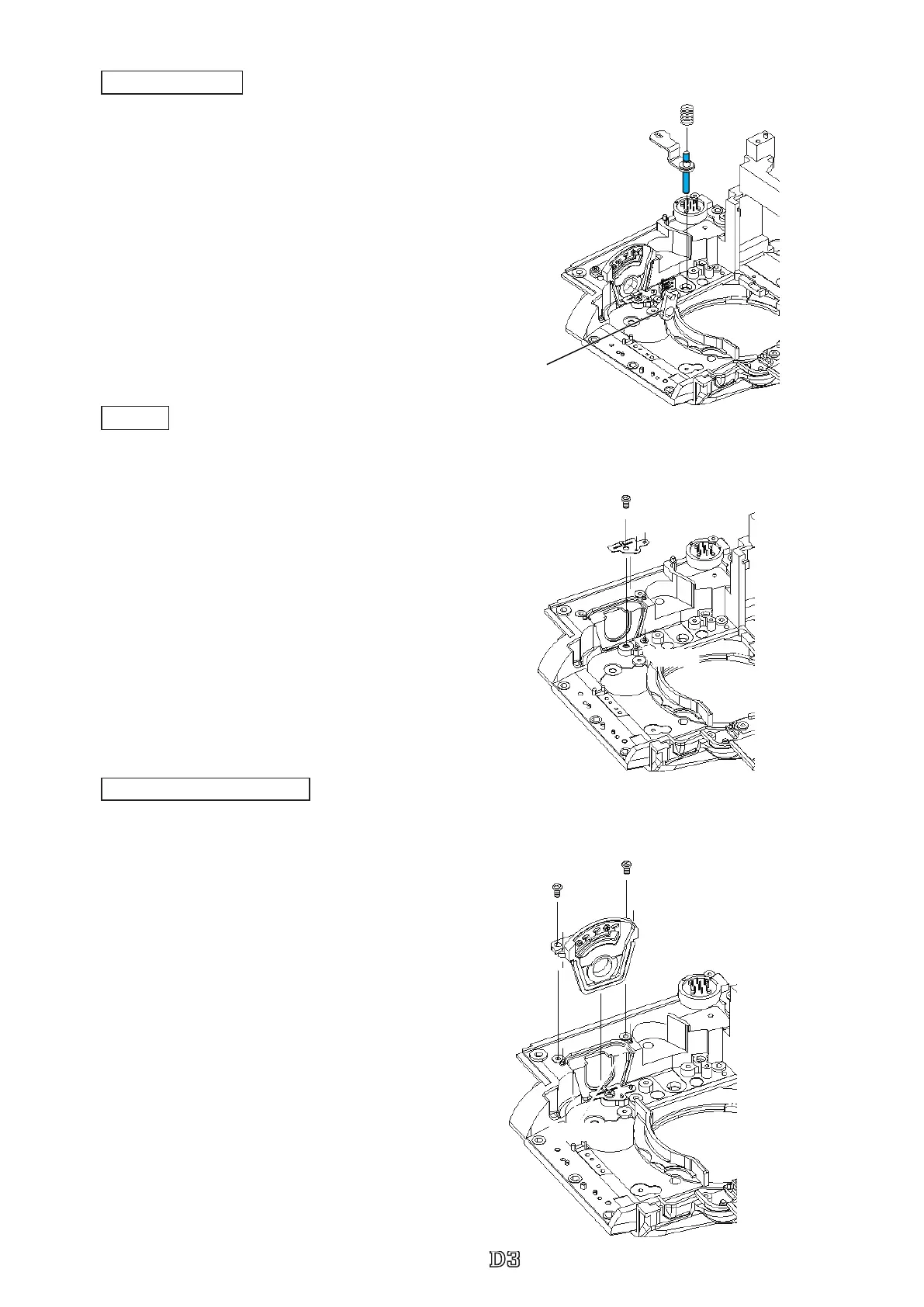

Take out the two screws (#1533).
・
Remove the AF mode change base unit (#B390).
#1532
#385
・
Take out the screw (#1532).
・
Remove the plate (#385).
・
Remove the AF mode change unit (#B384).
・
Remove the spring (#374).
・
Remove the lens release unit (#B371).
Lens release unit
plate
AF mode change base unit
#374
#B371
AF mode change unit
#B384
