Nikon D3 VBA18001 - Page 40

- Ａ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
・

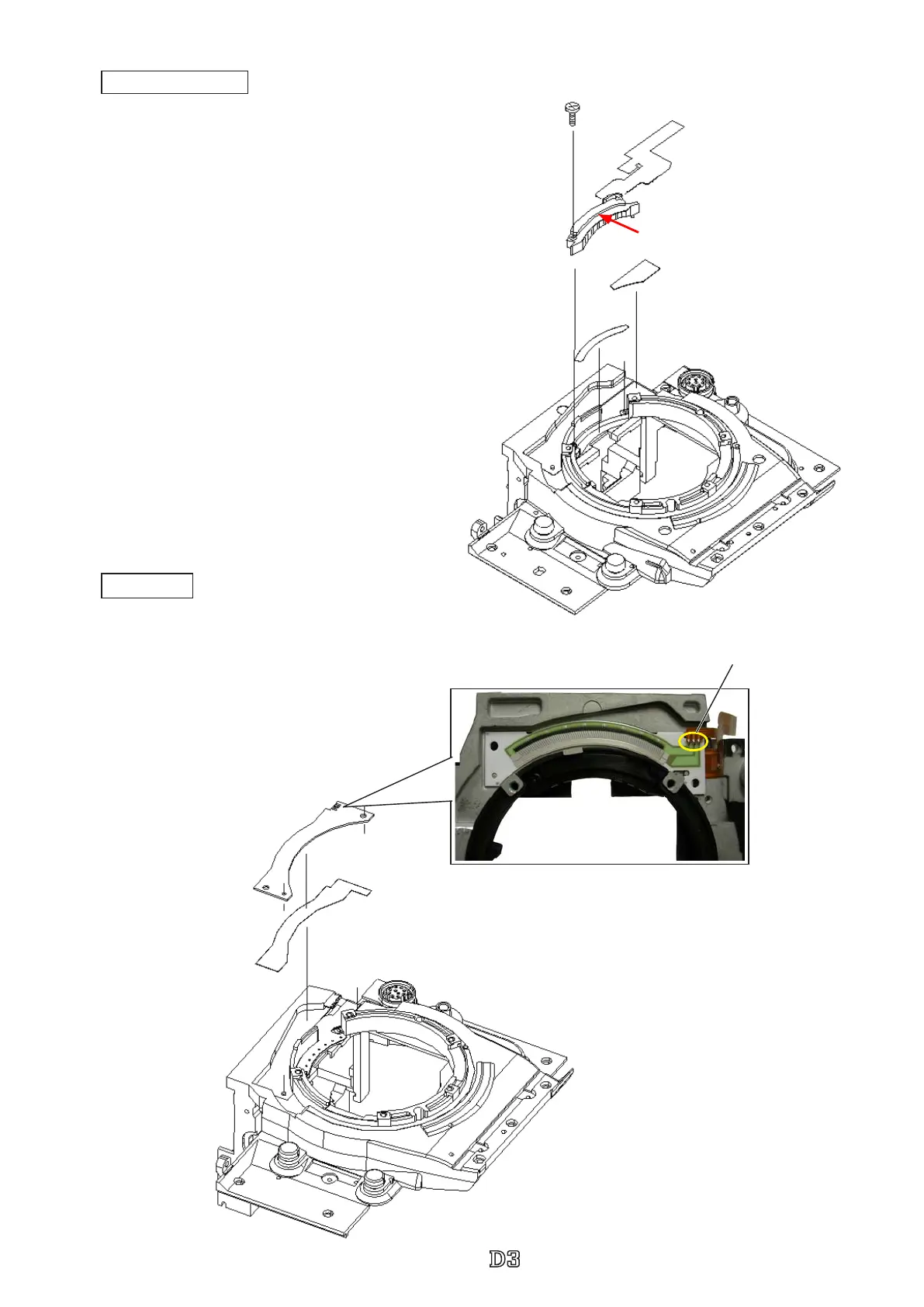

Put the F-F0 plate (#5046).
・
Make three soldering bridges.
Lens contact unit
F-F0 plate
Soldering bridge ×3
#5046
#409
#1510
#B10411
#408
#412
Positioning
・
Put the lens contact unit (#B10411) by positioning it
in the direction of the arrow.
・
Tighten the screw (#1510).
INC
