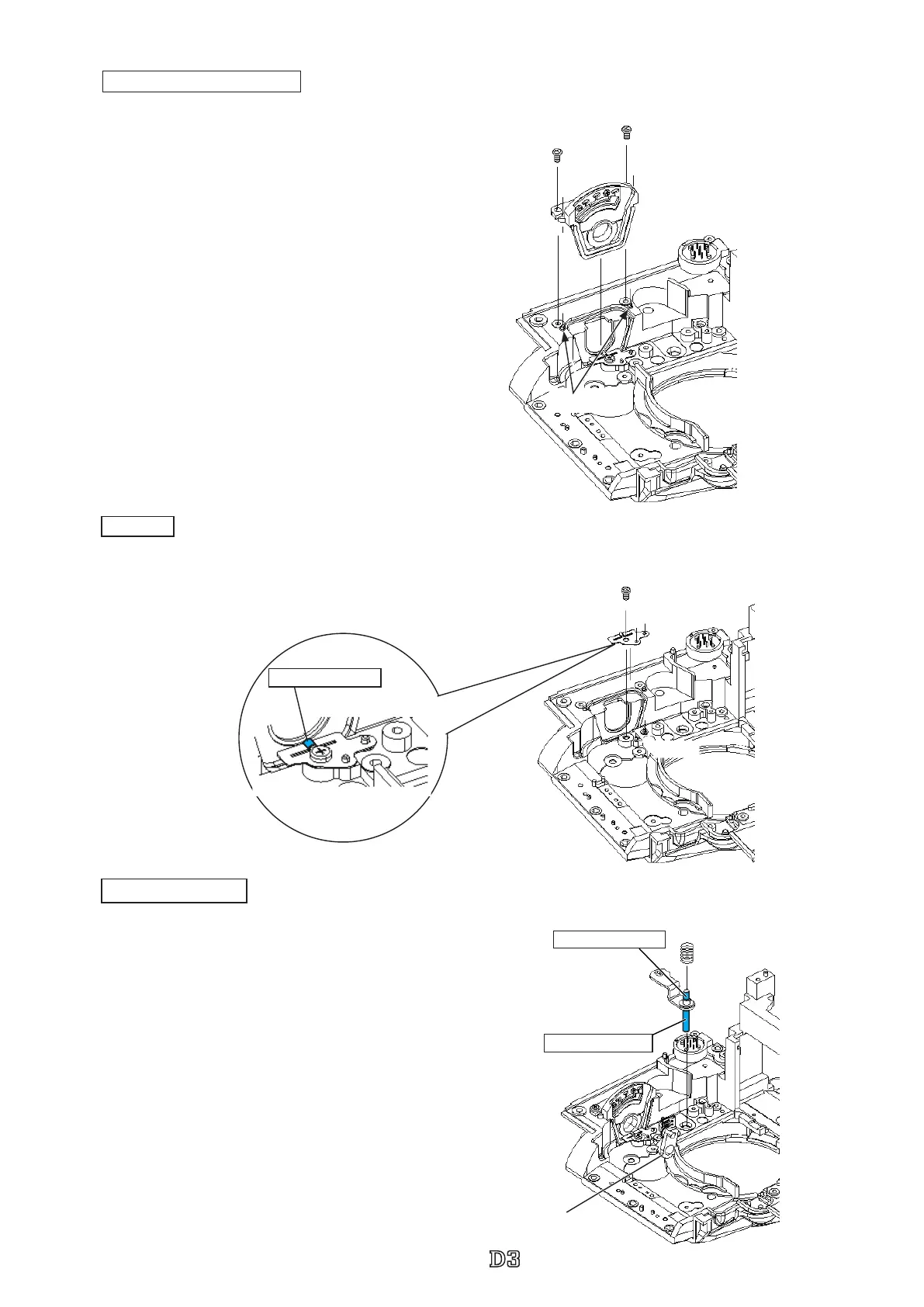

Put the AF mode change base unit (#B390).
・
Tighten two screws (#1532).
・
Attach the plate (#385).
・
Tighten the screw (#1532).
・
Put the lens release unit (#B371).
・
Attach the spring (#374).
・
Put the AF mode change unit (#B384).
AF mode change base unit
Plate
Lens release unit
Bosses×2
#1532
#385
Grease : G-92KA
#374
#B371
#B384
Grease : G-92KA
Grease : DN-352
