Nikon D3 VBA18001 - Page 44

- Ａ  ･ -
VBA18001-R.3719.A
logo�Q0440�forGraphic
070518�Gdesign�ito
#1580×3
#99
#100
#5013
Fold FPC
and t in the
boss.
#279
・

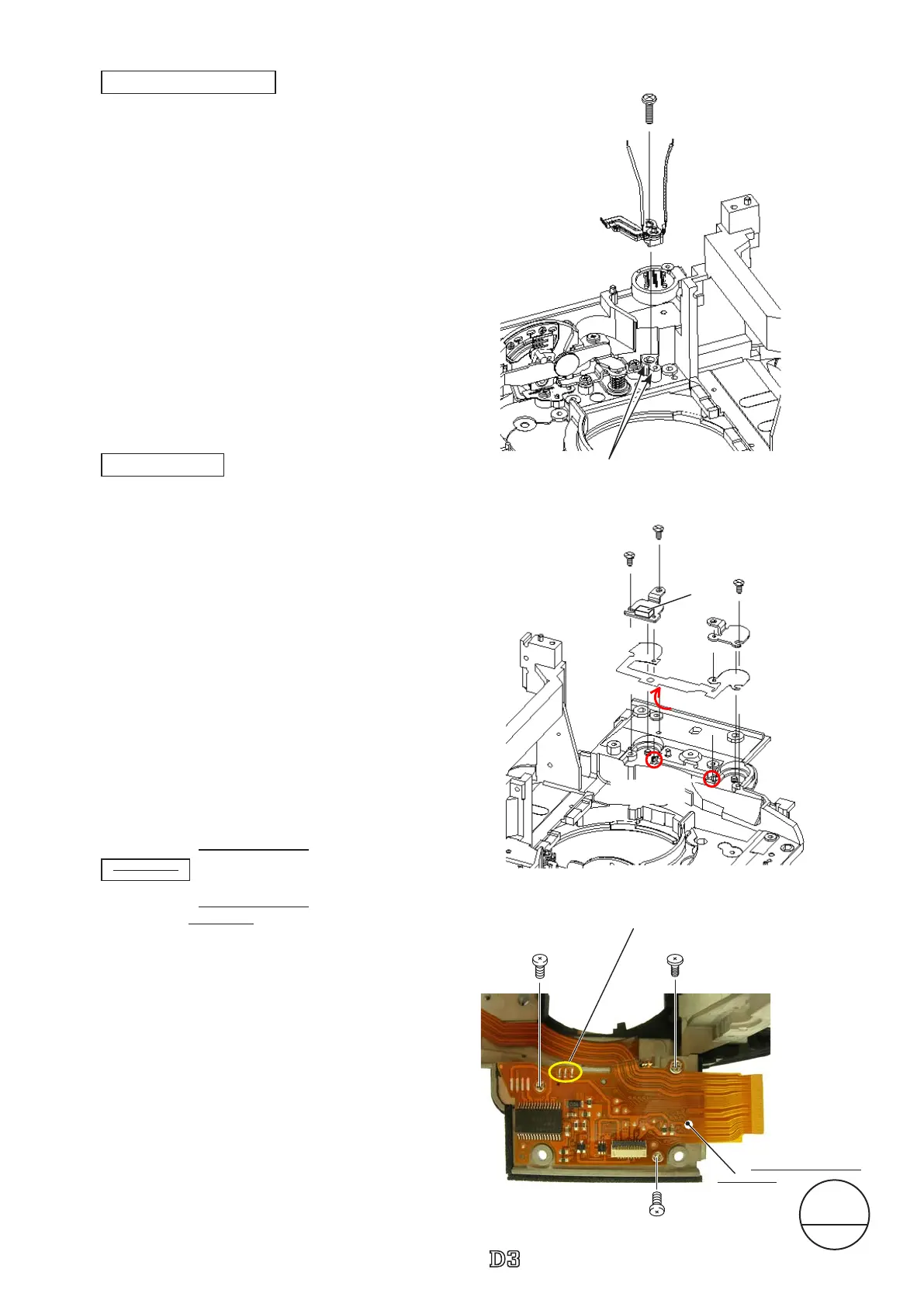

Put the function FPC (#5013).
・
Put the plate (#99) and plate (#100).
・
Tighten three screws (#1580).
・
Mount the lens release SW unit (#B10378)
by tting in the concave portion.
・
Tighten the screw (#1539).
・
Mount the TTL FPC (#5009).
・
Tighten two screws (#1508) and one screw (#1601).
・
Make three soldering bridges.
Lens release SW unit
Function FPC
TTL FPC
TTL FPC
#5009
#1601
#1508×2
Soldering bridge ×3
#1539
#B10378
Concave portion
△
(Revision) Front body FPC
△
(Revision) Front body FPC
△
(Revision)
Front body FPC
Ｍ
サービス
計画課
Dec.28.2007
Changed page
△× 3
INC
