Nikon D70 VBA10401 User Manual

VBA10401-R.3623.A
- Ａ11 ･ -

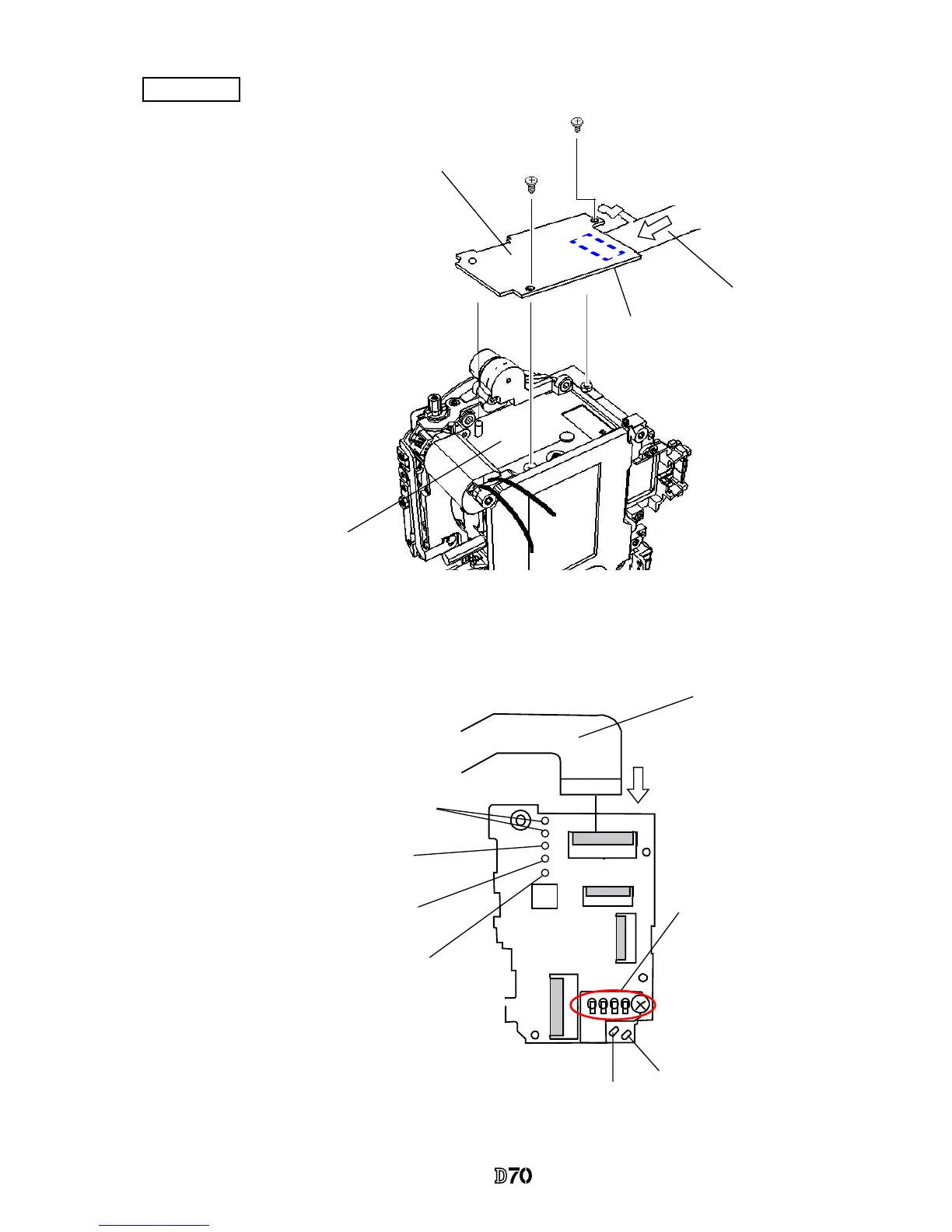

Main PCB
・
Connect the FPC (#B1004) to
the connector of the main FPC
(#B2001), then x it on the
front plate unit with 2 screws
(#658 and #632).
#B1004
#B2001
#632
#658
Connector (backside)
Front plate unit
・
Connect the front body FPC (#B1009) to
the connector. Solder each wire and make
solderign bridges for them.
Blue×2
：
Yellow
：
Black
：
Red
：
Black
：
AF motor
Soldering bridges
#B1009
Brown
：
AF motor
Top cover FPC
A/M change SW
A/M change SW
DC-DC PCB
