IC Inspection Microscope ECLIPSE L200ND / L200N Instructions
4.3 System diagram
b
L stage for MWL860 L stage P for MWL860
8 x 8 stage
8 inch wafer holder
6 inch wafer holder
Mask holder (For diascopic illumination, up to 6 inch holder)
L3N-FIAD
(for L200ND)
C-HGFIE
K CFIUW
10X
K CFIUW
10XM
K CFI
10X
K CFI
12.5X
K CFI
15X
K CFI
10XM
ND, NCB, GIF filter Pinhole Polarizer
Analyzer
Ultrawide Trinocular Tilting Eyepiece Tube L2-TT2/L2-TT2A
DIC slider
Micrometer eyepiece
Ultrafine motion unit
LV-LH50PC
12V50W
lamphouse
LV-HL50W 12V50W-LL lamp
12V50W lamp
Direct C-mount adapter
LV-TV TV adapter
C-mount adapter 0.55x
L200N/L200ND
Breath shielding plate
C-HGFIF15/30
DS-L2
DS-U2
PC
a
RS232C
USB
• Setup Tool (SDK, Setup) • NIS-Elements
USB
TV camera adapter TV camera lens
(For 1x relay lens: 1x relay lens N)
Adapter
V-T photo adapter
b
a
* For diascopic illumination, L200ND only
Trinocular Tube LV- TI

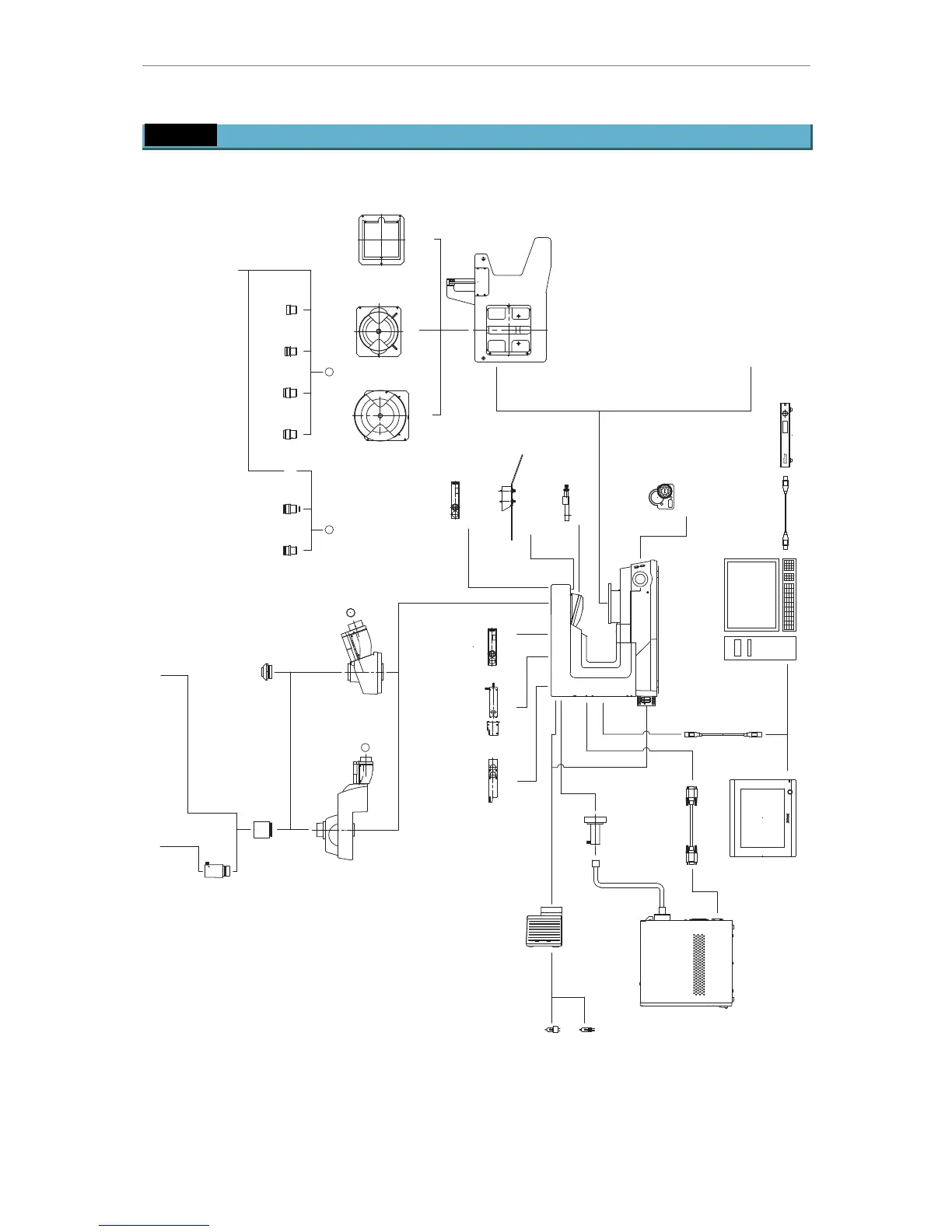

Figure-38 System diagram
