4 Assembly
34
IC Inspection Microscope ECLIPSE L200ND / L200N Instructions
For episcopic illumination
2
4
3
1

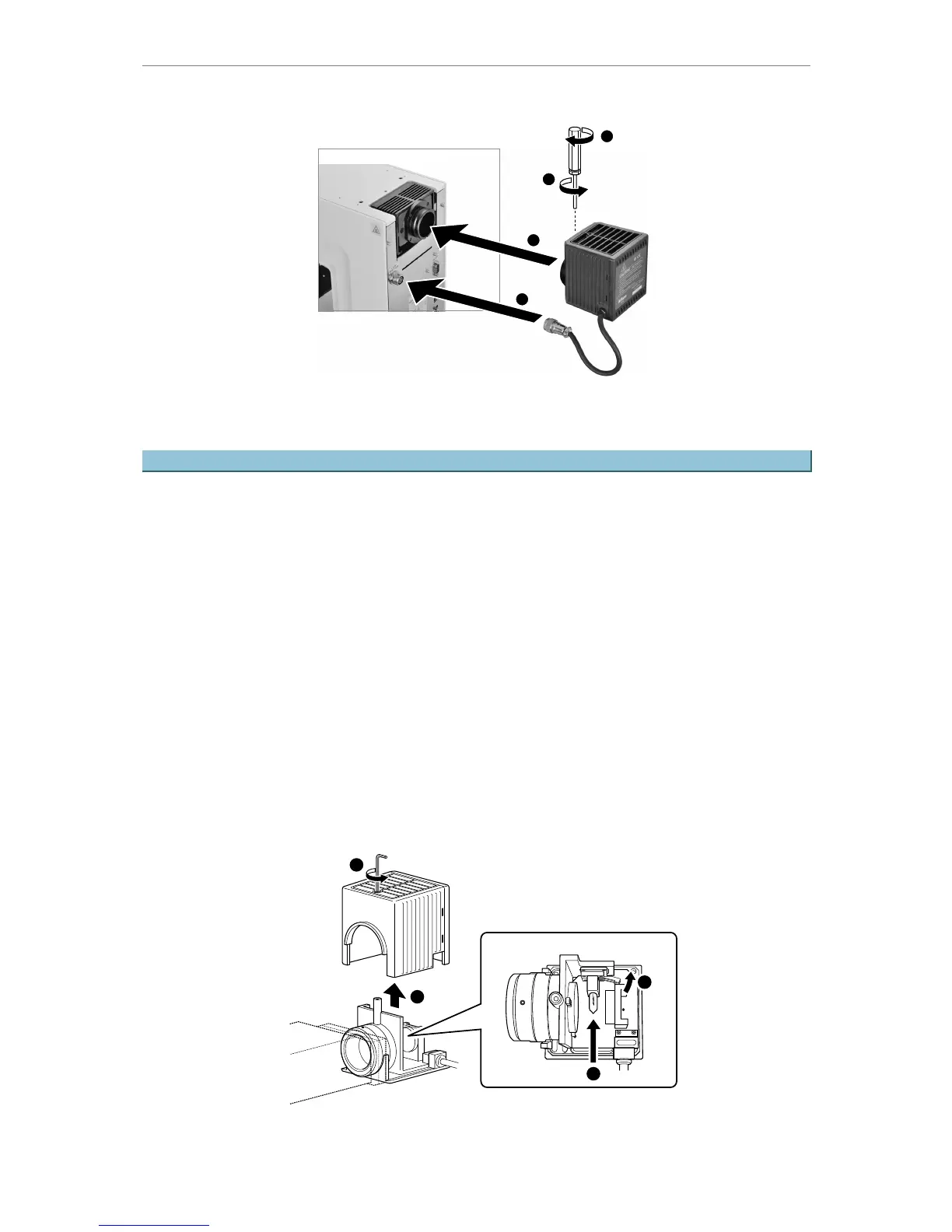

Figure-39
To remove the lamphouse, reverse the above procedure.
4.4.2 Replacing the lamp
The lamp can be removed without having to detach the lamphouse from the microscope.
Before performing the following procedures, turn off the power switch for the microscope
(flip it to the “c” side) and unplug the power cord from the wall outlet. And check that the
lamp and lamphouse have cooled down sufficiently.
1.
Loosen the lamphouse cover clamp screw using the hexagonal wrench.
2.
Remove the lamphouse cover.
3.
Push down the lamp clamp lever and remove the old lamp.
4.
With the lamp clamp lever held down, insert the electrodes of a new lamp into the pin
holes of the socket. Press the lamp to the limit, and then release the lamp clamp lever
to secure the lamp.
Be careful not to touch the glass surface with bare hands.
When releasing the lamp clamp lever, use care so that the lamp does not tilt.
5.
Close the lamphouse cover and secure it by tightening the clamp screw.
1
2
3
4
Figure-40
