1 Names of the Parts
2
IC Inspection Microscope ECLIPSE L200ND / L200N Instructions
1.2 Names of the operational parts
Analyzer slider *
1
Polarizer slider *
1
Attaching part for
the pinhole slider *
2
Prism
movement knob
Clamp for various adapters
Optical path
selection lever
Diopter
adjustment rings
Dark -field/bright-
field/fluorescent
selection lever
(for L200ND only)
(Dark-field/bright-
field selection
lever for L200N)
Aperture diaphragm lever
for diascopic illumination
(for L200ND only)
(The lever is found
under the substage.)
Fine focus knob
Coarse focus knob
Coarse torque
adjustment ring
Stage fine movement
knob for Y-axis
Stage fine movement
knob for X-axis
Stage coarse
movement lever
Coarse movement
ON switch
Coarse movement
OFF switch
Episcopic/Diascopic illumination
selection switch
Episcopic aperture diaphragm control buttons
Nosepiece rotation
buttons
Brightness control dial
Pilot lamp
(Lights when the power is ON.)
DIC slider *
3
Prism
selection
knob
*1: For DIC microscopy or episcopic bright-field simplified polarization microscopy
*2: For pinhole microscopy, insert the pinhole slider here.
*3: For DIC microscopy

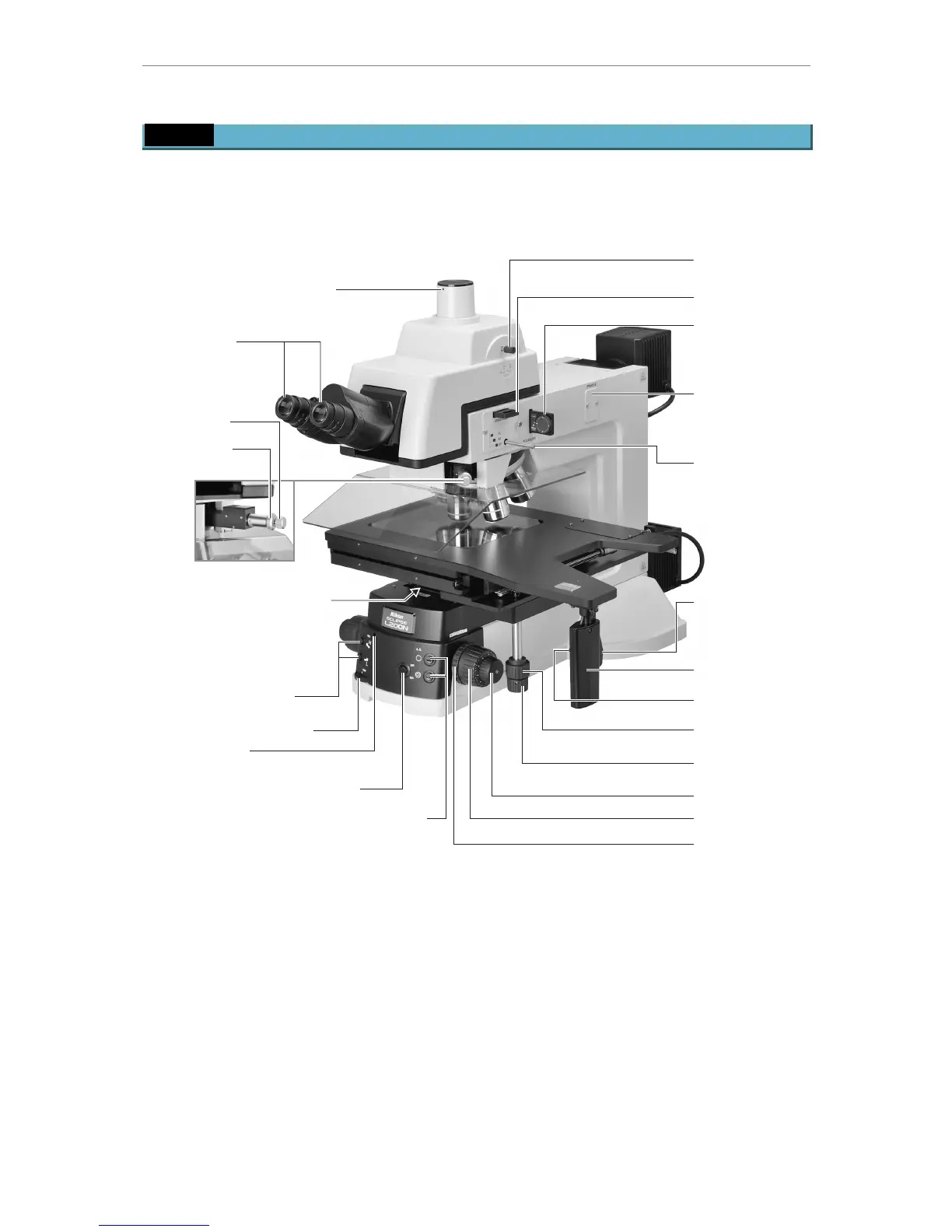

Figure-5 Names of the operational parts (1)
