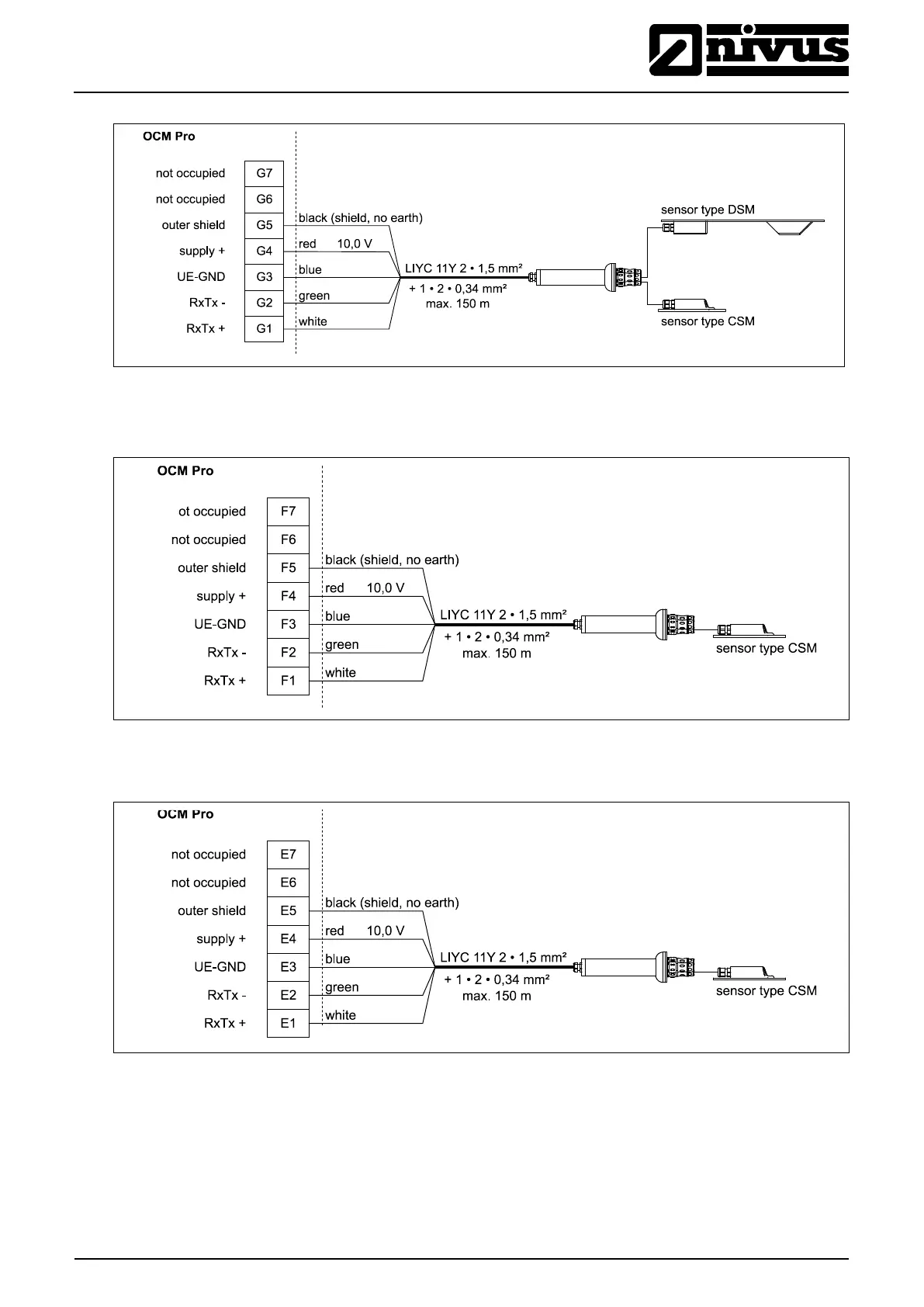

Fig. 7-6 Connection electronic box Type EBM with water-ultrasonic
sensor Type CSM and air-ultrasonic sensor Type DSM to Type
S4W0 / M4W0
Fig. 7-7 Connection 2, electronic box Type EBM with water-ultrasonic
sensor Type CSM to Type M4W0
Fig. 7-8 Connection 3, electronic box Type EBM with water-ultrasonic
sensor Type CSM to Type M4W0
