OCM Pro CF
page 36 OCM Pro CF - Rev. 09 as of 07.06.2016

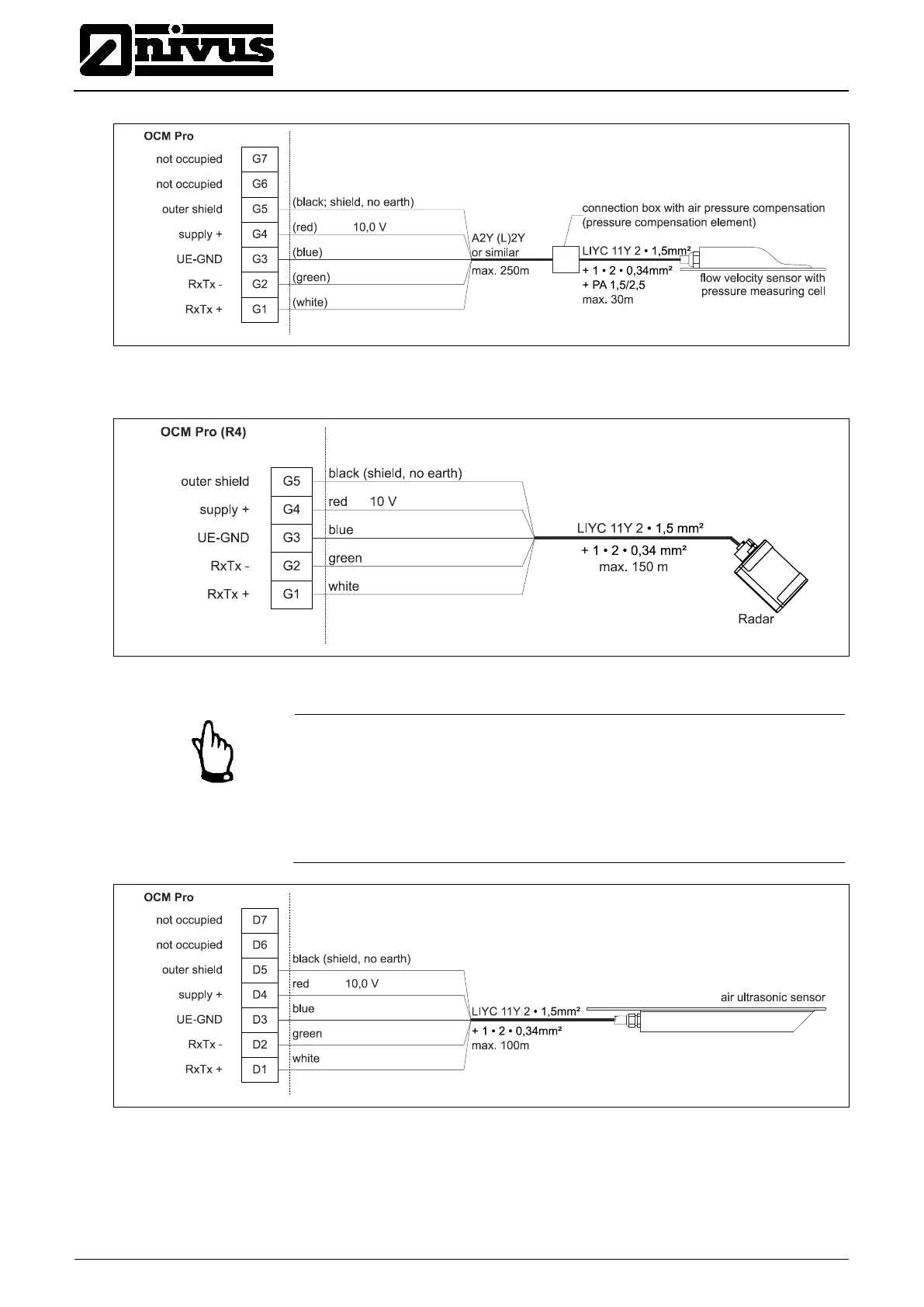

Fig. 7-9 Connecting a flow velocity sensor with integrated pressure
measurement cell to type W0
Fig. 7-10 Connecting an OFR flow velocity sensor to Type R4W0
Note
The pressure compensation element serves as connection socket for cable
extension at the same time. Please observe not to exceed the maximum cable
length of 135 m (443 ft.) in Ex areas and 250 m (750 ft.) in Non-Ex areas be-
tween sensor and transmitter by taking the maximum permissible resistance
into account.
Fig. 7-11 Connecting the air-ultrasonic sensor type LUS to type
M4W0 / S4W0
