OCM Pro CF
page 44 OCM Pro CF - Rev. 09 as of 07.06.2016

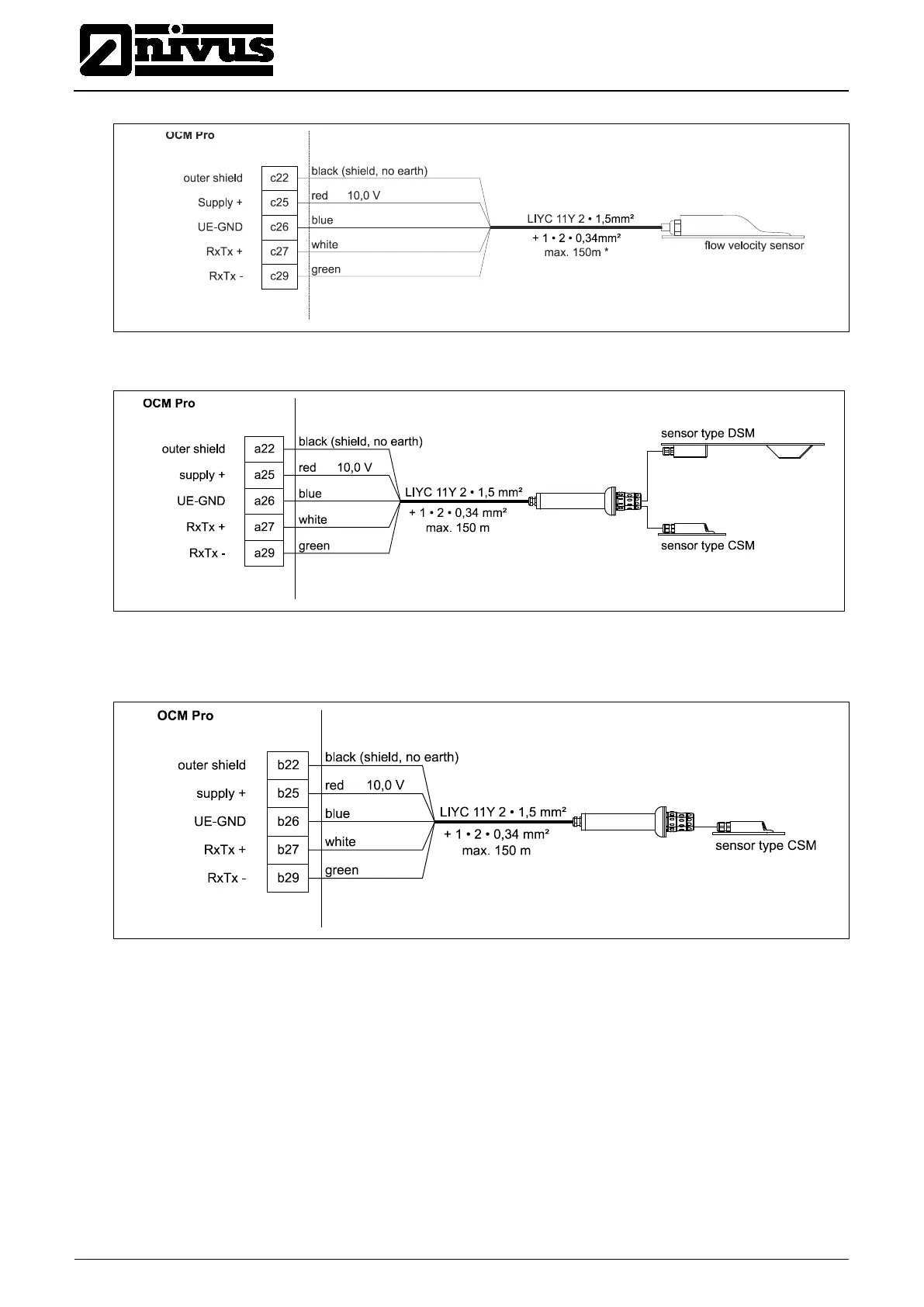

Fig. 7-23 Connecting a third flow velocity sensor to type M4F0
Fig. 7-24 Connection electronic box Type EBM with water-ultrasonic
sensor Type CSM and air-ultrasonic sensor Type DSM to Type
S4F0 / M4F0
Fig. 7-25 Connection 2, electronic box Type EBM with water-ultrasonic
sensor Type CSM to Type M4F0
