OCM Pro CF
OCM Pro CF - Rev. 09 as of 07.06.2016 page 45

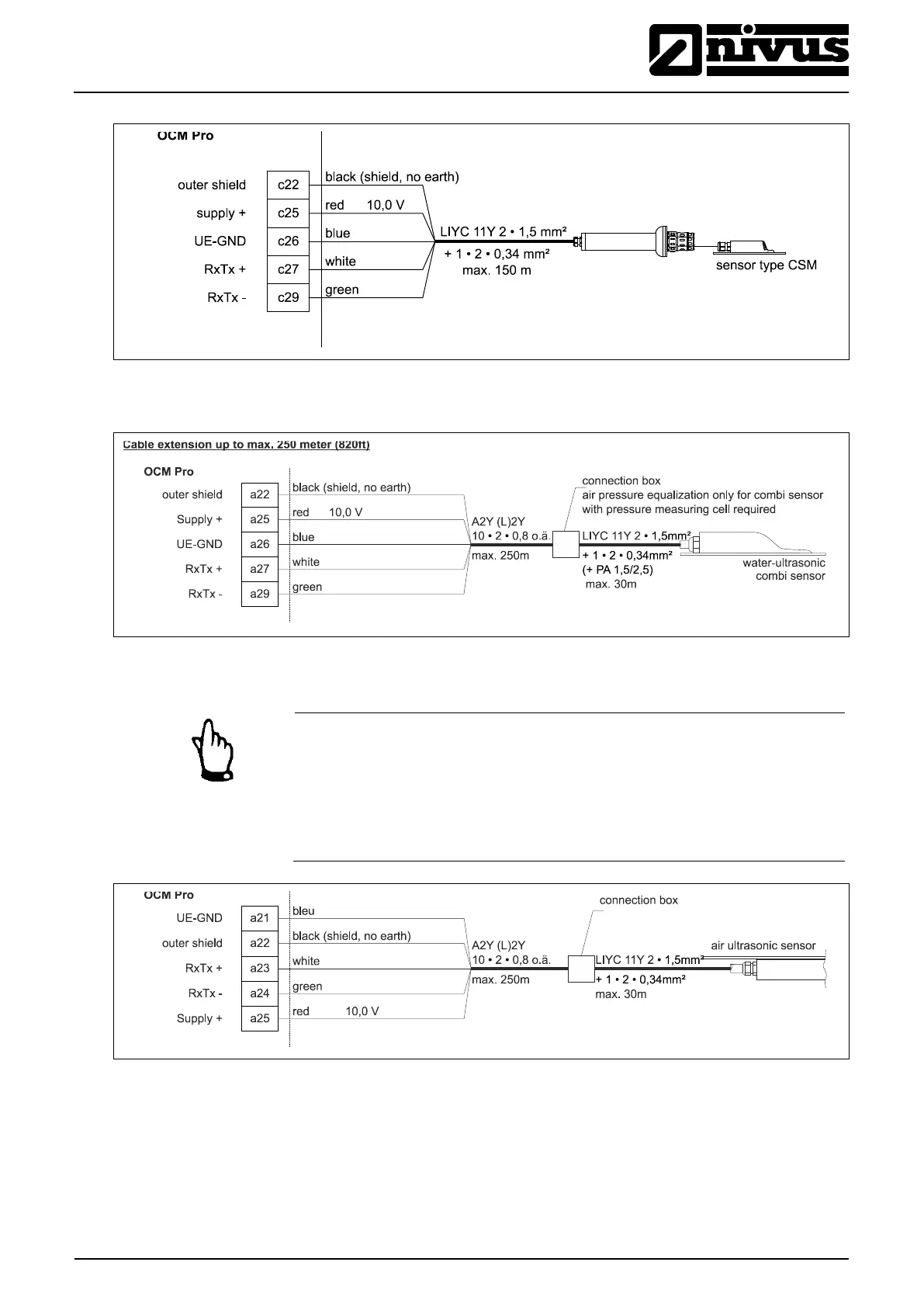

Fig. 7-26 Connection 3, electronic box Type EBM with water-ultrasonic
sensor Type CSM to Type M4F0
Fig. 7-27 Connecting a flow velocity sensor with integrated pressure
measurement cell to type F0
Note
The pressure compensation element serves as connection socket for cable
extension at the same time.
Please note that the maximum cable length between sensor and transmitter
(considering the maximum permissible line resistance) shall not exceed 135 m
in Ex areas. The maximum cable length in non-Ex areas is 250 m.
Fig. 7-28 Connecting an air-ultrasonic sensor type OCL to type F0
If the level measurement is carried out by a 2-wire probe (NivuBar, NivuCompact
2-wire echo sounder or similar) which is supplied by the OCM Pro, please follow
the wiring diagram below:
