OCM Pro CF
page 96 OCM Pro CF - Rev. 09 as of 07.06.2016

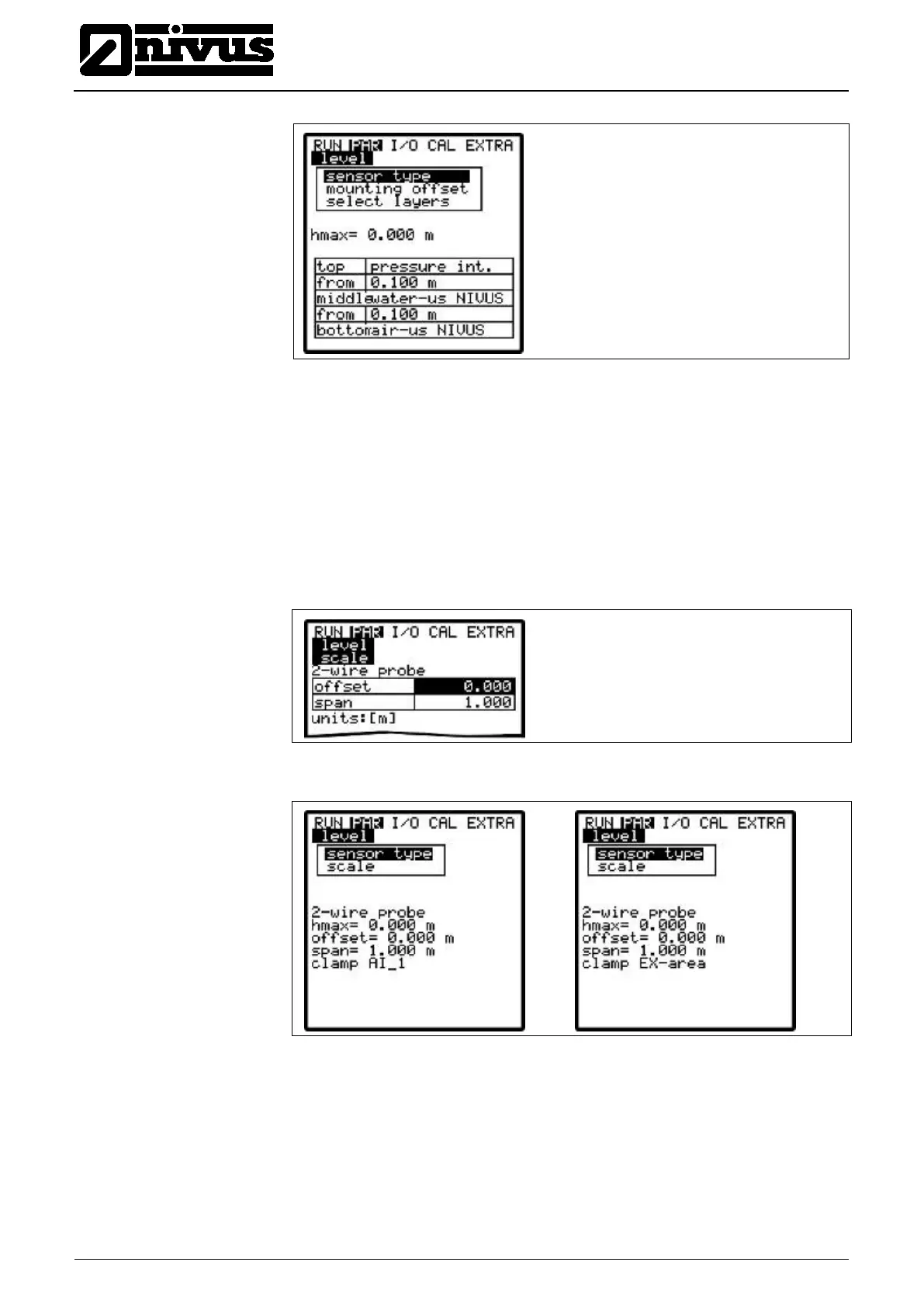

Fig. 9-48 Overview on level sensors
Depending on the sensor type selected, a fixed value or a measurement offset
as well as the measurement span according to the input signal is entered here.
Offset: this value is ad
ded to the level measurement value. Negative entries are
possible as well, which can be used to adjust values from the 2-wire probe.
Span: the measurement span (equal to 20 mA from the OCM Pro CF analog
input) shall be adjusted to the span of the analog output of the 2-wire probe
used.
Fig. 9-49 2-wire sensor settings
Fig. 9-50 Screen at 2-wire sensor Ex/non-Ex
