Nokia 7210 - 2.4 Hardware Description; 2.4.1 AC Chassis

System Overview
16
7210 SAS-D CHASSIS INSTALLATION GUIDE
3HE 10087 AAAA TQZZA Edition 01 Issue: 08
2.4 Hardware Description
The chassis is available with either an AC power supply (Figure 1) or DC power
supply (Figure 3). The ETR chassis variant is also available with either an AC power
supply (Figure 2) or a DC power supply (Figure 4).
2.4.1 AC Chassis

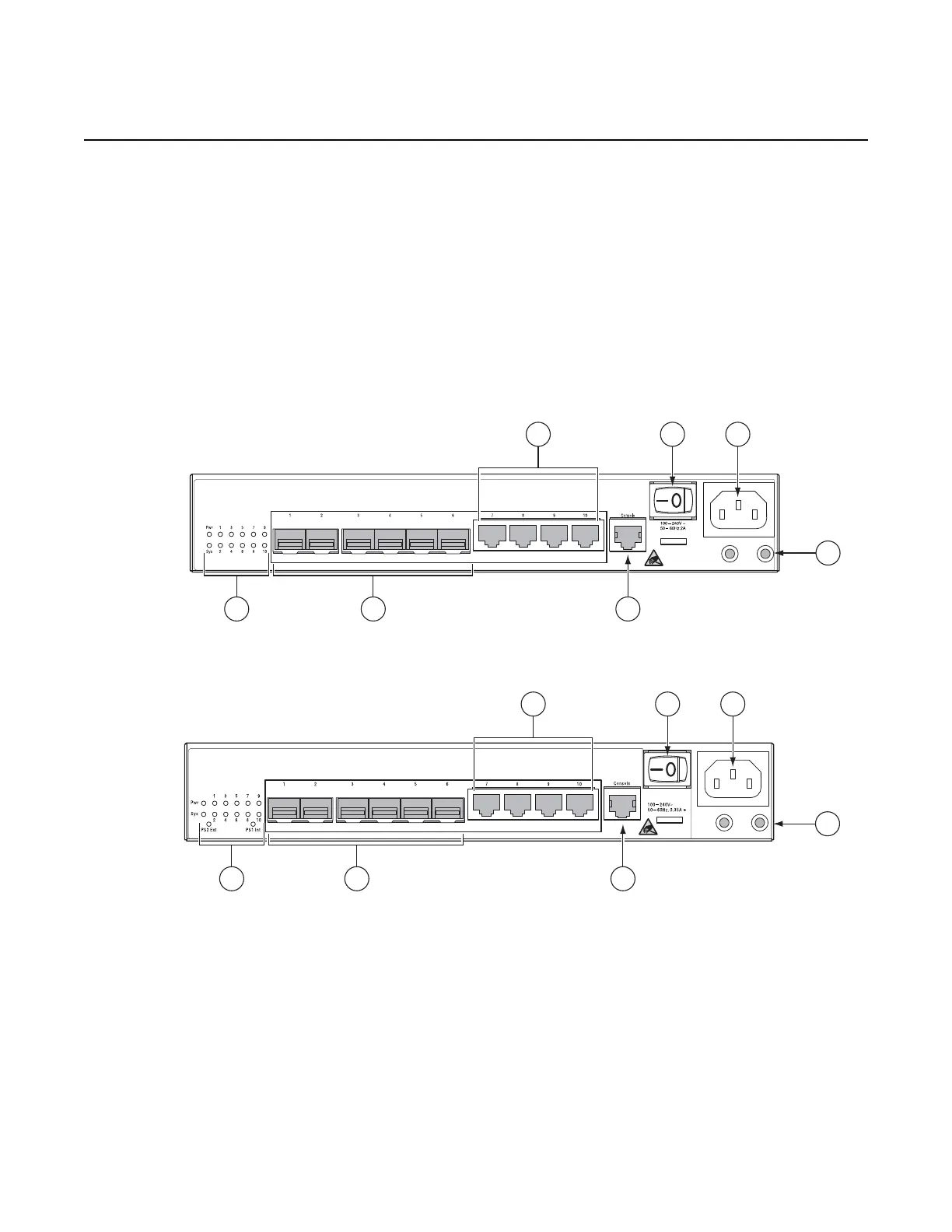

Figure 1 7210 SAS-D AC Chassis Front Panel
Figure 2 7210 SAS-D ETR AC Chassis Front Panel
Table 1 lists the front panel features of the 7210 SAS-D AC chassis variants.
7210SASac_0001A
5 63
4
1
7
2
7210SASac_0001B
5 63
4
1 2
7
