2.4.9 System and Port LEDs
The system and port LEDs are located on the left-hand side of the front panel. See
Figure 8 and Table 6 for the location of the system and port LEDs and Table 7 for
LED behavior.

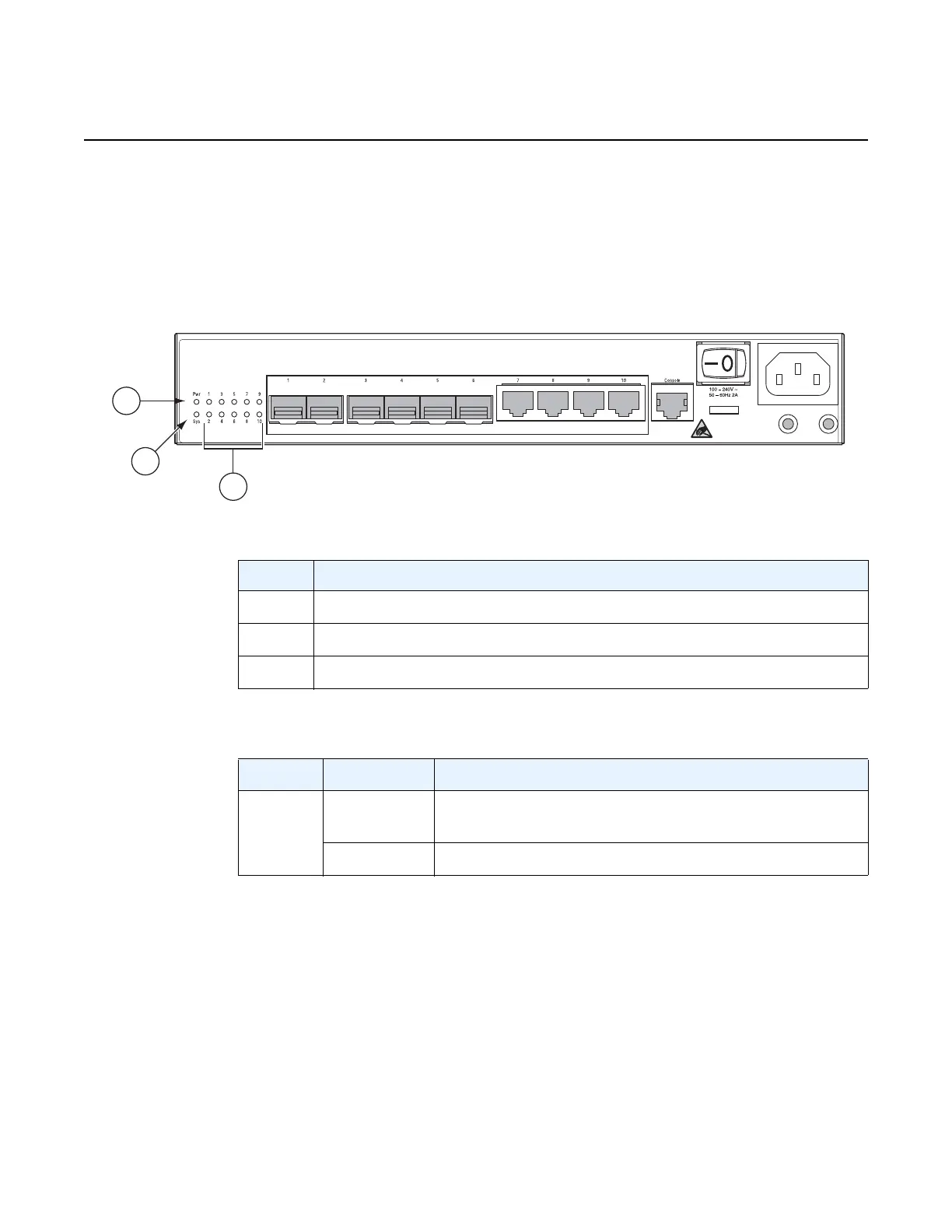

Figure 8 Location of the System and Port LEDs
7210SASac_0001
1
2
3
Table 6 Location of System and Port LEDs
Key Description
1 Power LED (see Table 3)
2 System status LED (see Table 7)
3 Port LEDs (see Table 8)
Table 7 System LED Behavior
LED Condition Status
Sys Green Indicates that the system has completed boot phase
and is running normally.
Amber Indicates that the device is in an alarm state
