7210 SAS-D CHASSIS INSTALLATION GUIDE Installing the Chassis
Issue: 08 3HE 10087 AAAA TQZZA Edition 01 33
3.2.2 Desktop or Shelf Mounting
Before starting this procedure, ensure you have the following:
• four adhesive feet (provided with the 7210 SAS-D)
• an available grounding point near the installation location
To desktop-mount or shelf-mount the 7210 SAS-D:
Step 1. Attach the four adhesive feet to the bottom of the first switch, as shown
in Figure 13.

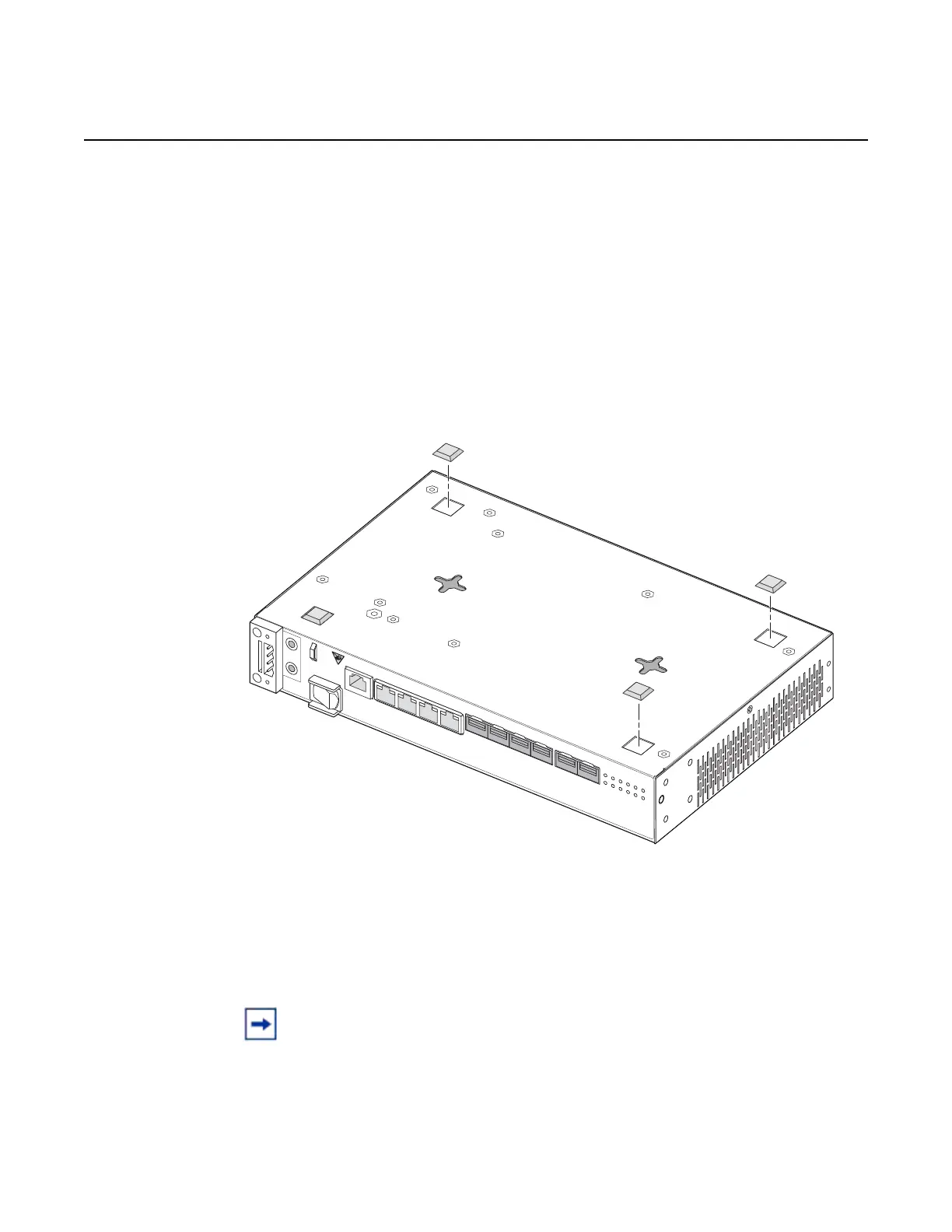

Figure 13 Attaching the Adhesive Feet
Step 2. Set the device on a flat surface near an external power source, making sure
there are at least 3 in. (7.62 cm) of space on the front, sides, rear and top
for proper air circulation.
Note: The unit should not be placed on any heat generating surface. Do not stack
units.
