7210 SAS-D CHASSIS INSTALLATION GUIDE System Overview
Issue: 08 3HE 10087 AAAA TQZZA Edition 01 23

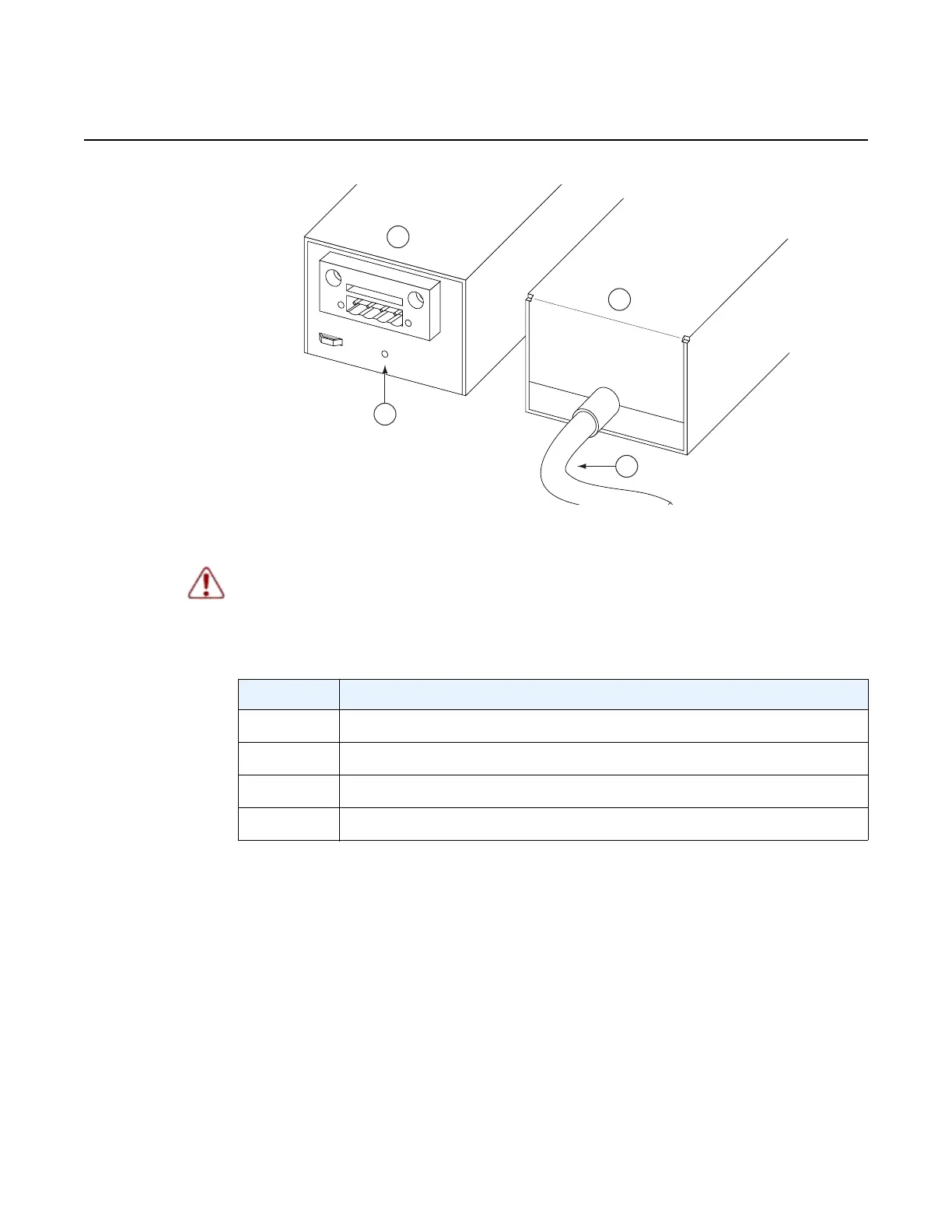

Figure 7 External DC Power Supplies
Warning: Although the system provides four input pins to connect a DC power source, use
the two left-most pins only. Pins 3 and 4 are not connected or recommended for use.
Table 5 External DC Power Supply Description
Key Description
1 Front view of the external DC power supply
2 Rear view of the external DC power supply
3 Captive screw
4 Power cable to the 7210 SAS-D chassis
