Built-In Four-Port 10/100 Ethernet Interface
Nokia EM5400 IP Security Platform (IP260 and IP265 Appliances) Installation Guide 49
The following figure shows the pin assignments for the cable. The RJ-45
cable output connector is numbered from left to right, with the copper tabs
facing down and toward you.

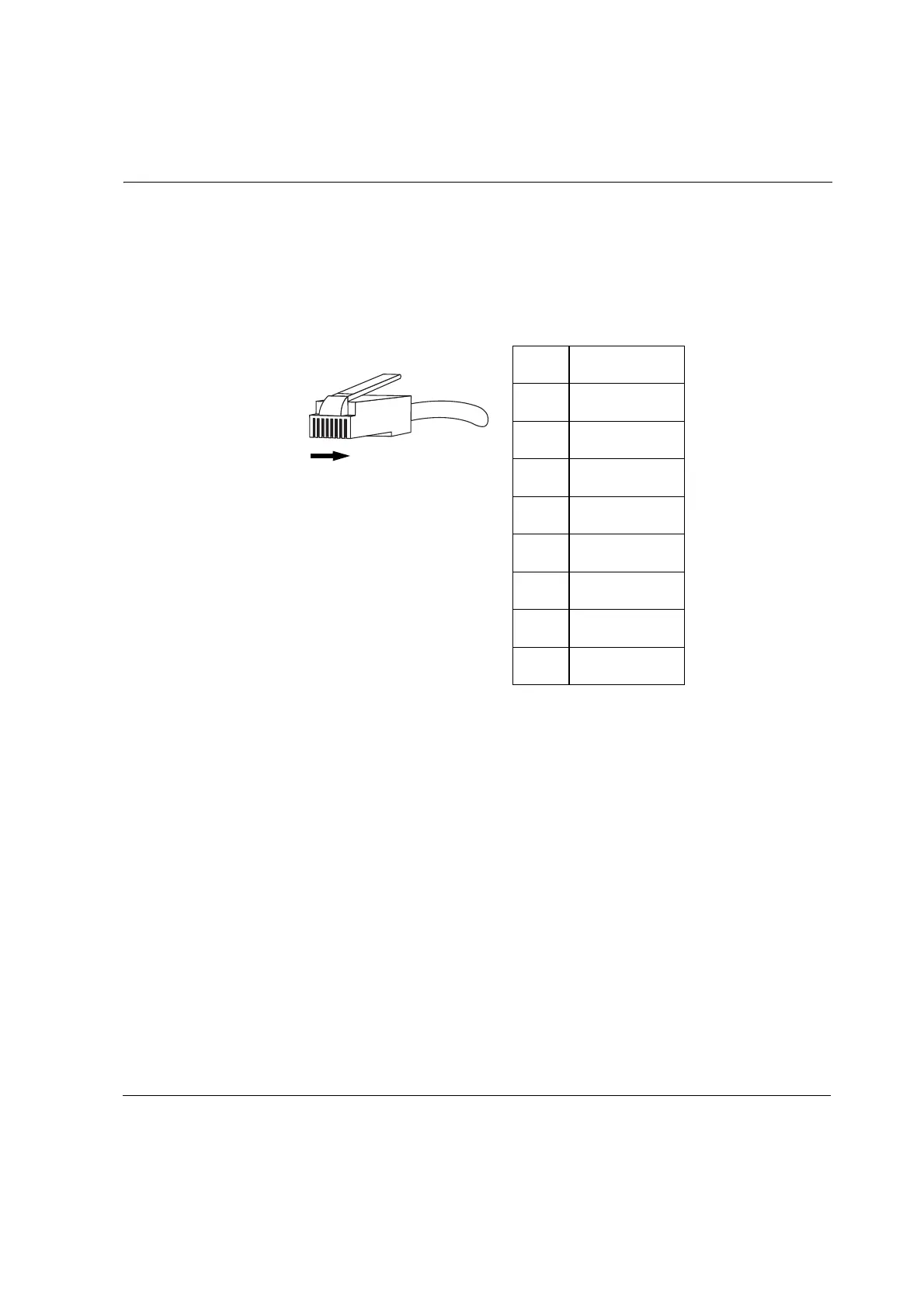

Figure 10 Output Connector for the Ethernet Cable
00270.1a
1
Pin# Assignment
1TX
2TX
3RX
4
5
6RX
7
8
8
