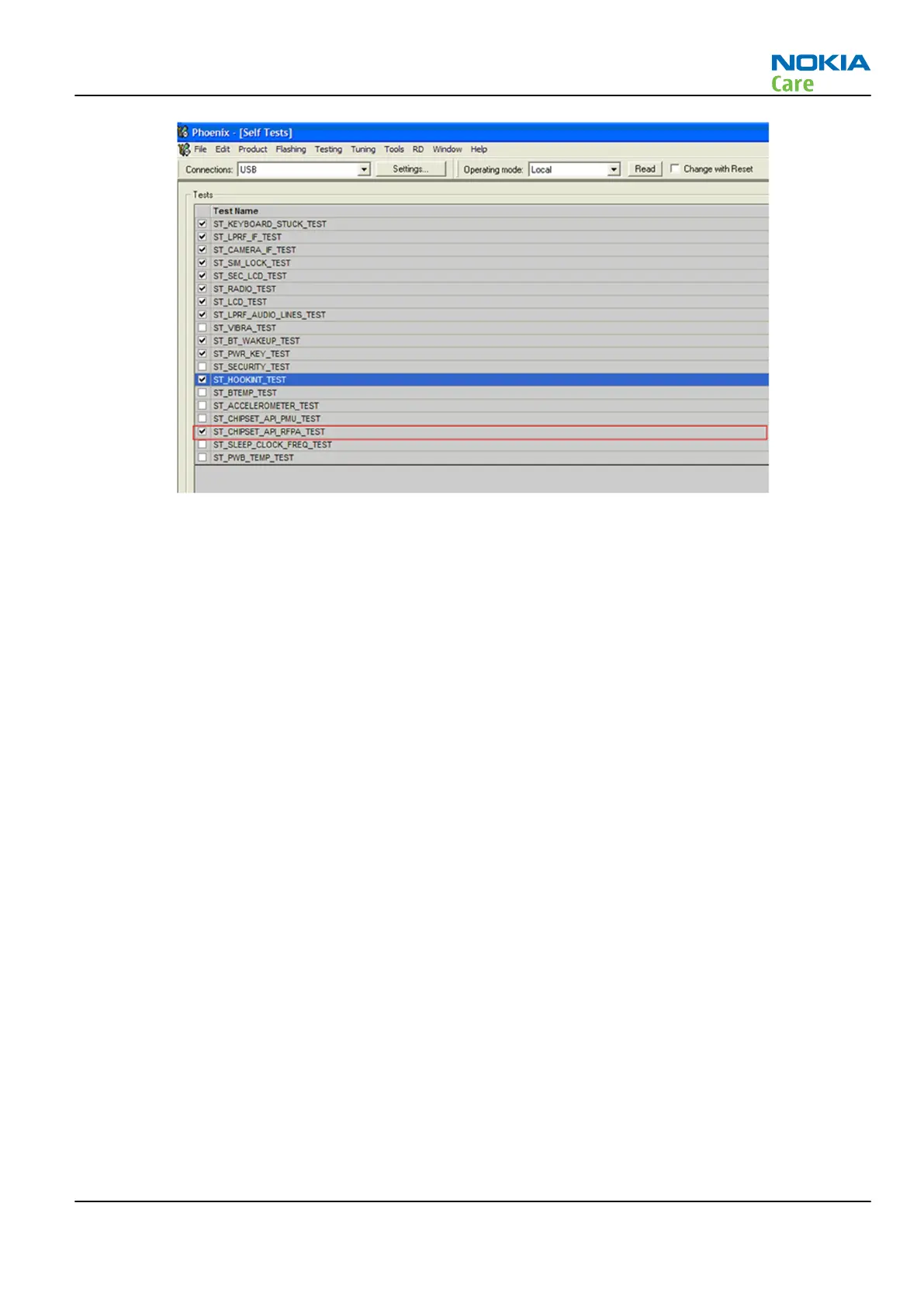

3. Click on START button to execute
ST_CHIPSET_API_RFPA_TEST.
If the Results column shows “Pass”, it means all paths from BB/RF IC chips to Front-end module are
continuity without any unconnected path.
If the Results column shows “Fail”, follow the Troubleshooting flowchart.
RM-497
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 – 21
Copyright © 2010 Nokia. All rights reserved.
